10.4.2.3 Switching signals for Y-channel
The DIGIFORCE
®
9311 sets a Y-channel switching signal when the reading on the Y-channel exceeds
the specified Y-channel value. If the reading falls below the set value, the DIGIFORCE
®
9311 resets the
signal back to its default status. The signal can be set/reset in measurement mode when the
DIGIFORCE
®
9311 is in standby (ready to measure) and during an active measurement.

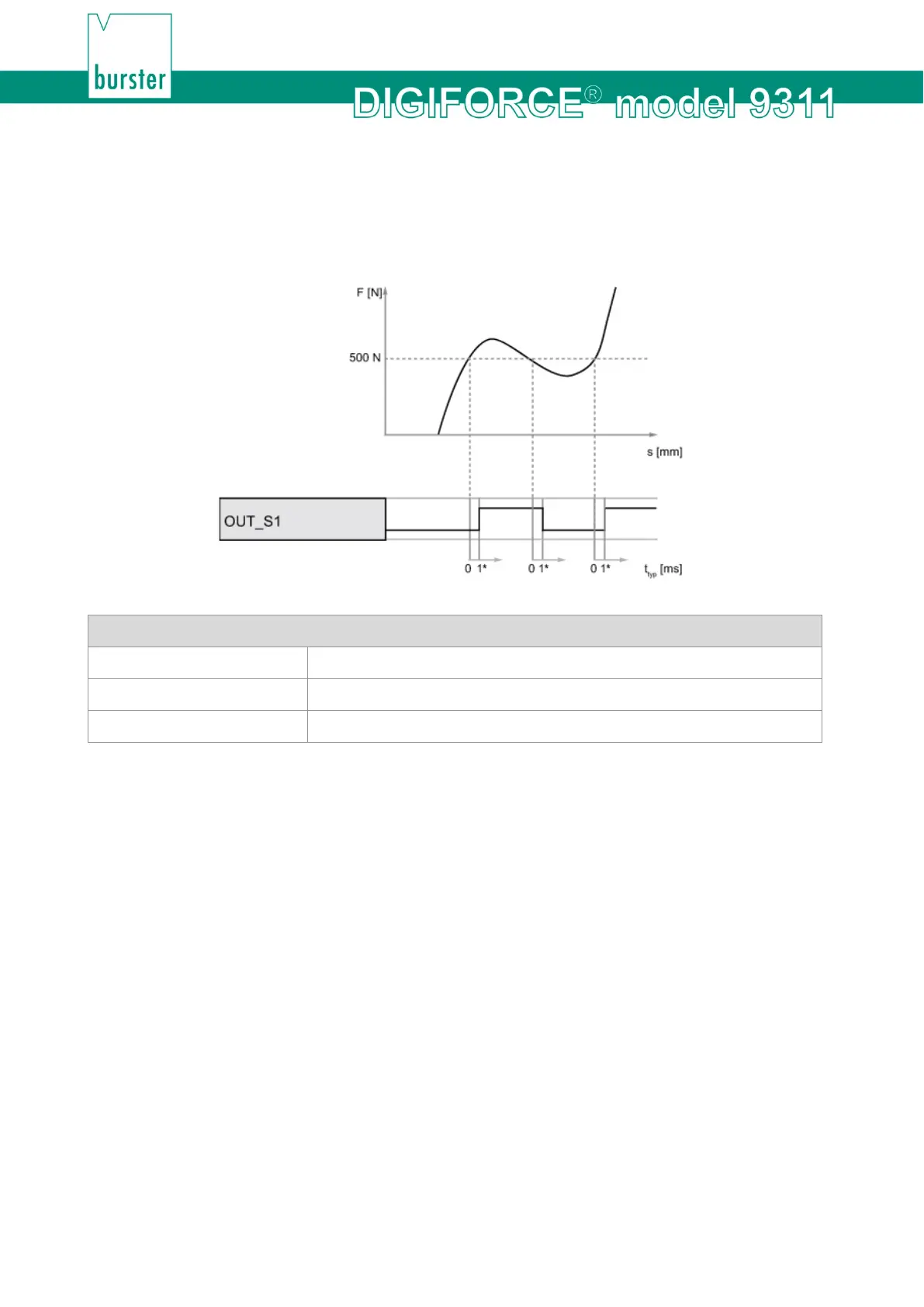

Diagram 95: Switching signals for Y-channel
"OUT_S1" configuration
Channel Y
Value 500 N
Active high
*Low-frequency low-pass filtering (filter value in channel settings) may extend the typical delay shown.
