13 | Dimensions sheets
/ 44
0870S03226_VRD 2072-3108_-
Dimensions of the vacuum system DUPLEX VRD 2072
(water-cooled version)

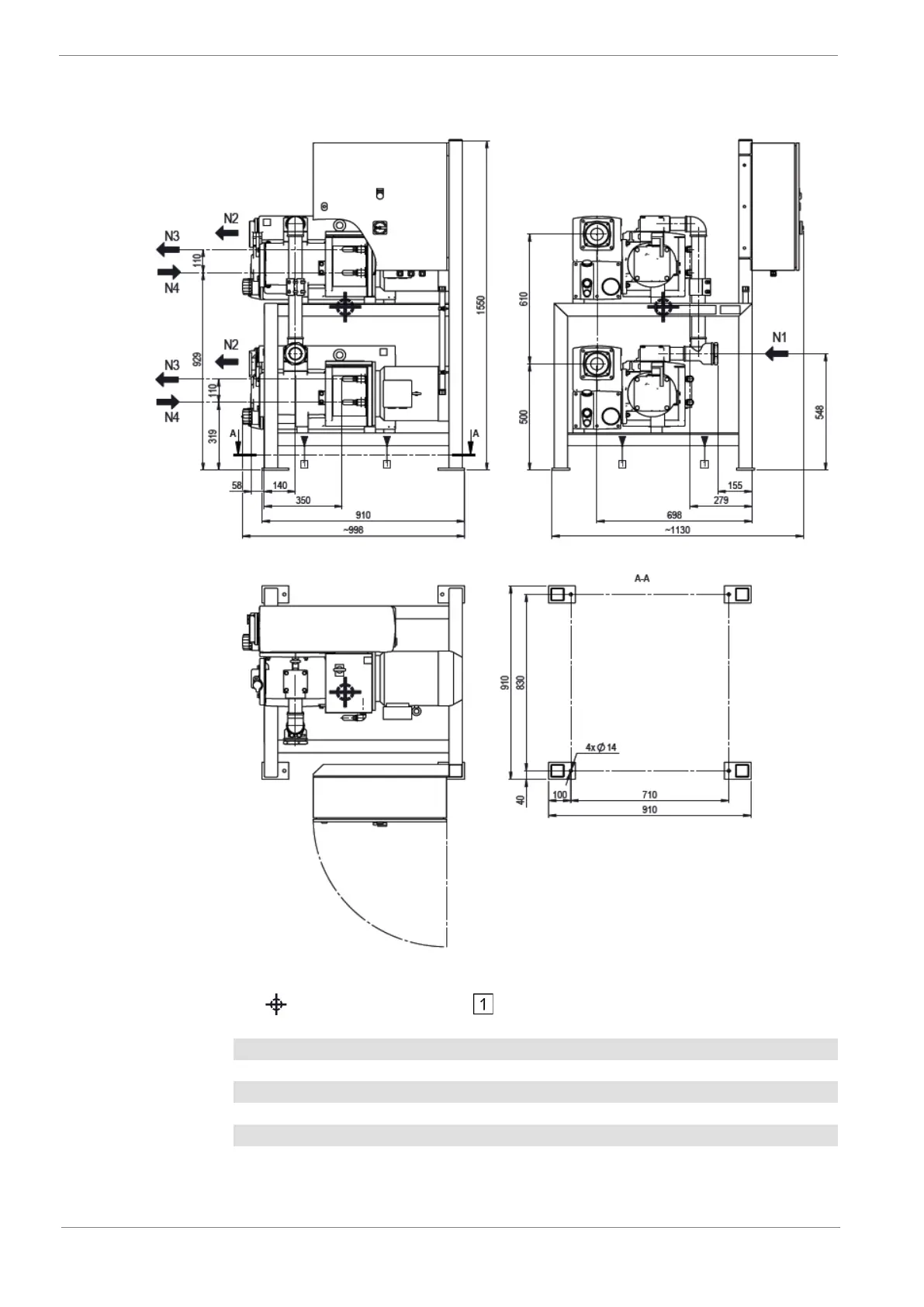

Fig. 19 : Dimensions of the vacuum system DUPLEX VRD 2072 (water-cooled version)
Center of gravity
Lifting point
Pos. Designation Connection Standard
N1 Gas inlet G 3“ / G 2“, female thread ISO 228-1
N2 Gas outlet G 2", female thread ISO 228-1
N3 Cooling water drain Hose connection, outer Ø 19 mm
N4 Cooling water supply Hose connection, outer Ø 19 mm
Tab. 2: Connections of the vacuum system DUPLEX VRD 2072 (water-cooled version)
