13 | Dimensions sheets
0870S03226_VRD 2072-3108_-0000_IM_en
35 /
44

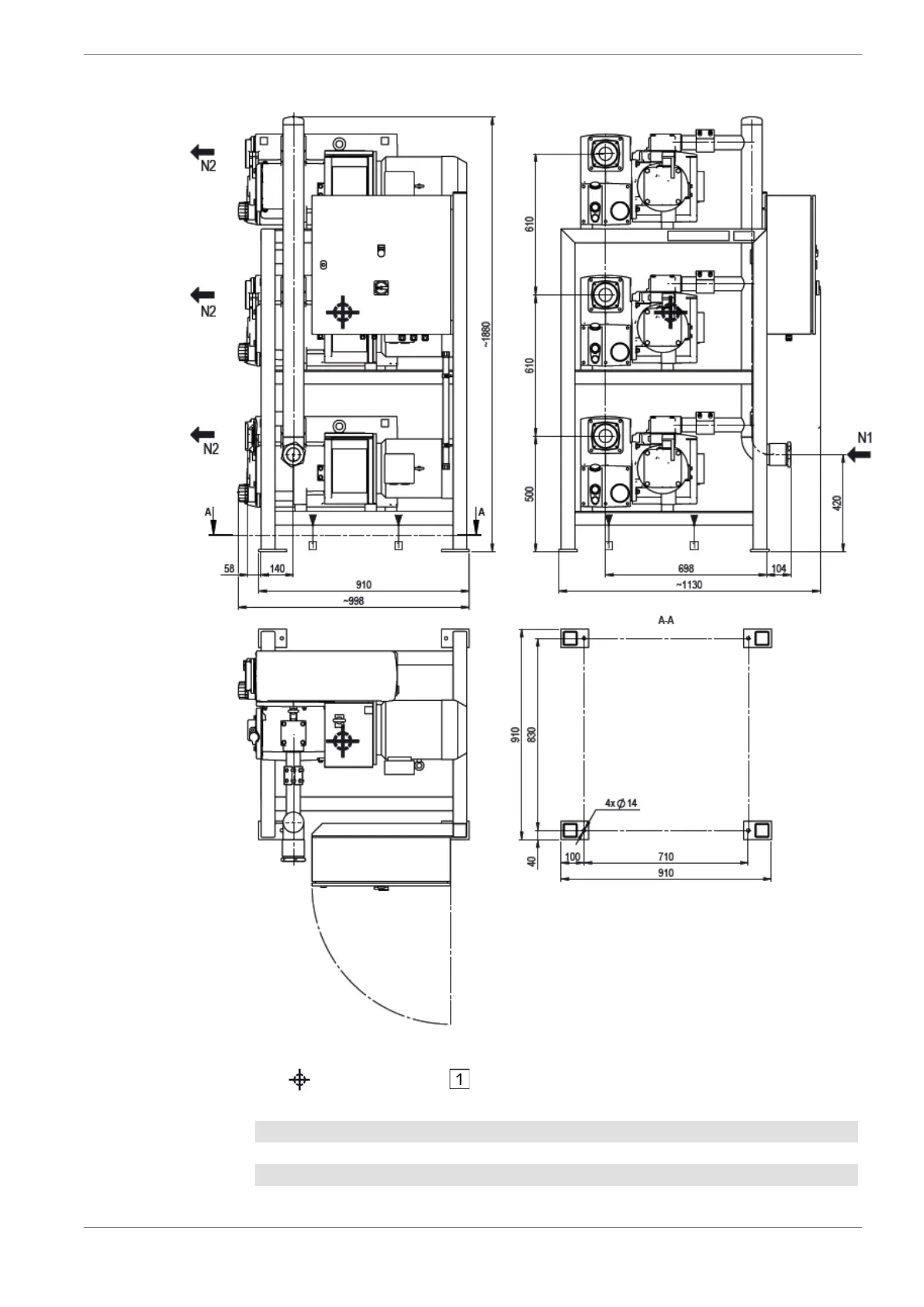

Dimensions of the vacuum system TRIPLEX VRD 3108
Fig. 20 : Dimensions of the vacuum system TRIPLEX VRD 3108
Center of
gravity
Lifting point
Pos. Designation Connection Standard
N1
Gas inlet
G 3“ / G 2“, female thread
ISO 228-1
N2 Gas outlet G 2", female thread ISO 228-1
Tab. 3: Connections of the vacuum system TRIPLEX VRD 3108
