13 | Dimensions sheets
/ 44
0870S03226_VRD 2072-3108_-
Dimensions vacuum system DUPLEX VRD (connecting line)

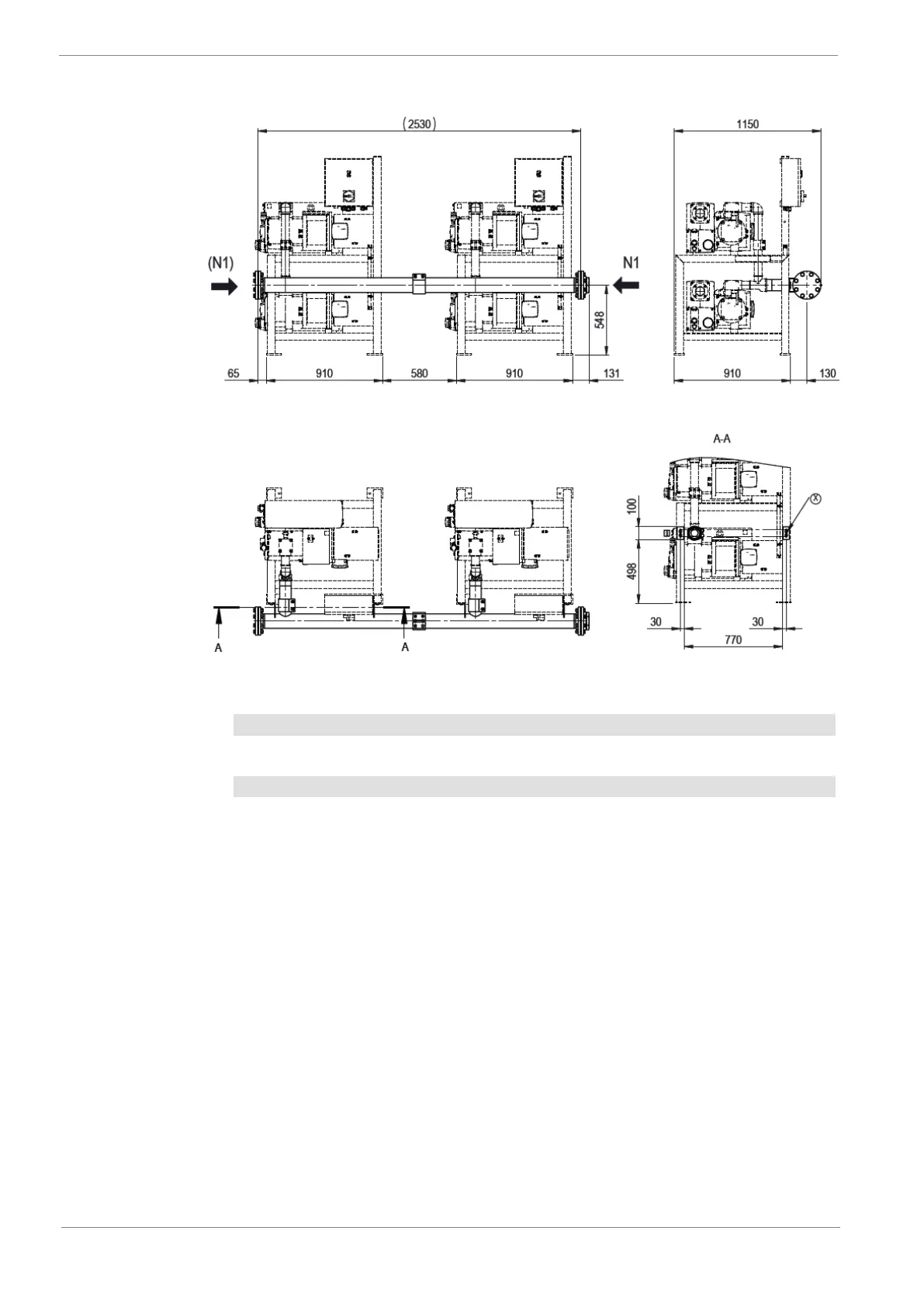

Fig. 21 : Dimensions vacuum system DUPLEX VRD (connecting line)
Pos. Designation Connection Standard
N1 Gas inlet
DN 100 PN 16,
G 3", female thread
EN 1092-1 / 11
ISO 228-1
N2 Gas outlet
Tab. 4: Connections of the vacuum system DUPLEX VRD (connecting line)
Detail X: The holes on the base frame for attaching the connecting line must be done by
the customer. Four blind rivet nuts (M10) are required per base frame.
