13 | Dimensions sheets
0870S03226_VRD 2072-3108_-0000_IM_en
37 /

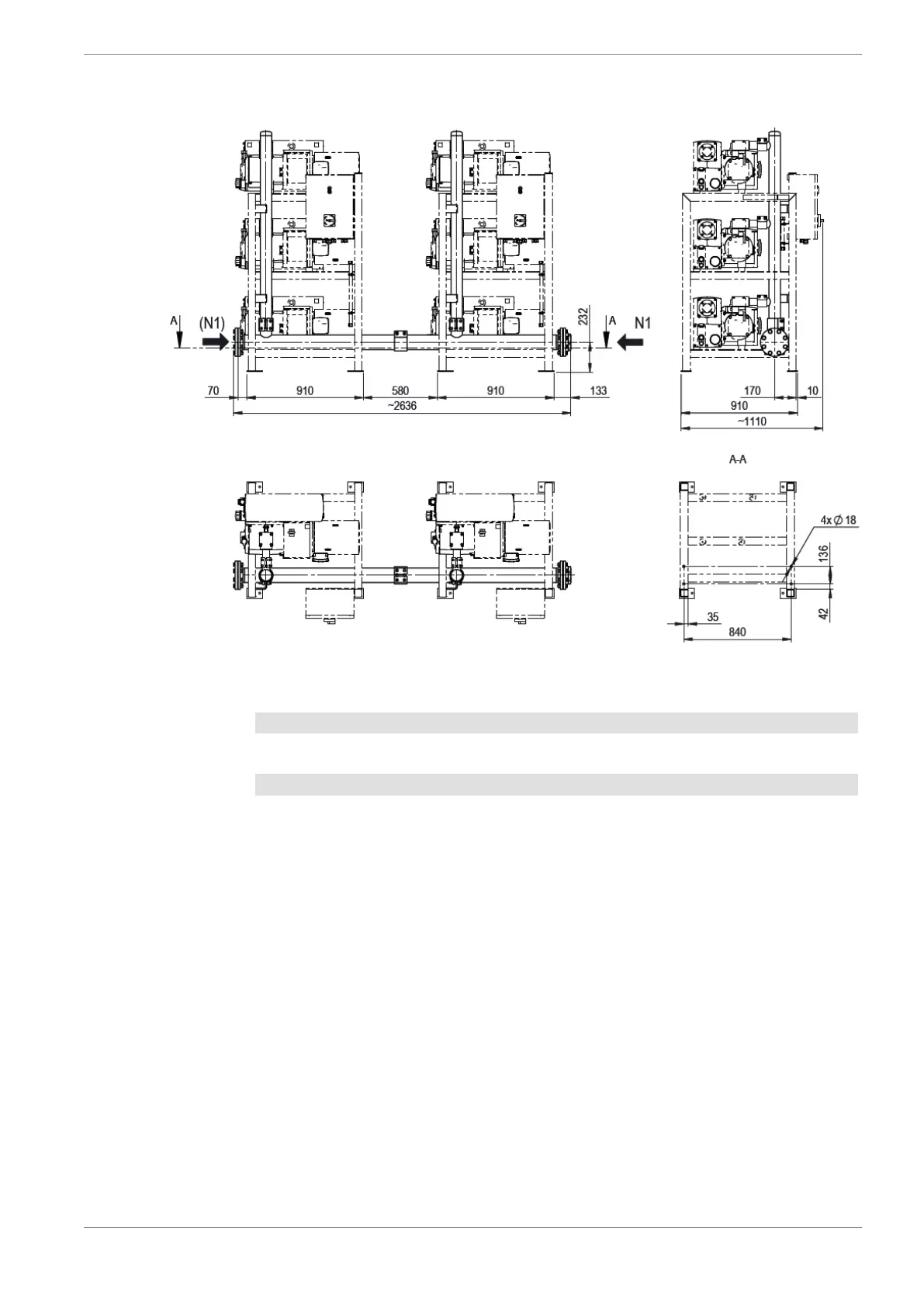

Dimensions vacuum system TRIPLEX VRD (connecting line)
Fig. 22 : Dimensions vacuum system TRIPLEX VRD (connecting line)
Pos. Designation Connection Standard
N1 Gas inlet
DN 100 PN 16,
G 3", female thread
EN 1092-1 / 11
ISO 228-1
N2 Gas outlet
Tab. 5: Connections of the vacuum system TRIPLEX VRD (connecting line)
The holes on the base frame for attaching the connecting line must be done by the cus-
tomer. Four holes (Ø18) are required per base frame.
