INSTRUCTION, USE AND
MAINTENANCE MANUAL
LIBRAK380.3DTEC - LIBRAK380P.3DTEC - LIBRAK430.3DTEC - LIBRAK430P.3DTEC
1297-M021-1_B
KEY
1 – Weight holding bridge
2 – Pneumatic mandrel (only for LIBRAK380P.3DTEC model)
3 – Ultrasound sensor
4 – Threaded mandrel (only for LIBRAK380.3DTEC model)
5 – Protection guard
6 – Foot brake (only for LIBRAK380.3DTEC model) / pneumatic mandrel open-close foot brake pedal
(only for LIBRAK380P.3DTEC model)
7 – Main switch
8 – Laser sensor
9 – Led light unit
10 – Monitor
11 – Pusher ring
12 – Rapid ring nut (only for LIBRAK380.3DTEC models)
13 – Locking sleeve (only for LIBRAK380P.3DTEC models)
14 – Cones
15 – Lateral guard
16 – Push-button panel with 7 keys
17 – Tyre outer side electronic RUN-OUT measuring device (optional)

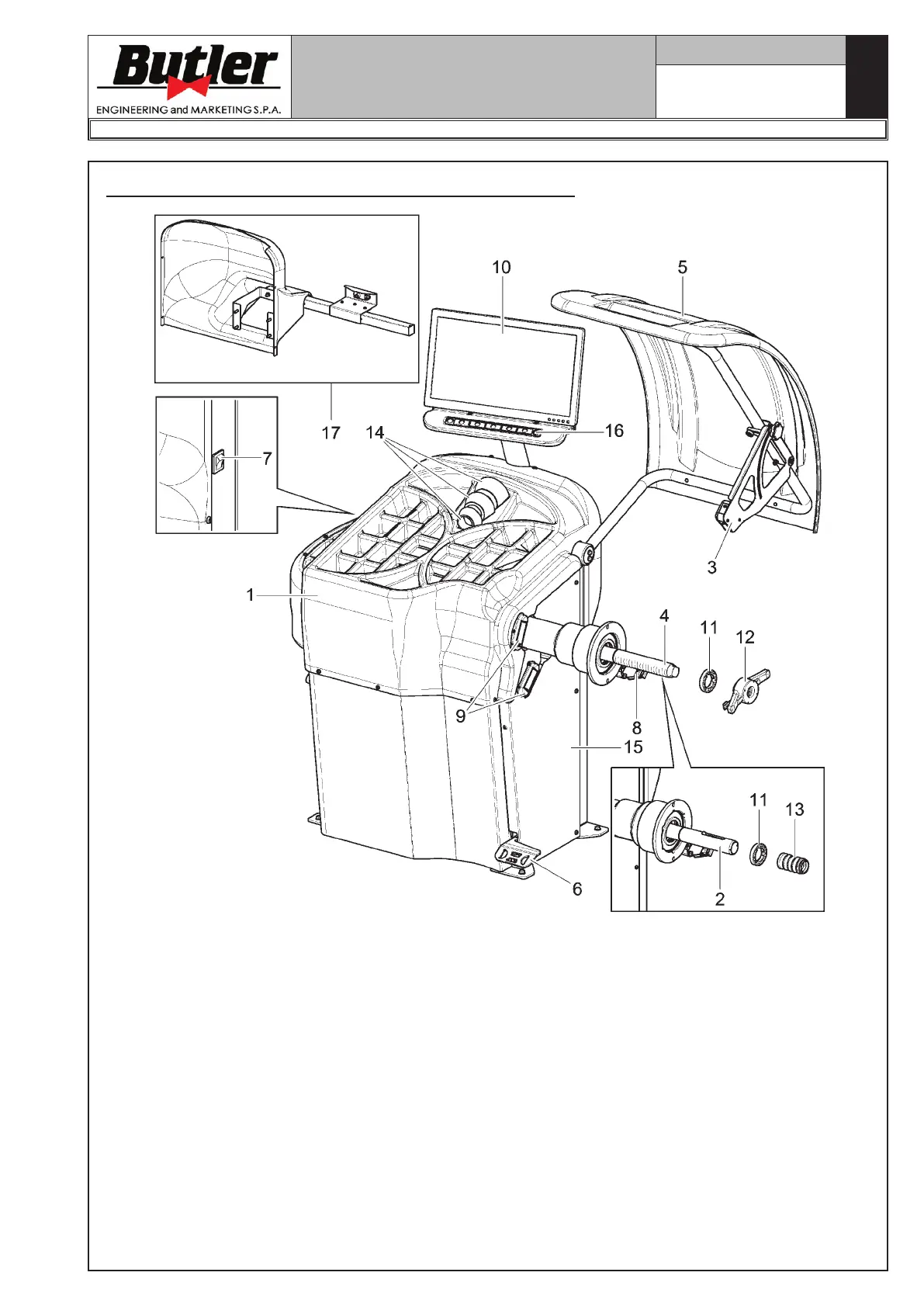

Fig. 1 - LIBRAK380.3DTEC - LIBRAK380P.3DTEC
