Control and display elements
Butzbach GmbH Industrietore Original operating manual sliding doors_V1 13/01/2021 31
6.3 Display (SIMATIC LOGO) (optional)

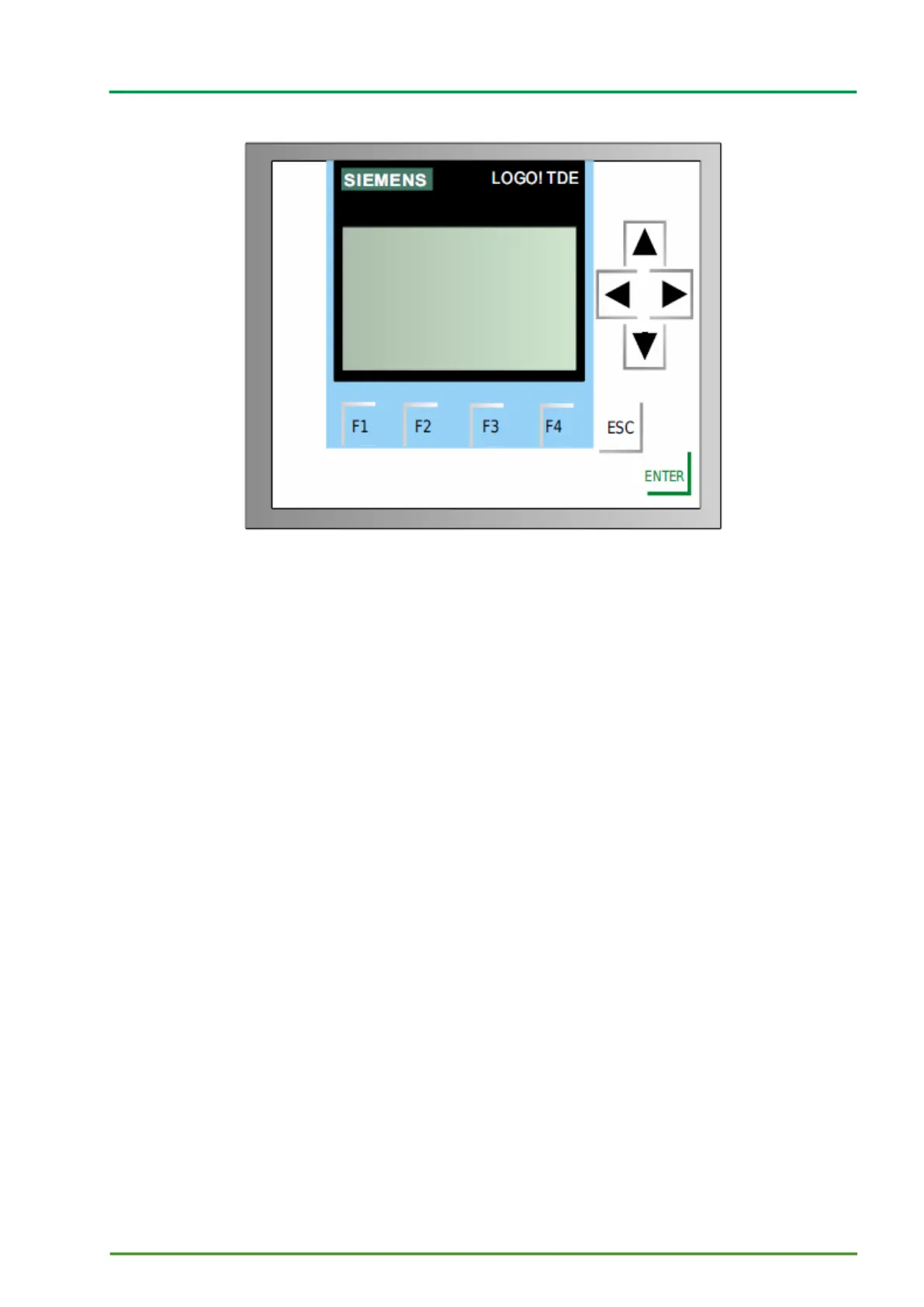

Figure 10 Starting screen for the SIMATIC display
Errors with possible messages (status messages, operational messages) are shown on the starting screen.
Depending on the requirements for the door system, the display may differ from the figure above.
See the separate operating manual for this.
