2 List of supplied parts
2.1 Type designation code
Type designation code for standard units and Bewazon VULW
w x y z special units
w = 12, 25, 45, 70, 140, 210, 280, 350, 420, 490, 560, 630, or 700
(unit capacity in grammes of ozone per hour)
x = Roman numeral (for the number of circuits for multi-circuit
units) or space (for single-circuit units)
y = VA or PVC (basic material of the ozone generator)
z = TA (dryer for tropical areas) or space (for standard model)
Special units are units with:
x = II, III, IV
z = TA

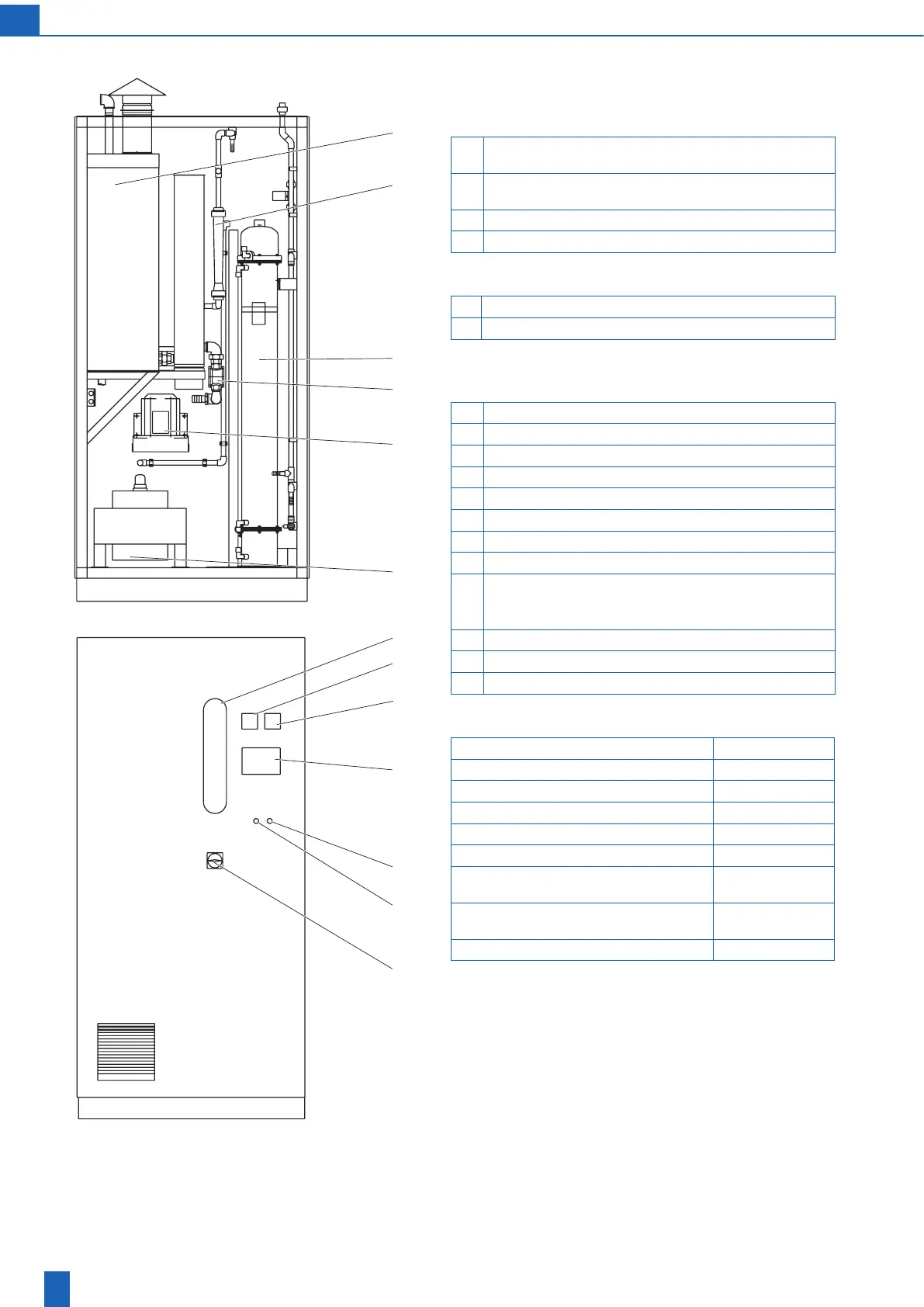

BWT standard cabinet ozone devices comprise:
1 Air dryer
2 Airowmeter
3 Regeneration blower
4 Ozone generator made of stainless steel
5 Valve controller for dryer
6 High voltage transformer
7 Voltmeter
8 Ammeter
9 Touch panel (TP) control unit display with operation functions.
Operating element with plain text display in a selection of
9 languages
12 Fault signal lamp
13 Power supply lamp
14 Main switch
Optional equipment Order number
PVC ozone generator on request
P/PID controller 16015
Analogue output 16016
ProbusDPdatabusinterface 16017
Pronetdatabusinterface 16018
Integrated cooling water loop for Bewazon
VULW 12 to 280: Bewazon Therm 100
14788
Integrated cooling water loop for Bewazon
VULW 350 to 700: Bewazon Therm 300
14789
UPS for PLC 16012
Bewazon 70 - 140
1
6
3
4
2
5
2
9
7
8
12
13
