STARDECK AXLE
1. Axle, diameter 150 or 180 mm
Product presentation
Ref
Description
Qty
1 Aluminium axle Ø150 or Ø180 1
2 SS shaft 1
3 Axle end piece 1
4 Locking cannula 2
5 M8 washer A4 SS 2
6
HSHC screw M8x65 A4 SS
2
7
Protective pin
1

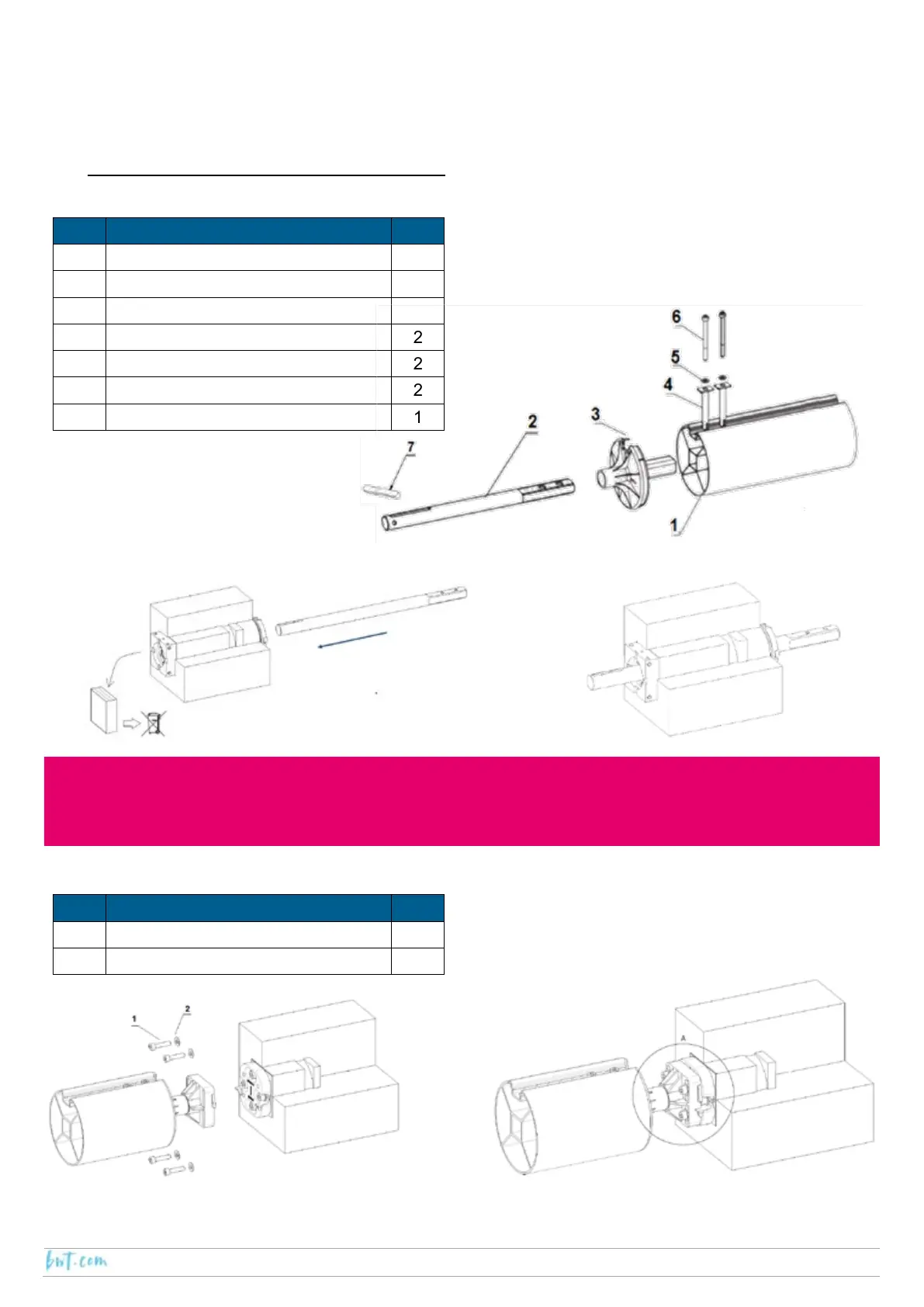

Feeding the stainless steel shaft through the throughwall flange from the pool to the motor pit
CAUTION
The protective pin must be left in place when feeding the stainless steel shaft through
the throughwall flange to avoid cutting the gaskets.
Mounting the axle on the bearing
Ref Description Qty
1 HSHC screw M8x35 A4 SS 4
2 M8 washer A4 SS 4
Do not block the screws
