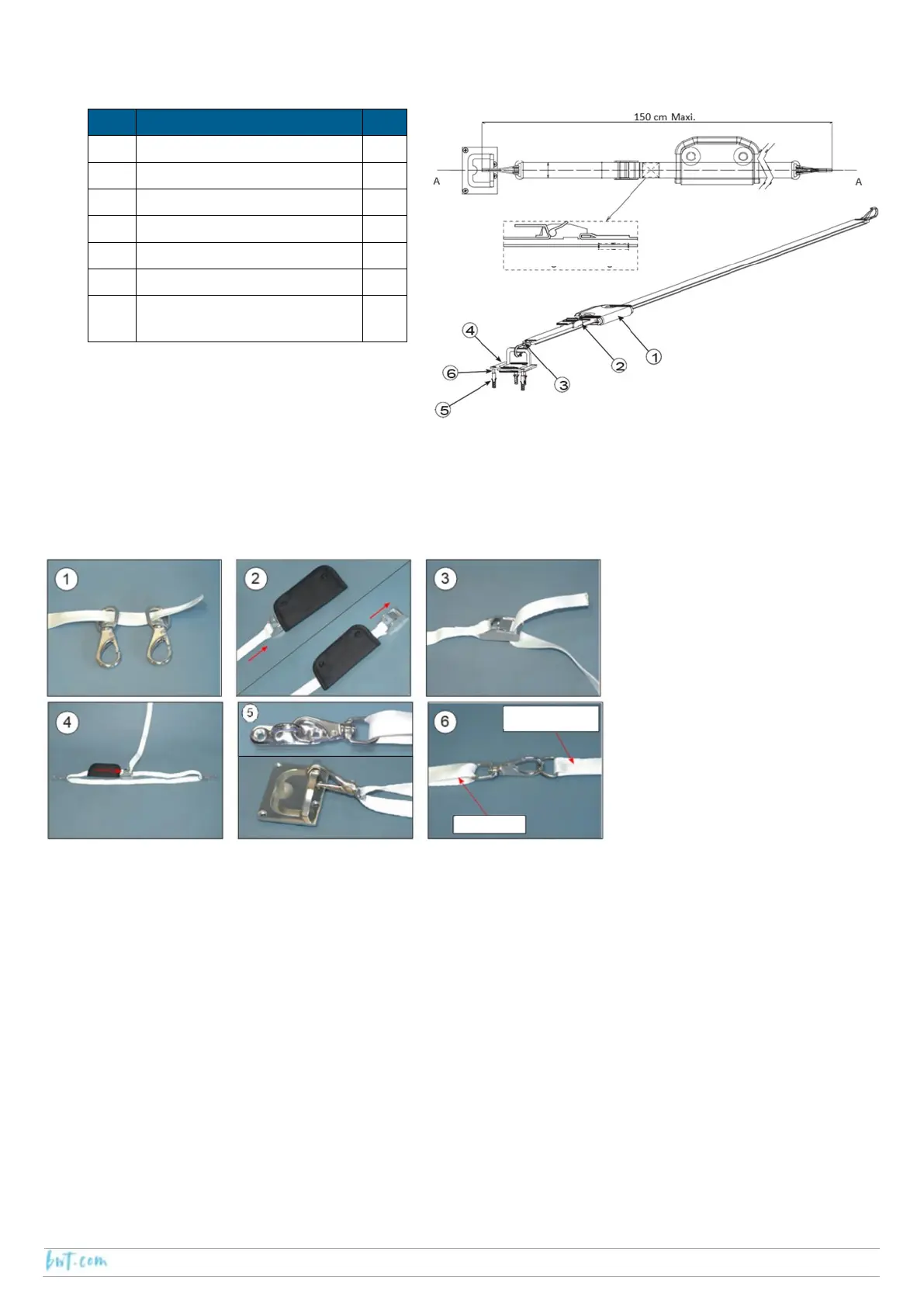

BWT STARDECK INEO - Stainless Steel, Collapsible Hasp Fastener; Attaching the Strap to the Hasp

PROTECTION & SAFETY
32 2021/07 - Version: C -
Code : 34681
2.9.3. Stainless steel, collapsible hasp fastener
Ref Description Qty
1 Protective sleeve 1
2 Strap and cam buckle 1
3 Hinged SS carabiner 1
4 Collapsible hasp 1
5 Hasp gasket 4
6 Nylon S 6x30 bushing 4
7 Pozidrive countersunk
screw 3.9x38 SS A4
4
2.9.4.
Attaching the strap to the hasp
1 - Thread the strap through
the carabiner loops.
2 - Slide the cam buckle
through the sleeve and pull it
out the other side.
3 - Thread the end of the strap
through the cam buckle catch.
4 - Arrange the assembly as shown
after it has been adjusted to the
correct length. Slide the black
sleeve over the cam buckle.
5- Attaching a carabiner to a fixed or collapsible hasp.
6- Attaching a carabiner to the strap on the first slat of the cover apron.
Strap threading
Strap threading on the first
slat of the apron
Adjustable strap
