BWT STARDECK INEO - Sub-Coping Mounted Safety Fastener

PROTECTION & SAFETY
29 2021/07 - Version: C -
Code : 34681
Installing the fasteners
The fastener straps are already attached to the first two slats of the cover apron.
Attach the fastener frame (1) to the wall opposite the axle exactly opposite the fastener straps
using the pozidriv countersunk screws ST 5.5 x 50. Position the fastener frame such that the
arrow markings coincide with the water level. In the case of liner or reinforced membrane
pools, do not forget to insert the fastener gasket between the fastener frame and the
membrane.
2.8.2.

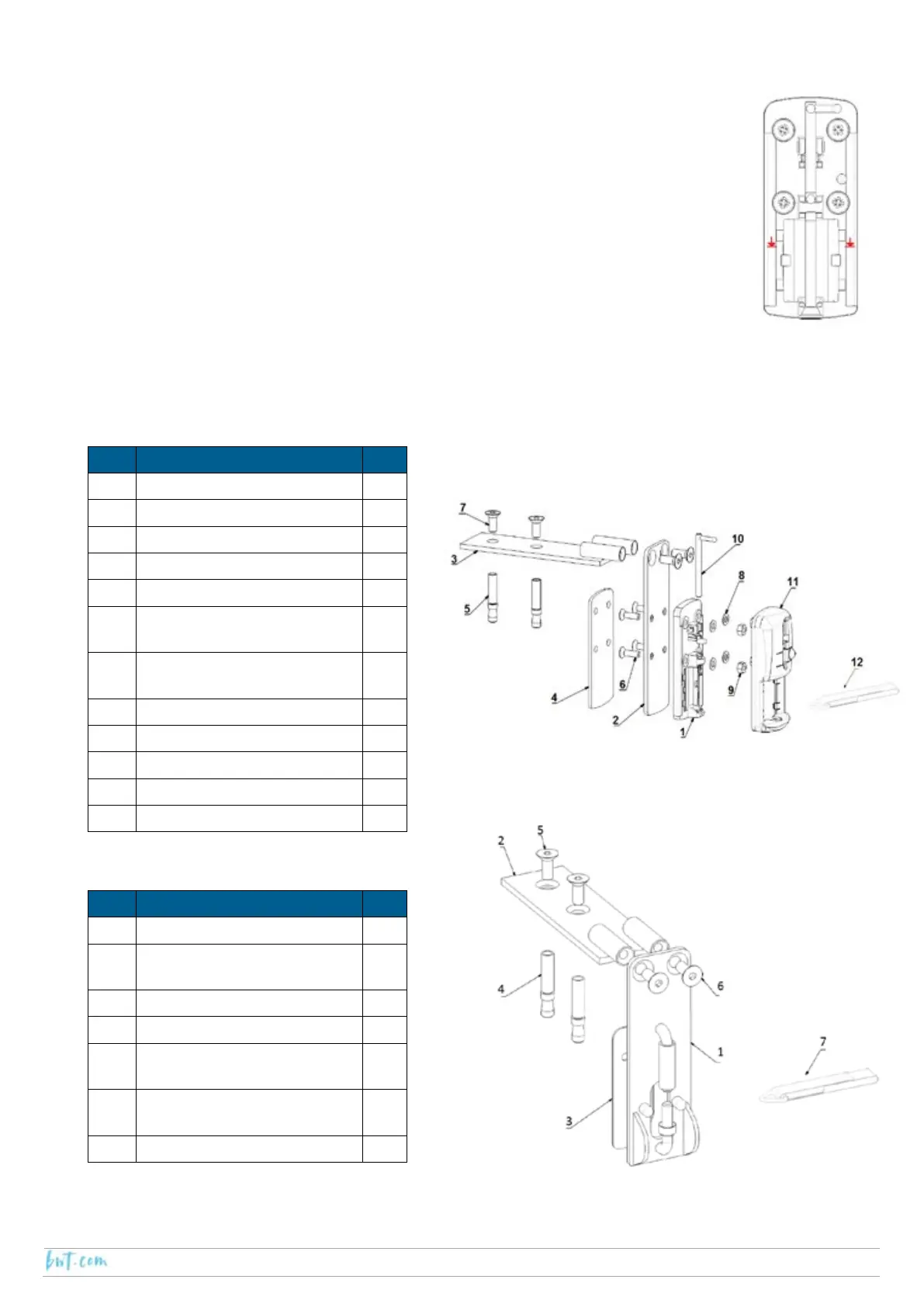

Sub-coping mounted safety fastener
Sub-coping mounted safety fasteners are compatible with thin walled and polystyrene block prefab pools.
Version with trim
Ref Description Qty
1 Fastener frame 1
2 SS plate 1
3
SS support bracket
1
4 Fastener gasket 1
5 Upat M8x50 bushing 2
6 Countersunk hex socket
screw M6x20 A4 SS
4
7 Countersunk hex socket
screw 8x20 A4 SS
4
8
Z 6 A4 SS washer
4
9 H 6 A4 SS nut 4
10 Stainless steel slide bar 1
11 Trim 1
12 Fastener strap 1
Stainless steel version
Ref Description Qty
1 Stainless steel clasp 1
2 Stainless steel support
bracket
1
3 Frame gasket 1
4 Upat M8x50 bushing 2
5 Countersunk hex socket
screw 8x20 A4 SS
2
6 Countersunk hex socket
screw 8x20 A4 SS
2
7 Fastener strap 1
