3. Preparation before installing the mechanical assembly
Stardeck Inéo

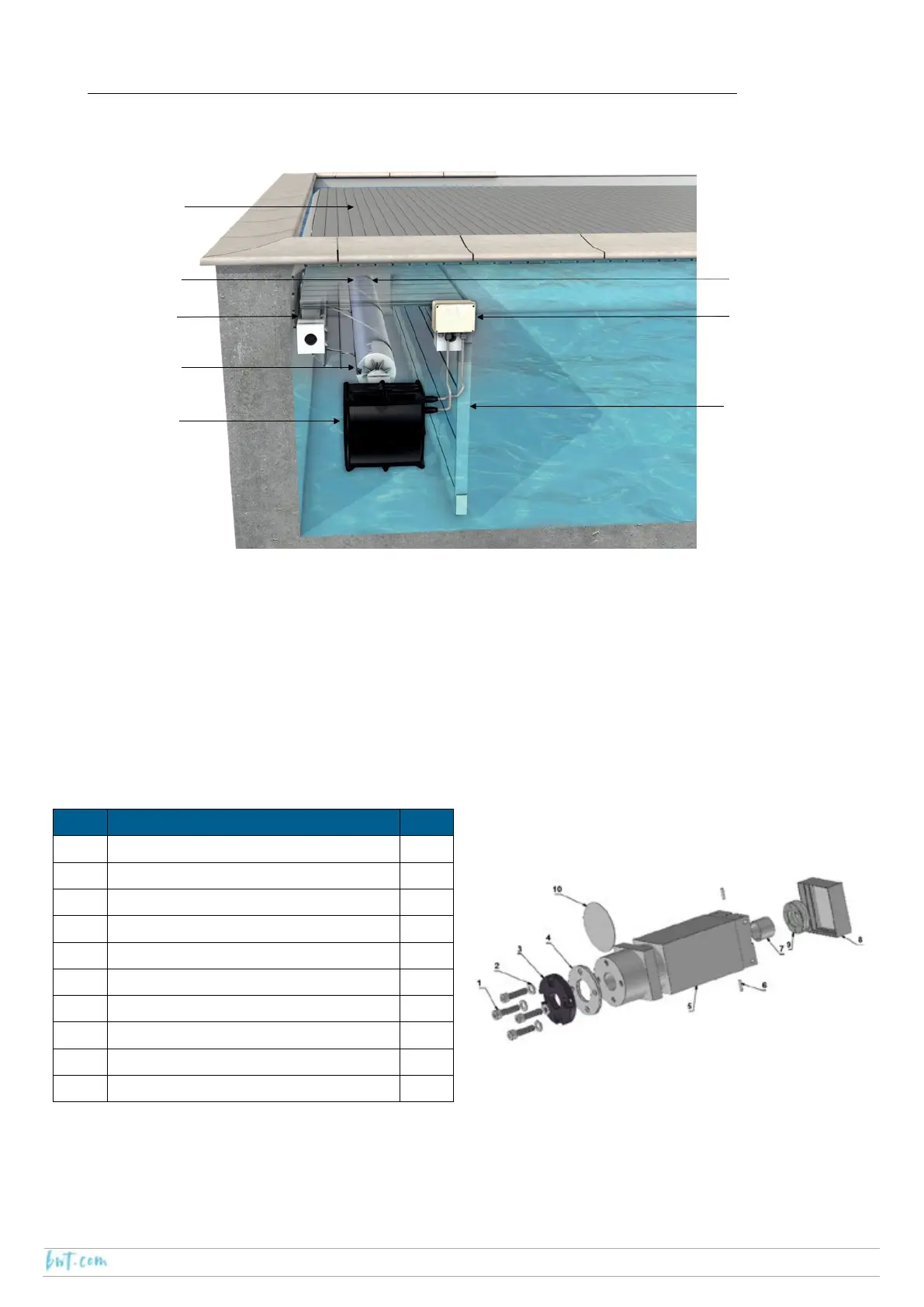

3.1. Pool fittings exploded view
The pool fittings must be installed while the pool walls are being built, respecting the positions and
measurements indicated in the civil engineering diagrams provided by PROCOPI.
Standard 275 mm throughwall flange for 250mm wall
Note: The length of the throughwall flange will depend on the thickness of the wall.
Ref Description Qty
1 HSHC screw M10x40 A4 SS 4
2 Z10 washer A4 SS 4
3 Throughwall body flange 1
4 Flange gasket 2
5
Throughwall flange body
1
6 Ø4 pin x20 A2 SS 2
7 Composite bushing 1
8 Protective cap 1
9 Double seal ring 1
10 Worksite protective cover 1
Duckboarding
Slat apron
Beam
Aluminium axle
Slat Motor
Counterweight
Connection box
Separating pit
wall
