3.1. Position of the deflectors
Deflectors are mandatory for all cover configurations. The number required will depend on the width and the
shape of the pool. In the case of configurations C, D and G, deflectors should be placed at the same positions
as the cradles.

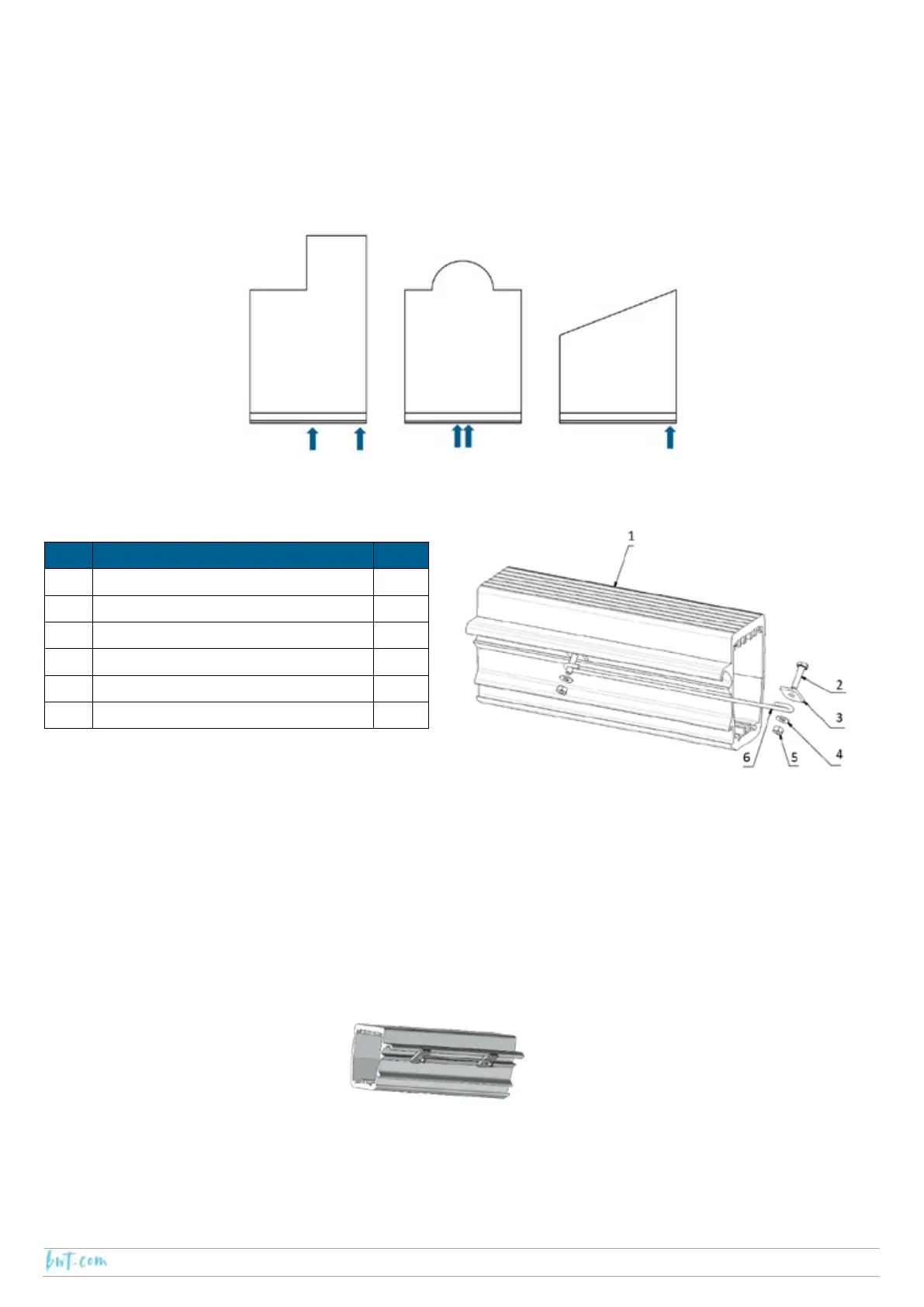

In some specific cases (refer to the diagrams below that illustrate the position of deflectors according to the pool
shape), it may be necessary to add a strap attachment to accommodate the cradle strap. This attachment will
avoid the need for a deflector in these specific cases.
3.2. Strap attachment
The strap attachment will be proposed if the number of deflectors is less than the number of cradles.
Assemble the product and position it on the beam
located on the separating pit wall side.
Do not tighten the nuts. The nuts will be tightened when the attachement assembly is positioned in front of a
cradle and the strap is threaded onto the strap attachment bar (6).
3.3. Inéo cradle
Cradles are only relevant to configurations C, D and G
The number of cradles, deflectors and cradle strap attachments will depend on the shape and the width of the
pool. Refer to the specification for more information.
A deflector or strap attachment must be installed in front of each cradle (figure below).
Ref Description Qty
1 Beam profile 1
2 H screw M 6 x 25 A4 SS 2
3 ¼ turn gib 2
4 Washer M 6 A4 SS 2
6 Strap attachment bar 1
