38 2021/07 - Version: C -
Presentation of the product
Start by assembling the deflectors.
Putting the straps in position:
The straps are located at the screws (1).
Positioning the cradles
Spread the cradles across the width of the pool, positioning them opposite the deflectors already in position.
If the number of deflectors is less than the number of cradles, strap attachments will need to be installed opposite
those cradles that do not have corresponding deflectors.

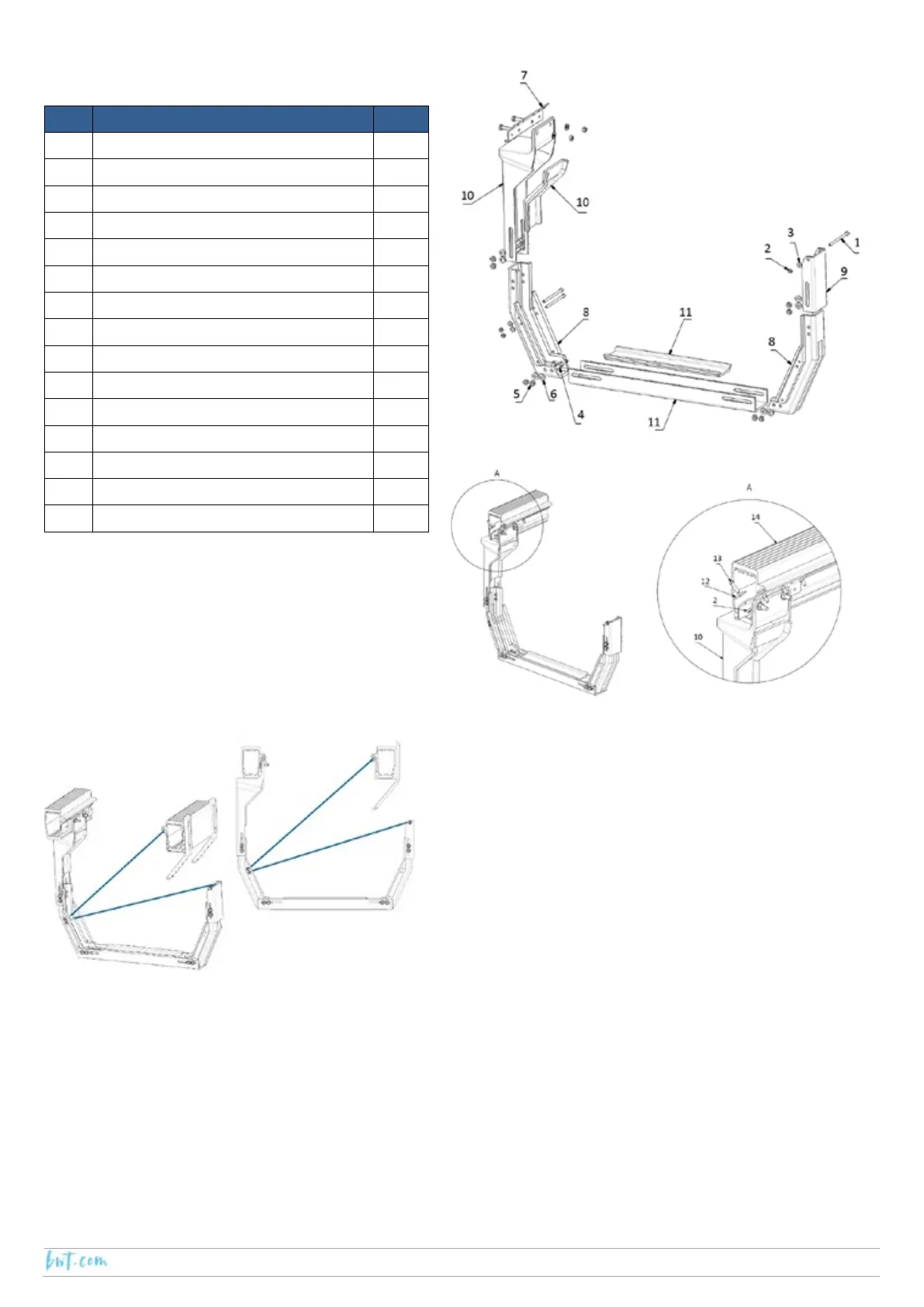

Mount the cradle assemblies on the separating pit wall beam.
Flatten the cradles against the pit wall as much as possible and tighten the screws to fix the cradles in position.
Ref Description Qty
1 HSHC screw M 6 x 100 A4 SS 3
2 H nut 6 A4 SS 7
3 Washer M 6 A4 SS 7
4 HSHC screw M 8 x 30 A4 SS 16
5 H nut 8 A4 SS 18
7 Beam/ cradle coupling 1
8 Cradle - foot 2
9 Cradle – end piece 1
10 Cradle – fastening to the beam 1
11 Cradle – cross section 1
12 ¼ turn gib 4
13 H screw M 6 x25 A4 SS 4
14 Beam profile 1
