High water level version
1 Stainless steel clasp 1
2 Stainless steel support
bracket
1
3 Frame gasket 1
4 Upat M8x50 bushing 2
5 Countersunk hex socket
screw 8x20 A4 SS
2
6 Countersunk hex socket
screw 8x20 A4 SS
2

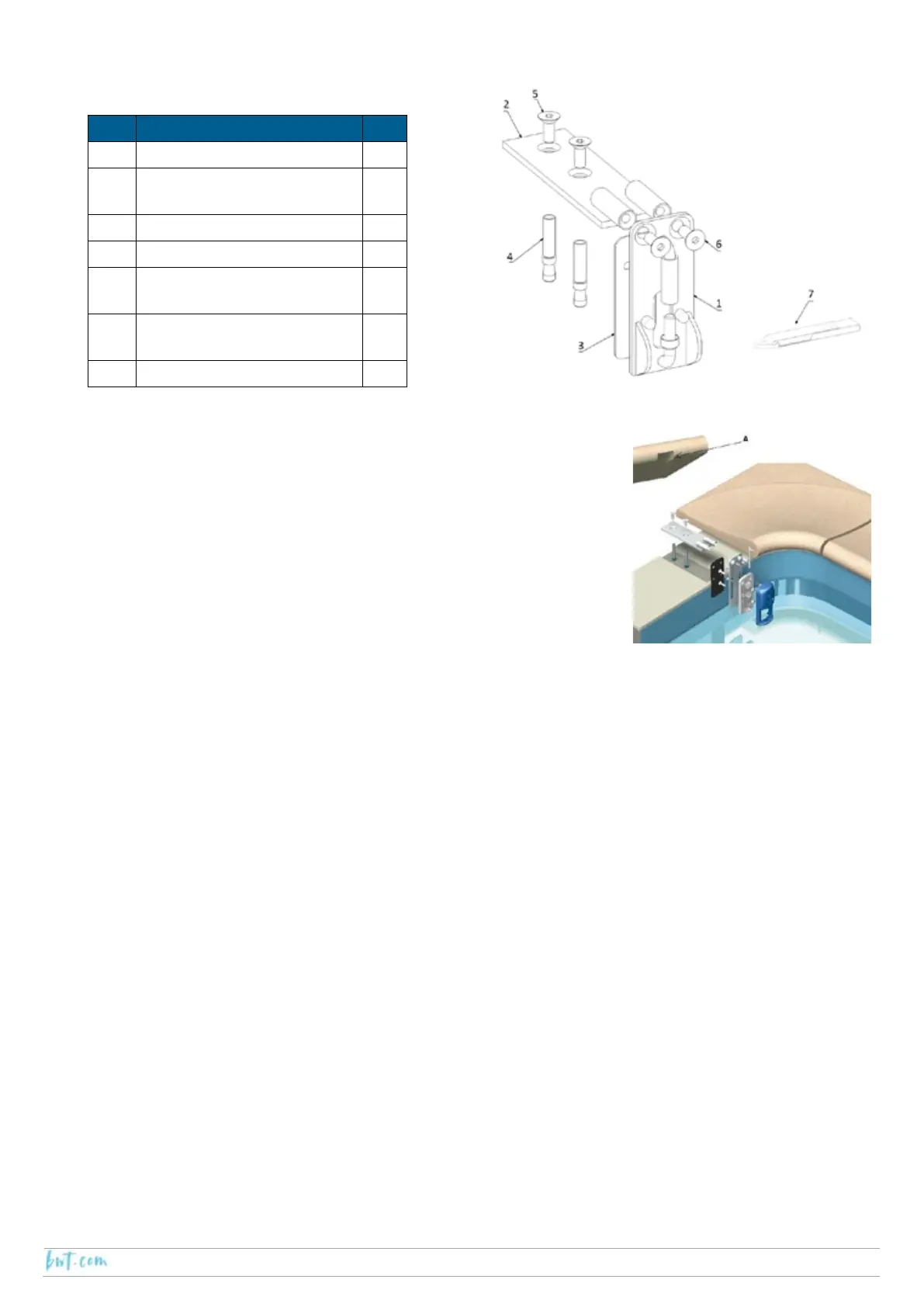

Installation of the fasteners
Shape the underside of the coping (A) to accommodate the safety fastener.
Drill through the fastener support bracket (3) Ø 10 mmm - depth 8 mm).
Fix the sub-coping support plate in position using two UPAT M8x50 bushings
and two Countersunk hex socket screws M8x20.
Version with trim: The fastener frame (1) is then mounted on the plate using
four Countersunk hex socket screws M6x20 (6) with Z6 washers (8) and H
M6 nuts (9).
