Operator manual
Page 9 - 17
Initial version : 11/08
Lastest revision : 02/10
Booklet thickness
Saddle stitching (middle of the sheet stitching) fold and cut :
- from 2 to 30 sheets of 75 gsm or equivalent thickness (cover included) Maximum 3 mm.
- Top or corner stitching (without either fold or cut) :
from 2 to 55 sheets of 80 gsm or equivalent thickness (cover included).
Stitcher
See “Stitching possibilities depending on paper width”.
Folder
Maximum pressure by default, pressure can be decrease through U.I. to avoid cover marking/
crackles.
Trimmer
Waste bin capacity: 8000 paper strips of 80 gsm with a cut of 5mm.
The waste bin can be emptied without stopping the machine during 50 cycles, after which the
machine will stop.
Conveyor
Capacity: 42 sets (A4 format) of 10 sheets (80gsm) - theoretical values.
Motion step:
Offset set device:

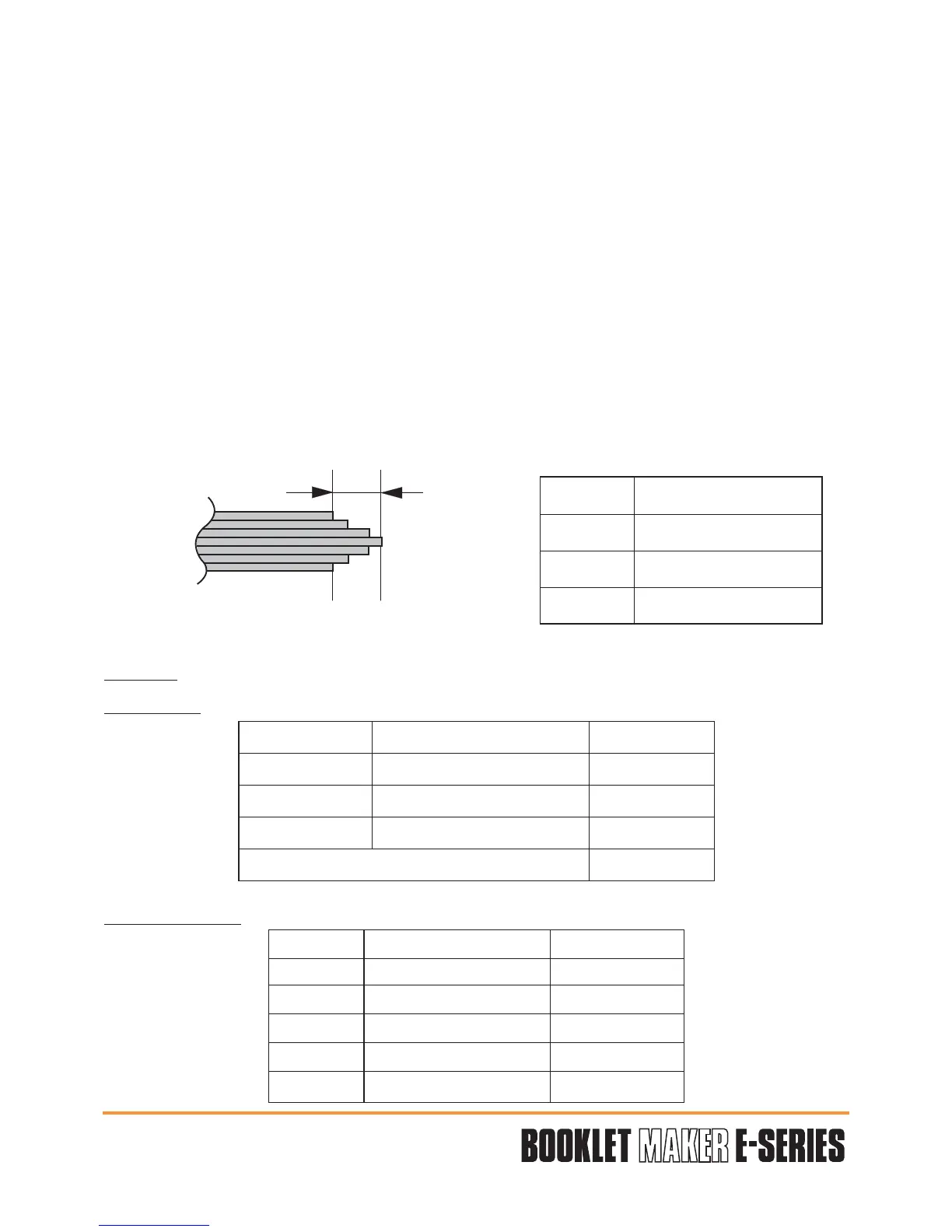

Length of the cut
Min. 0 mm (0 in.)
Max. 25 mm (1 in.)
Standard 5 mm (0.2 in.)
Step Value Value U.I.
Minimum 20 ± 10 mm 1
Maximum 330 ± 40 mm 29
By default 8
Conveyor does not stop 30
Offset Value on U.I.
No offset 1
Minimum Offset of 2
nd
set 2
Offset of 3
rd
set 3
Offset of n
th
set 11
Maximum Offset of 250
th
set 250
