C.P.Bourg BM-e - Wire Spool Replacement (for Hohner Heads)

Operator manual
Page 9 - 26
Initial version : 11/08
Lastest revision : -
3.6.4 Wire spool replacement (for Hohner heads)
Note: Oil the felt discs on the wire bow of the Hohner heads. See chapter :
Preventive maintenance.
For Hohner stitching heads.

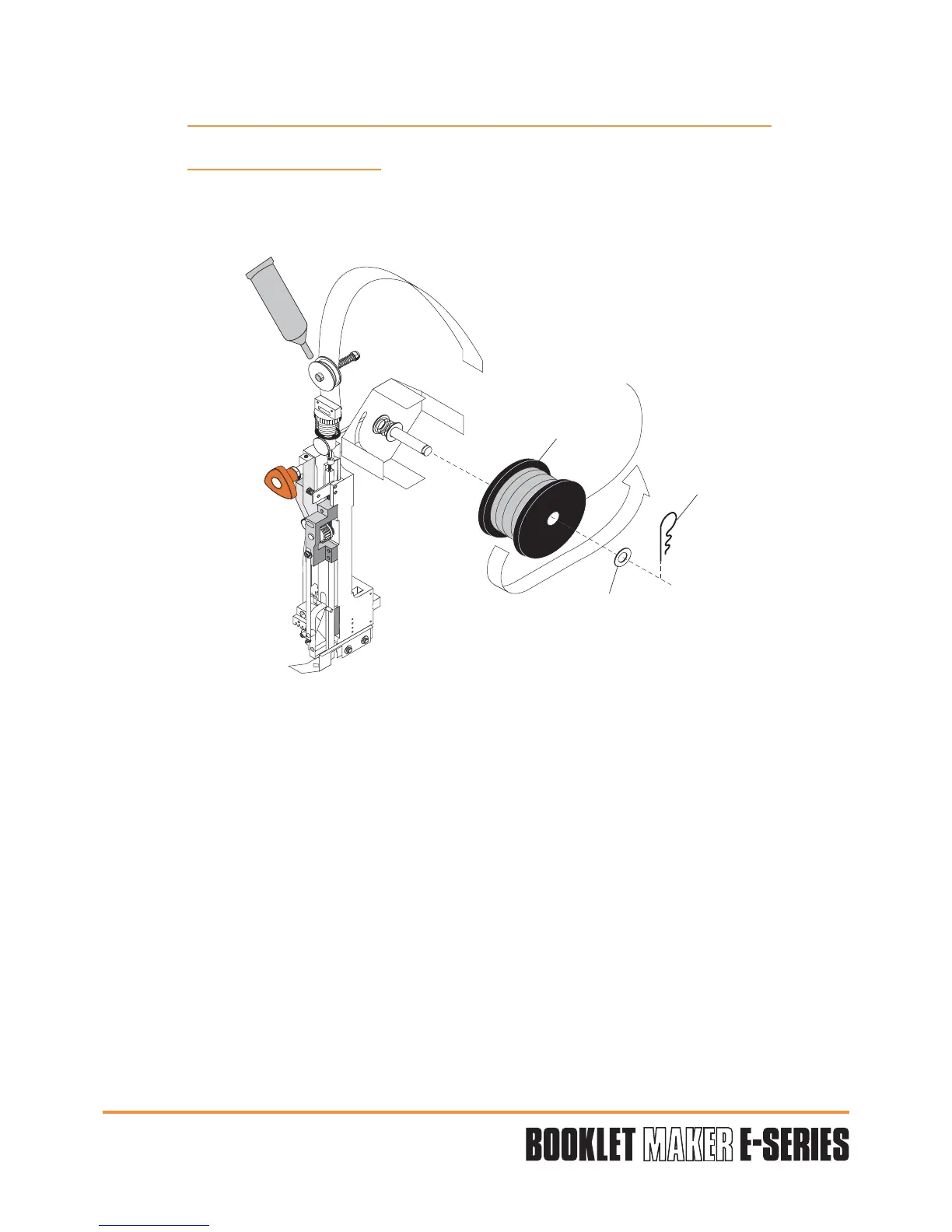

- Remove pin ref.1 and washer ref.2.
- Remove the emty spool.
- Install a new spool ref.3 (pay attention to wire direction).
- Reinstall the washer ref.2 and the pin ref.1 in the shaft groove.
hohner
U
N
IVER
SAL
48/5
S
2
3
1
