15
4 Loading Material
4.1.6 Setting the Head Locking Systems
The printheads are pushed on via two plungers. The locations of the outer plungers must be set to the width of the
label medium used so as to
• achieve even print quality across the entire label width
• prevent wrinkles in the feed path of the transfer ribbon
• prevent premature wearing of the print roller and printhead.

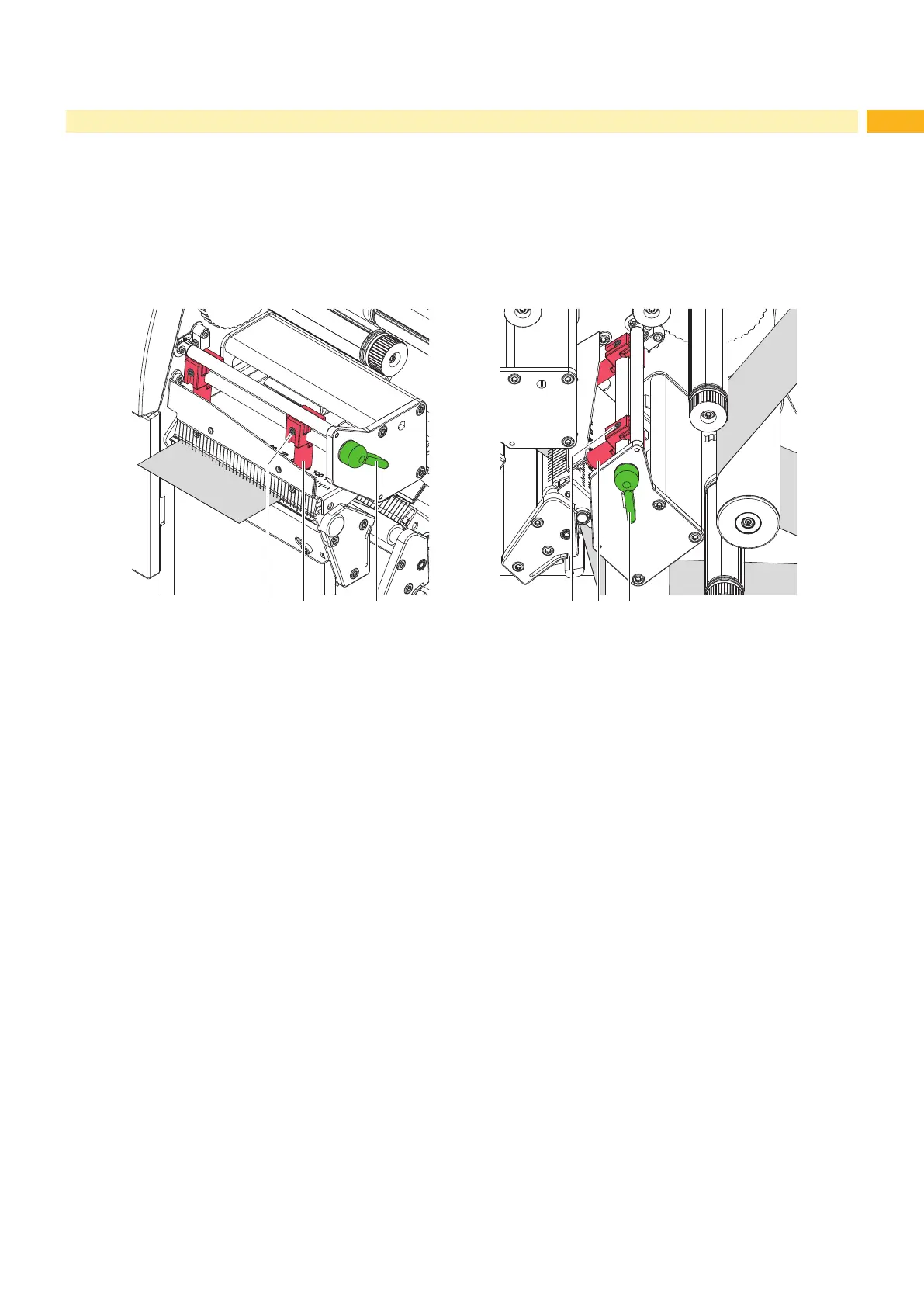

Fig. 12 Setting the upper head locking system Fig. 13 Setting the lower head locking system
1. Turn lever (3) clockwise to lock the printhead.
2. Loosen threaded pin (1) at outer plunger (2) with Allen key.
3. Position outer plunger (2) above the outer label edge and tighten threaded pin (1).
