8 Media
8.3 Reex Mark Dimensions
Labels with reex marks Endless material with reex marks

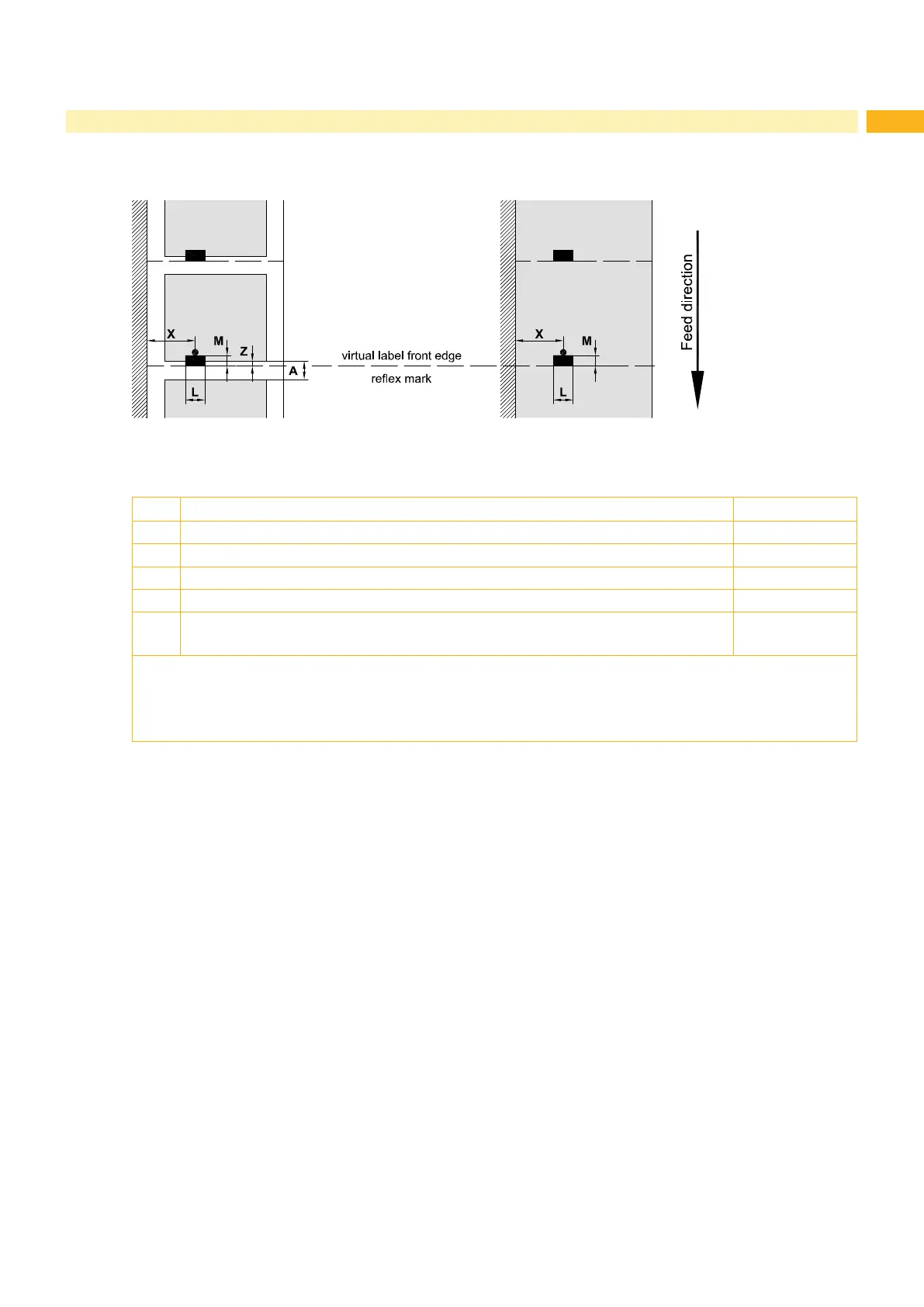

Fig 20 Reex mark dimensions
Dim. Designation Dim. in mm
A Label distance > 2
L Width of reex mark > 5
M Height of reex mark 3 - 10
X Distance mark - material edge 5 - 53
Z Distance virtual label front edge - actual label front edge
Adjust software settings
0 up to A /
recomm. : 0
• Reex marks must be on the back side of the material (liner).
• Label sensor for reex marks on the top side on request.
• Specication is valid for black marks.
• Recognition of colored marks may fail. Preliminary tests are needed.
Table 10 Reex mark dimensions
