26 26
8.2 Device Dimensions

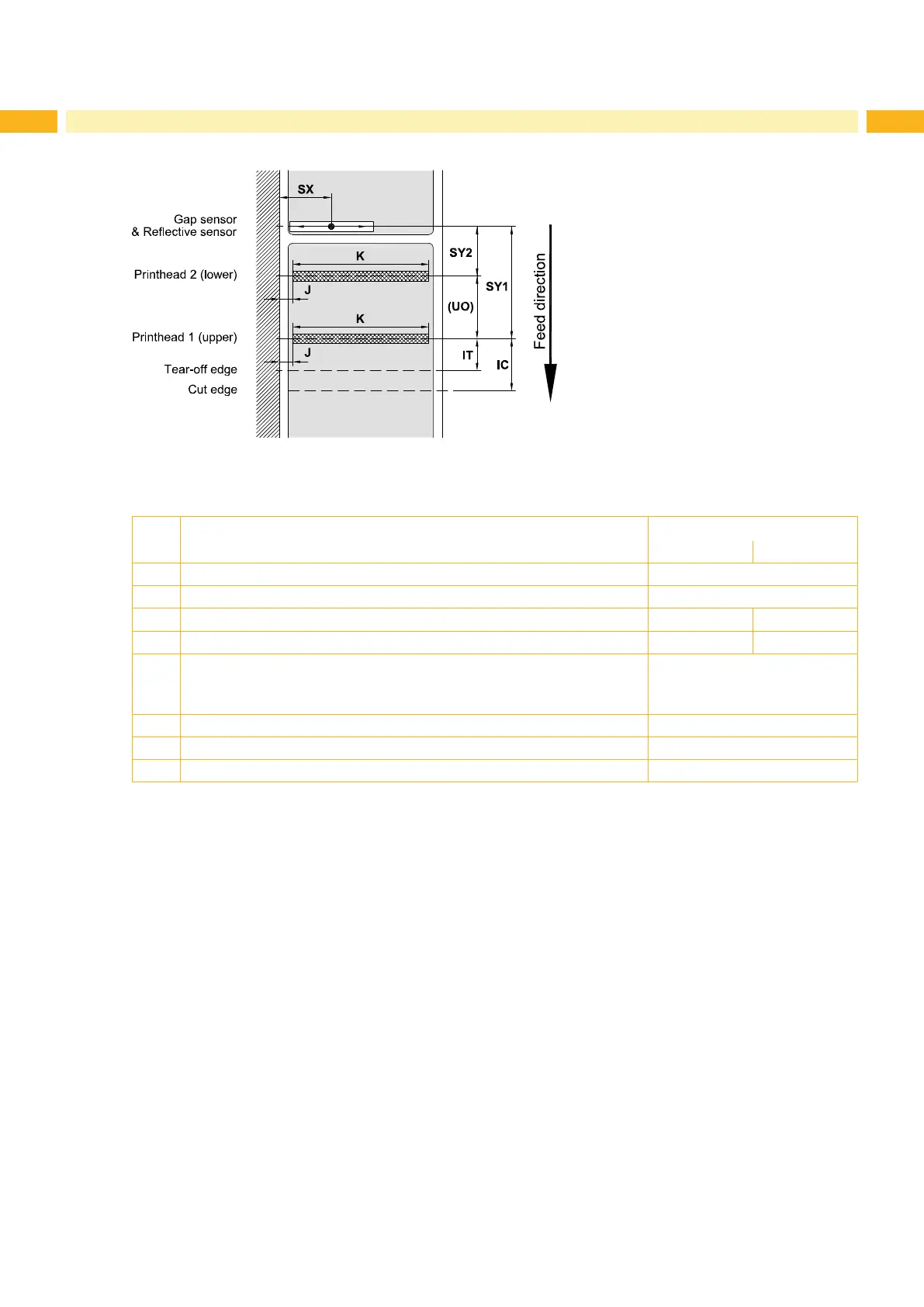

Fig. 19 Device dimensions
Dim. Designation Dim. in mm
XC4 XC6
IC Distance printhead 1 (upper) - cut edge - with cutter CU 18,8
IT Distance printhead 1 (upper) - tear-off edge 13,5
J Distance 1st heating point - material edge 2 3
K Print width 105,6 162,6
SX Distance gap/reective sensor -
material edge
i.e. permissible distance of reex or cut-out marks to the material edge
5 - 53
SY1 Distance gap/reective sensor - printhead 1 (upper) 135,3
SY2 Distance gap/reective sensor - printhead 2 (lower) 46,4
UO Distance printhead 2 (lower) - printhead 1 (upper) 88,9
Table 9 Device dimensions
8 Media
