8.1 Media Dimensions
Labels Endless material

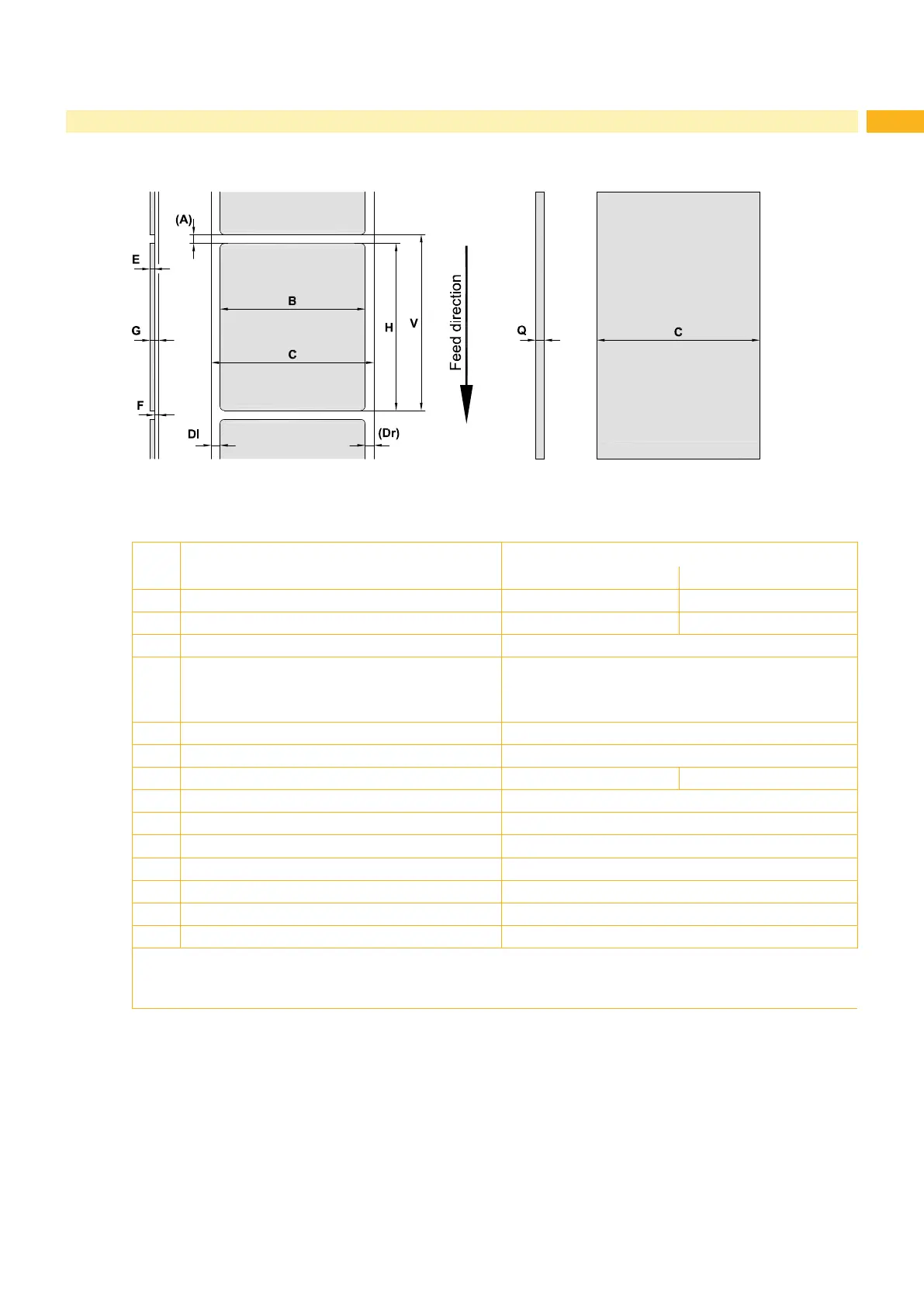

Fig. 18 Label / endless material dimensions
Dim. Designation Dim. in mm
XC4 XC6
B Label width 20 - 116 50 - 176
H Label height 20 - 2000 20 - 1500
- Tear-off length > 30
- Cut length
with cutter
with perforation cutter
> 2
> 12
- Perforation length > 2
A Label distance > 2
C Width of liner or endless material 25 - 120 50 -180
Dl Left margin ≥ 0
Dr Right margin ≥ 0
E Label thickness 0,025 - 0,7
F Liner thickness 0,03 - 0,1
G Thickness label with liner 0,055 - 0,8
Q Thickness endless material 0,03 - 0,8
V Label feed > 22
• Small label sizes, thin materials or strong glue can lead to limitations.
Critical applications need to be tested and cleared.
• Note the bending stiffness ! Material must be exible to follow the radius of the print roller !
Table 8 Label / endless material dimensions
