CAB XC Series User Manual

28 28
8 Media
8.4 Cut-out Mark Dimensions
Labels with cut-out marks Endless material with cut-out marks
for marginal cut-out marks
minimum liner thickness 0,06 mm

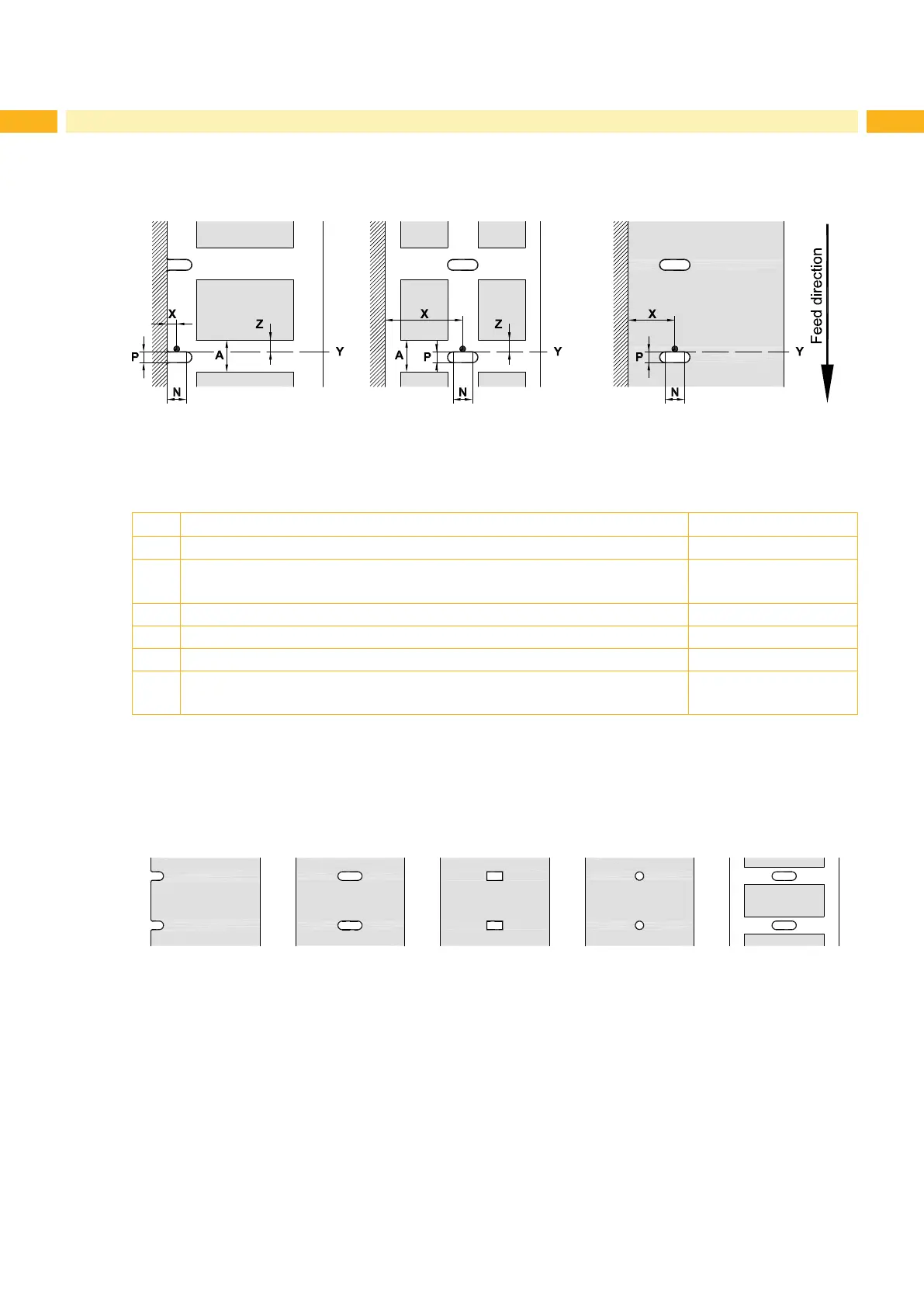

Fig. 21 Cut-out mark dimensions
Dim. Designation Dim. in mm
A Label distance > 2
N Width of cut-out mark
for marginal cut-out
> 5
> 8
P Height of cut-out mark 2 - 10
X Distance mark - material edge 5 - 53
Y Sensor recognized virtual label front edge with gap sensor recognition Rear edge cut-out
Z Distance recognized front edge - actual label front edge
 Adjust software settings
0 up to A-P
Table 11 Cut-out mark dimensions
Marginal cut-out Long hole cut-out Rectangular cut-out Circular cut-out
Not recommended !
Cut-out
between the labels
Not recommended !
Fig. 22 Samples for cut-out marks
