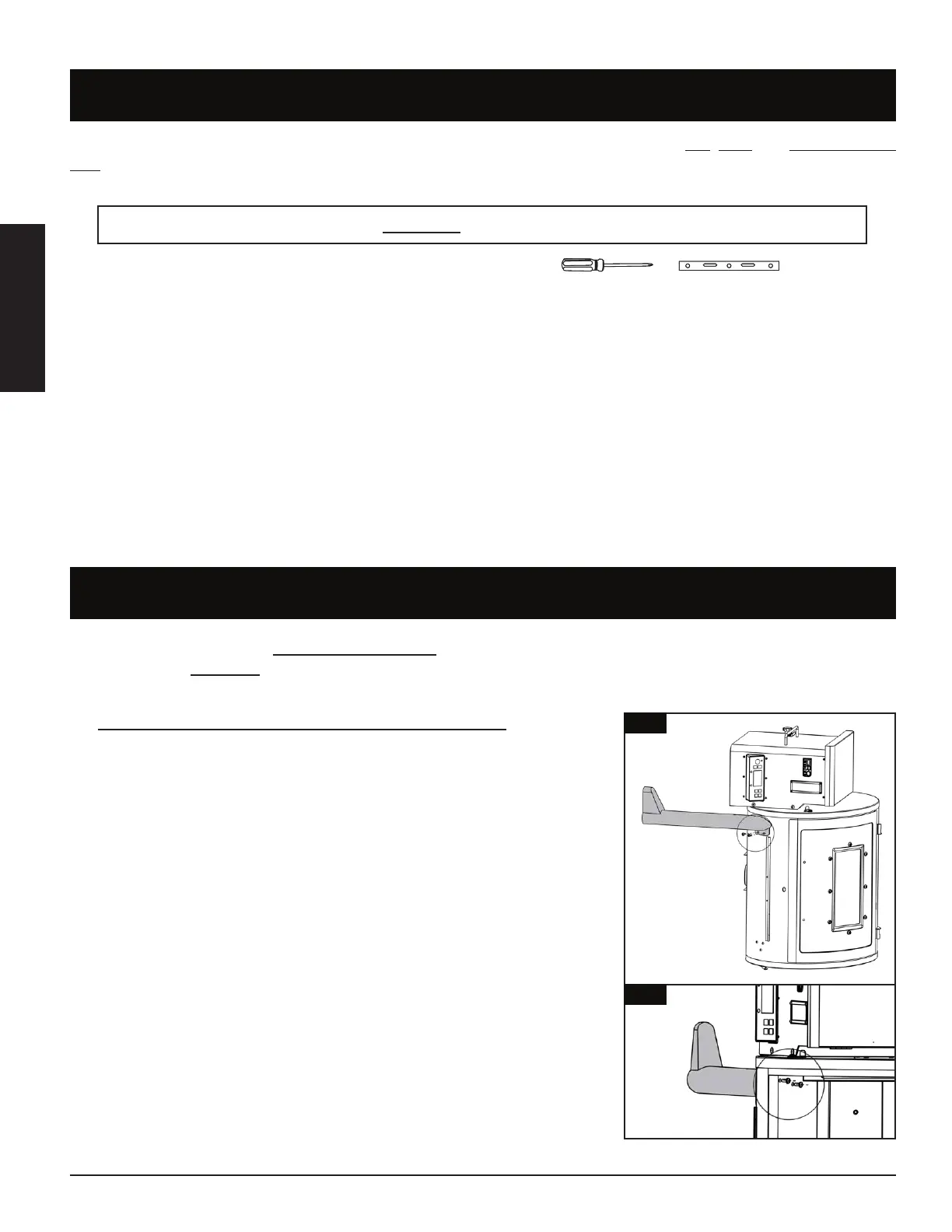

IMPORTANT: It is advised to read each step entirely before starting assembly on instructions. Do not tighten screws
completely until all screws for that step have been installed. Hardware combination involving a locking washer and
washer should be installed with the locking washer closest to the head of the screw.
1.
Parts Required:
1 x Main Barrel
(#9)
2 x Support Leg For Locking Caster Wheel
(#17)
8 x Screw
(#A)
8 x Locking Washer
(#C)
8 x Washer
(#B)
Installation:
• Place a piece of cardboard on the floor to prevent scratching the unit.
Lay the main barrel down on its side, hopper end pointed upward, on
the cardboard.
• Assemble one support leg for locking caster wheel onto the main barrel
(side closest to the hopper). Install two washers, locking washers, and
screws from the outside of the main barrel, towards the inside. Note
illustration 1. Next, install two washers, locking washers, and screws
from the inside of the main barrel, towards the outside, on the same
support leg. Note illustration 1.
• Repeat same installation for other support leg for locking caster
wheel.
Parts are located throughout the shipping carton, including underneath the grill. Inspect the grill, parts, and hardware blister
pack after removing from the protective shipping carton. Before assembly of product, review all parts and reference the parts list.
If any part is missing or damaged, do not attempt to assemble. Contact Customer Service at 1.887.303.3135 .
IMPORTANT: To ease installation, using two people is helpful (but not necessary) when assembling this unit.
Tools required for assembly: screwdriver and level.
Tools not included.
