FACTORY SET OUTPUT OPTIONS
22
DUAL RELAY OR DUAL SSd OUTPUT MODELS

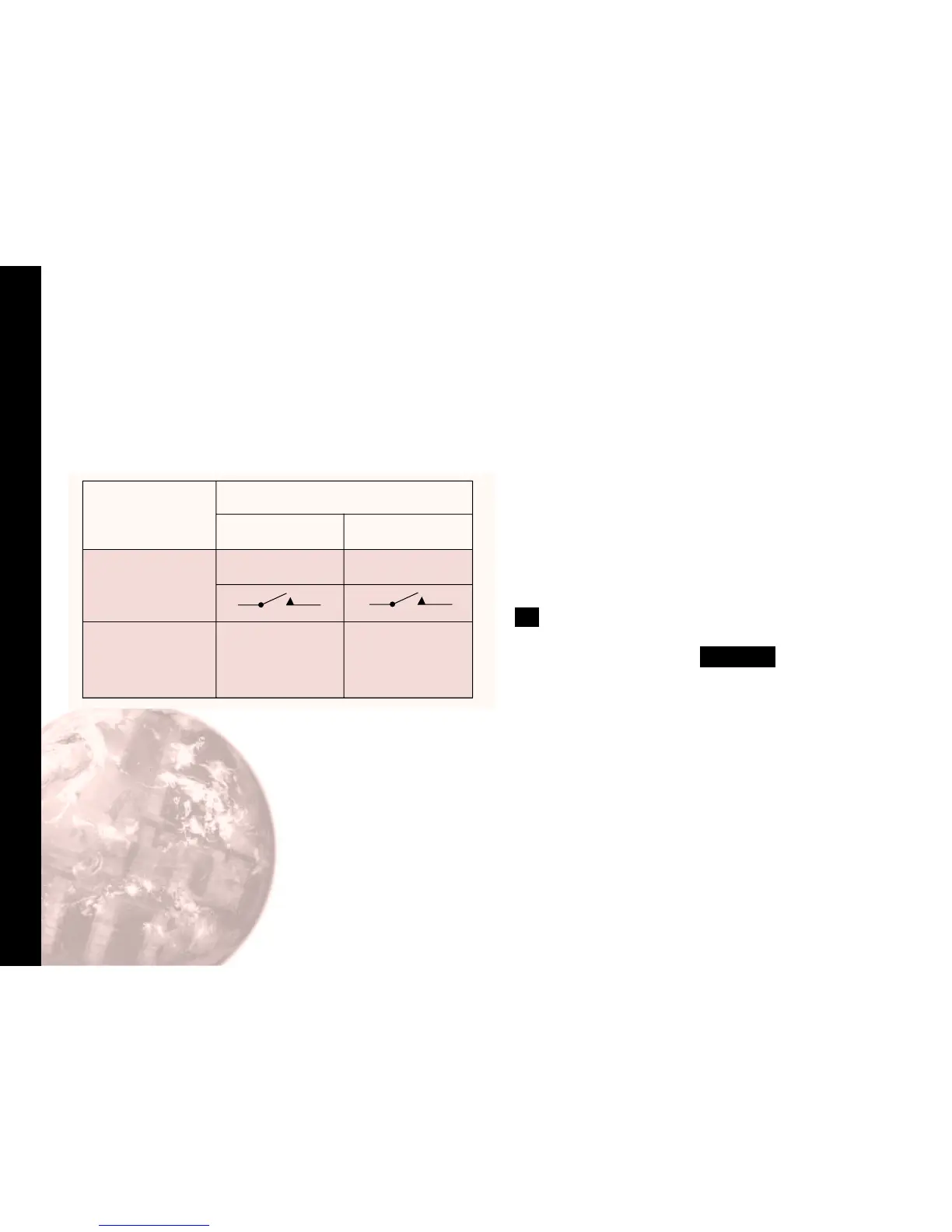

The table below details the factory set output options. rLY2
is a 1A electromechanical relay, and SSd1/SSd2 is an
identical second SSR drive output.
QUICK START (page 1a) or SET-UP (page 5)
follow steps 1 and 2 ignore step 3 and proceed
straight to step 4.
Factory Option 3311/9311
offers the ability to change
the allocation of SP1 to terminals 5 and 6.
To make this selection during the initial configuration in
either QUICK START (page 1b) or SET-UP (page 5), start from
step 3.
3 TO SELECT SP1 (Main setpoint output device)
From the alternating display SP1D and
rLY1 press
and hold ✱ button then press the ▲ once to display
rLY2.
Product
Code
Terminals
3456
3311/9311
3322/9322
rLY1 (2A) rLY2 (1A)
SSd1 SSd2
(+) (-) (+) (-)
Factory Options 3311/9311 and 3322/9322 pre-
allocate SP1 to terminals 3 and 4.
Note:
Output device rLY/rLY1 is rated 2A
Output device rLY2 is rated 1A
