Calira EVS 17/12-DS/IU User Manual

Trautmann GmbH & Co. KG -ApparatebauCALIRA
Lerchenfeldstr. 9 87600 Kaufbeuren Tel.08341/9764-0 Fax 08341/67806
Internet: http://www.calira.de Email: info@calira.de
24
Operating instructions
EVS17/07-DS/IU und EVS17/12-DS/IU
Fuses

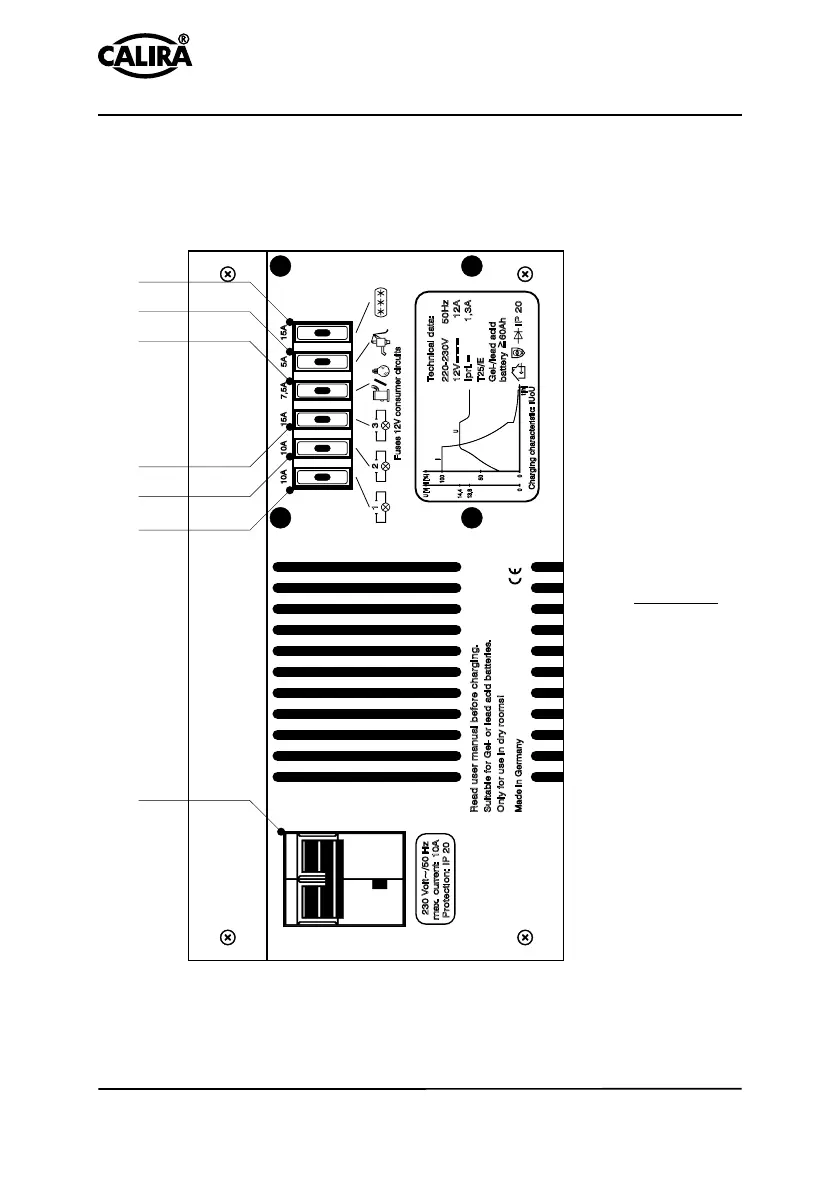

Fig. 1: Fuses
1
2 3 4 5 6 7
1 Circuit breaker 230V
2 Flat plug-in fuse for consumer circuit 1
3 Flat plug-in fuse for consumer circuit 2
4 Flat plug-in fuse for consumer circuit 3
5 Flat plug-in fuse for heating/immediate light
6 Flat plug-in fuse for water pump
7 Flat plug-in fuse for refrigerator
10A
7,5A
15A
10A
15A
5A
Fuses 12V consumer circuits
1
2
3
Technical data:
220-230V
50Hz
12V===
12A
Ipri.=
1,3A
Gel-/lead acid
battery
> =
60Ah
Charging characteristic: IUoU
0
0
U [V]
13.8 14.4
50
I [%]
100
I
t [h]
U
T25/E
IP 20
Suitable for Gel- or lead acid batteries. Only for use in dry rooms! Read user manual before charging.
Made in Germany
230 Volt~/50 Hz
Protection: IP 20
max. current: 10A
