Connecting a 6-pole plug connector
The illustration (Fig. 7) shows the contacts available in the
6-pole plug connector. Connect the 6-pole plug connector
according to the connection diagram.
Make sure that the contact pins engage securely with the
plug connector! Loose contact pins can lead to
malfunctions or short-circuiting.
If the cable length exceeds 3 m, it may be advisable to increase its cross-section
by one step.
First connect the cables to your users, refrigerator, heating etc. Only then make
the connection to the device.
Insert the plug connector into the socket provided on the device (Fig. 2). The
plug connectors can only be inserted and locked into the correct socket and in
the correct position. Make sure that the locking engages securely. To withdraw
the connector plug, the locking must be released by pressing the two wings
together.

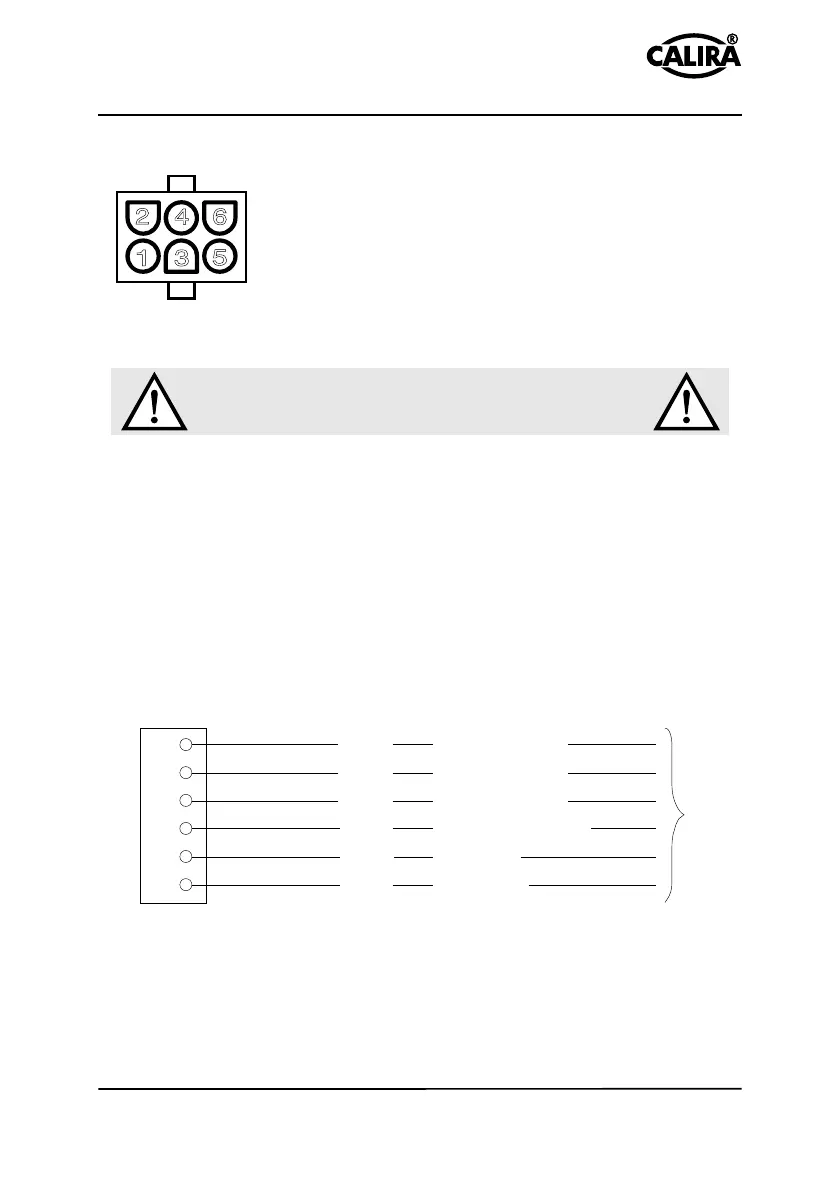

Fig. 7: 6-pole connector
Fig. 8: Connecting diagram 6-pole plug connector
5
6
3
4
2
1
Only use the specified cross-sections and
fuses with the correct rated current!
1
2
3
4
5
6
Water pump
Heating/ Immediate light
+ Refrigerator
1,5 mm
2
2,5 mm
2
1,5 mm
2
1,5 mm
2
1,5 mm
2
1,5 mm
2
+ 12 V Consumer 3
+ 12 V Consumer 2
+ 12 V Consumer 1
to the distributor
