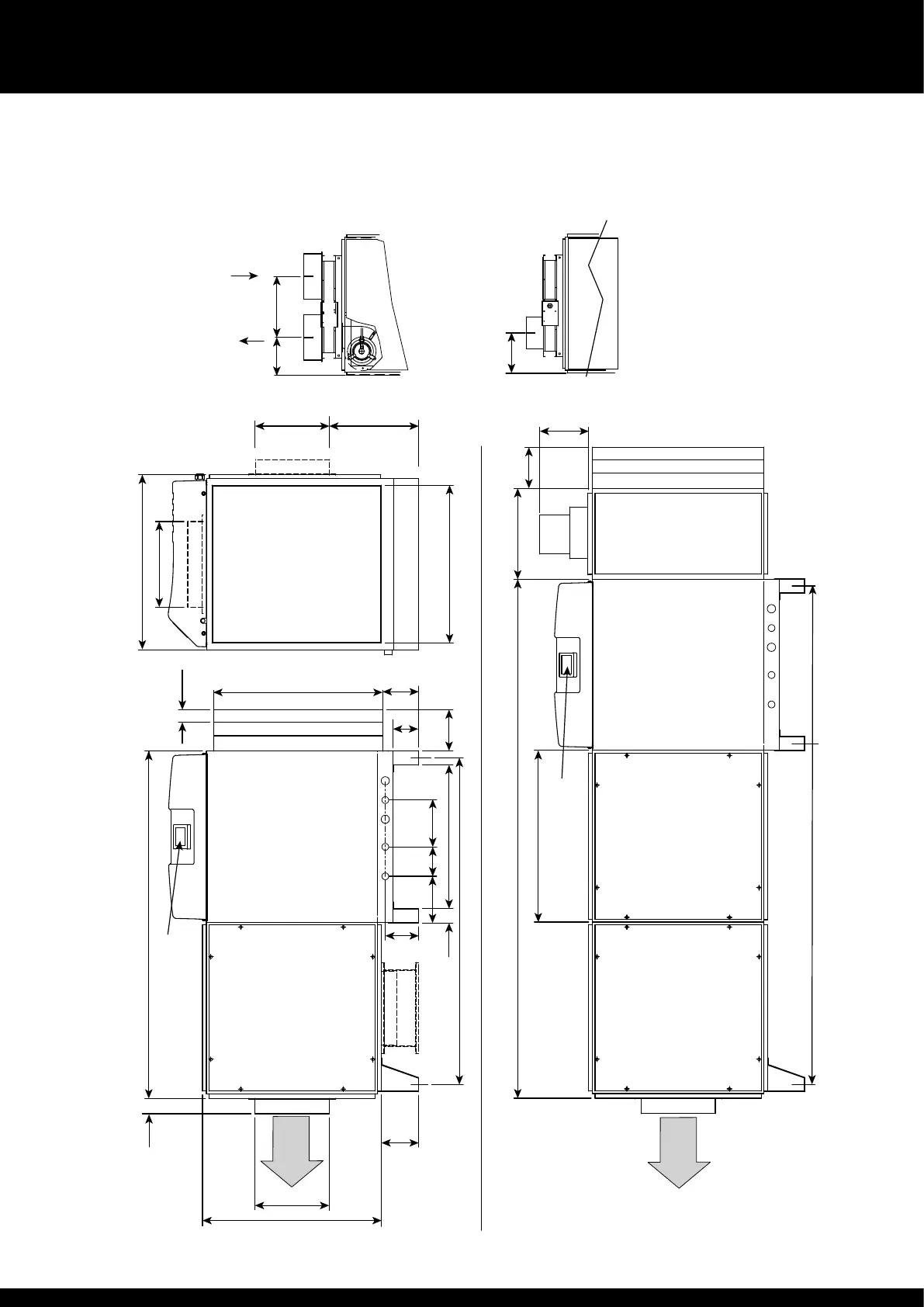

VARIHEAT AA SYSTEM OWNER INSTALLATION MANUAL
600/900 horizontal versions
Negative pressure module
1 spigot
diameter 157mm
Fresh air module spigot detail
(View from air on)
2 spigots
diameter 225mm
302
187
Spigot Spigot
Damper
203
Fresh
air in
Exhaust
air out
Fresh air
module
Service panel
670
2024 355
160
Air filter access panel
Variheat wi fresh air module,
negative pressure module
and/or resistance heater module
Resistance heater module
(if reqd) in is position only
Service panel
190
Service panel
Spigots
See
right
Supply air to
pool hall
LPHW in ¾" BSPM
LPHW out ¾" BSPM
Drain ¾" BSPM
Electric box assembly
Service panel
Touchscreen User Interface
1943
Variheat wiout optional modules
289
60
698
Service panel
1274
Service panel
182
115 183
130
160
560
56
662
Air filter access panel
50
148
1354
100
140
Return air from pool hall
333
Supply air to
pool hall
615
683.5
289
Alternative
supply air positions
349
Alternative
supply air position
LPHW in ¾" BSPM
LPHW out ¾" BSPM
Drain ¾" BSPM
Electric box assembly
Touchscreen User Interface
Supply air to
pool hall
