10 ARGO Digital Broadcast IP Production Console
Control Surfaces
ARGO S SURFACE

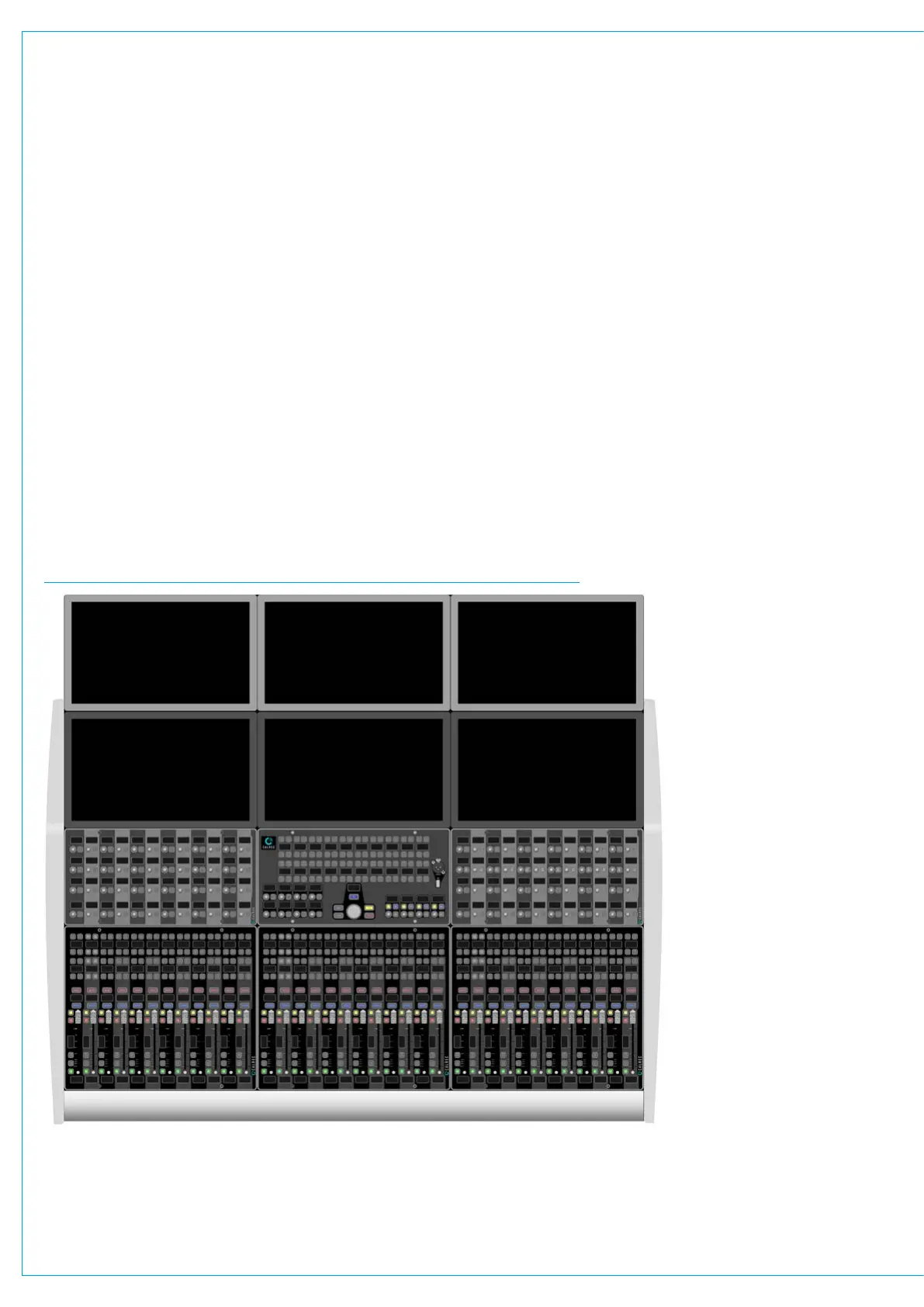

FIG 1 - 36 FADER ARGO S SURFACE WITH 1 ROW OF ADDITIONAL PANELS
There are currently two variants of Argo
Control surfaces.
The surface shown below is known as
an Argo S and is the smaller of the two
surfaces.
The chassis is designed to support from
two to eight 12 fader wide sections which
supports up to a 96 fader wide surface.
Each section can be fitted with:-
• IU6576 standard 12 fader panel
placed at the bottom of the section.
1 x additional control panel above this
which can be fitted with either:-
• CA6575 Wild Assign panel, which
provides 48 rotary control cells each
with a built in switch, its own mini TFT
display and soft button.
• IU6577 Short Fader panel, which
provides an additional 12 short
throw Faders/Cut buttons/Access
buttons/24 x 4 button control cells
each with a mini TFT displays and a
variety of other mini TFT displays.
• MY6574 Monitor panel, which
provides rotary controls for the
various loudspeaker outputs with mini
TFT displays/20 x 4 button control
cells each with a mini TFT display,
TB Mic socket and USB port.
Above the control panels is fitted:-
• MU6572 Touch display TFT panel.
This is a 1920px X 1080px display
with a multi touch TFT screen which
is used to show the current
++operational displays and provide
On-Screen touch controls.
The top of each section is fitted with:-
• MD6573 Meter TFT panel.
This also has a 1920px X 1080px
display and is primarily used to show
audio data on meters on the panel.
The Argo S console shown below is a
36 fader wide surface with 3 standard
fader panels, 2 wild assign panels and a
monitor panel.
Note: The following blanking panels are available if the customer requires user custom panel or blank panel areas:
NN6605 Standard Fader panel blank, NN6606 Short/Wild/Monitor panel blank and NN6607 Touch TFT panel blank.
These will fit either the Argo S or Argo Q surfaces.
