30 ARGO Digital Broadcast IP Production Console
Impulse Processing Core
DSP Carrier Module
This module carries up to four DSP
mezzanine modules, which provide
scalable DSP processing capacity. The
carrier also provides high bandwidth
interconnect between the mezzanine
modules as well as lower level
management and power distribution.
The module also controls the 2 large fans
mounted on the front of the module. Two
LED indicators appear on the front of the
module , one to show the ‘Module OK’
status. If the module LED lights solid
green this indicates that the module is
OK, but if it lights solid red this indicates
that the module is not OK.
The other LED shows the ‘Fan’ status,
if the Fan LED lights solid green this
indicates that the Fans are OK, but if it
lights red this indicates a Fan failure.
• Mezzanine DSP – The mezzanine DSP
module provides a hugely scalable DSP
processing resource.

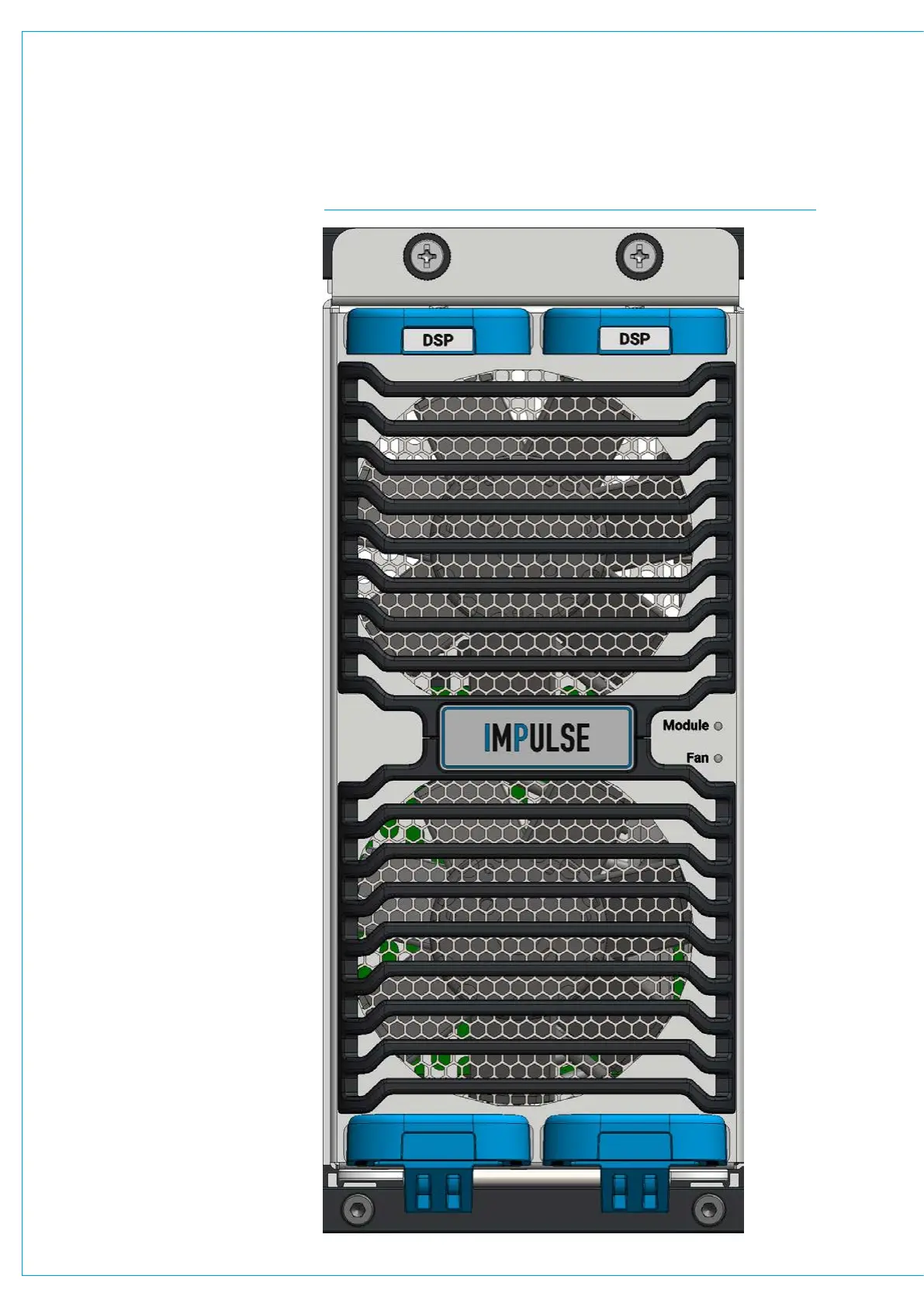

FIG 4 - UD6415 IMPULSE DSP MODULE - FRONT VIEW
DSP LED Status
Indicators
<-1 Module OK
<-2 Fan Ok
