ARGO AUDIO I/O MODULE OPTIONS

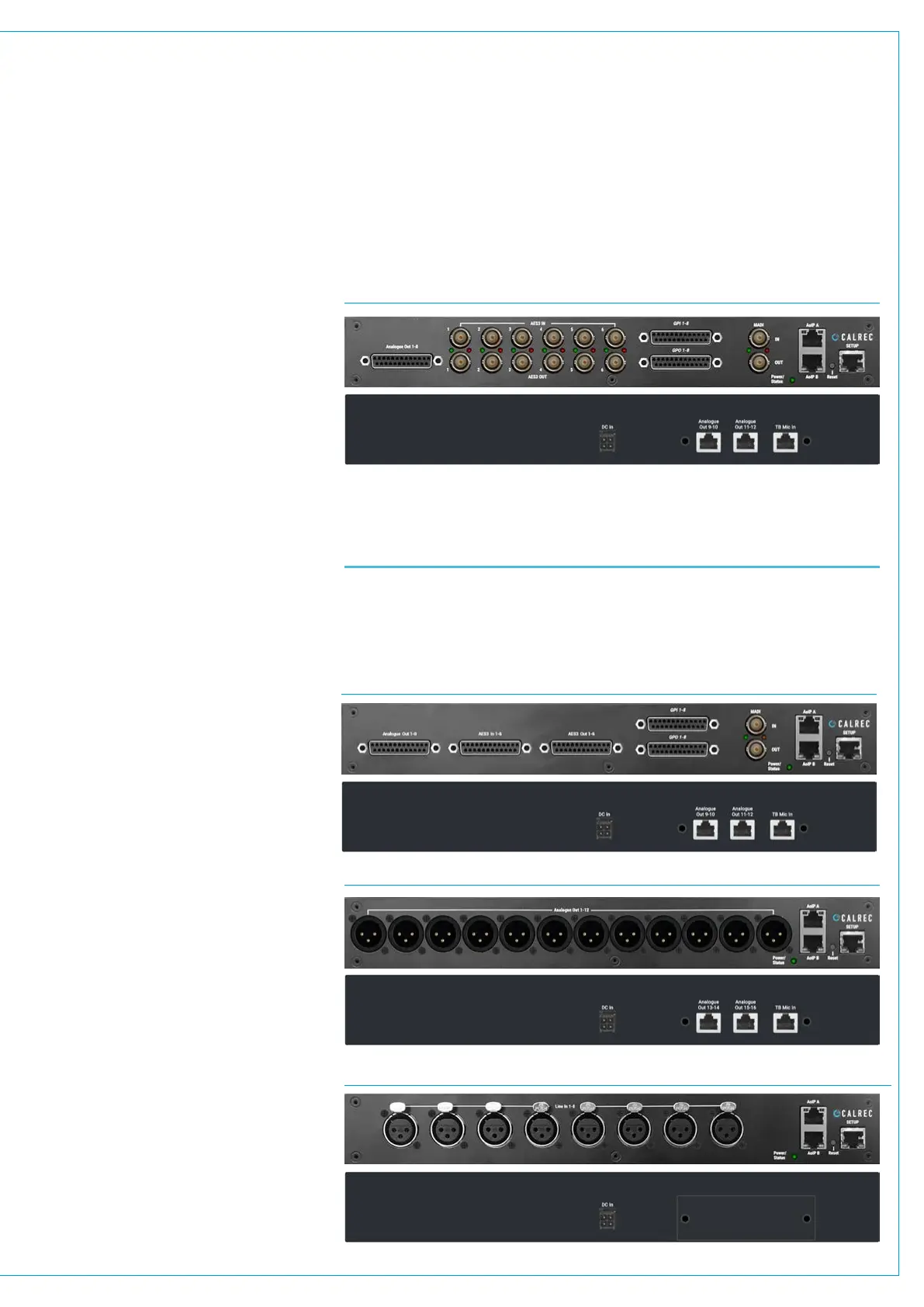

FIG 1 - ARGO AOIP DEVICE - JB6549 COMBO I/O MODULE FRONT & BACK
FIG 3 - ARGO AOIP DEVICE - DA6544 LINE OUT 12 I/O MODULE FRONT & BACK
FIG 4 - ARGO AOIP DEVICE - AD6548 MIC/LINE IN 8 INPUT MODULE FRONT & BACK
Argo systems have a number of Audio
I/O Module options that can be fitted
in the rear of each console (1 per
section).
The JB6549 & JD6569 Combo I/O
modules shown in Fig 1 & Fig 2 provide
the following I/O options:-
Analogue I/O same on both variants
• 8 - Analogue Line Outputs on the
front of the Module on D-25 Female
connector using standard Tascam
pinout.
• 4 - Analogue Line Outputs on the
rear of the Module on 2 x Stereo
RJ45 connectors using Studio Hub
pinout.
• 1 - Analogue Talkback Mic Input on
the rear of the Module on a RJ45
connector using StudioHub+ pinout.
MADI I/O same on both variants
• 1 - 64 channel MADI Output with
SRC port on the front of the module
on a BNC connector.
• 1 - 64 channel MADI Input with
SRC port on the front of the module
on a BNC connector.
The DA6544 Line Out 12 I/O module
shown in Fig 3 provides the following I/O
options:-
Analogue I/O
• 12 - Analogue Line Outputs on the
front of the Module on XLR-Male
connectors.
• 4 - Analogue Line Outputs on the
rear of the Module on 2 x Stereo
RJ45 connectors using Studio Hub
pinout.
• 1 - Analogue Talkback Mic Input on
the rear of the Module on a RJ45
connector using StudioHub+ pinout.
The AD6548 Mic/Line In 8 Input module
shown in Fig 4 provides the following I/O
options:-
Analogue Input only
• 8 - Analogue Mic/Line Inputs on the
front of the Module on XLR-Female
connectors.
• No StudioHub+ RJ45 connectors
fitted on this module type.
AES I/O On JB6549 as shown above
• 6 - Digital AES3 Stereo Output
ports on the front of the module on
Unbalanced BNC connectors.
AES I/O On JD6569 as shown below
• 6 - Digital AES3 Stereo Output ports
on the front of the module on a D-25
Female connector using standard
Tascam pinout.
• 6 - Digital AES3 Stereo Input ports
with SRC on the front of the module
on Unbalanced BNC connectors.
• 6 - Digital AES3 Stereo Input ports
with SRC on the front of the module
on a D-25 Female connector using
standard Tascam pinout.
All the Audio I/O modules are fitted with
primary (AoIP A) and secondary (AoIP B)
RJ45 port connections and a 3rd RJ45
port connection used for setting up the
IP addresses of the Audio I/O module.
The modules have a hardware Reset
button and a Power/Status indicator to
show the operational status of the module.
FIG 2 - ARGO AOIP DEVICE - JD6569 COMBO I/O MODULE FRONT & BACK
