38 ARGO Digital Broadcast IP Production Console

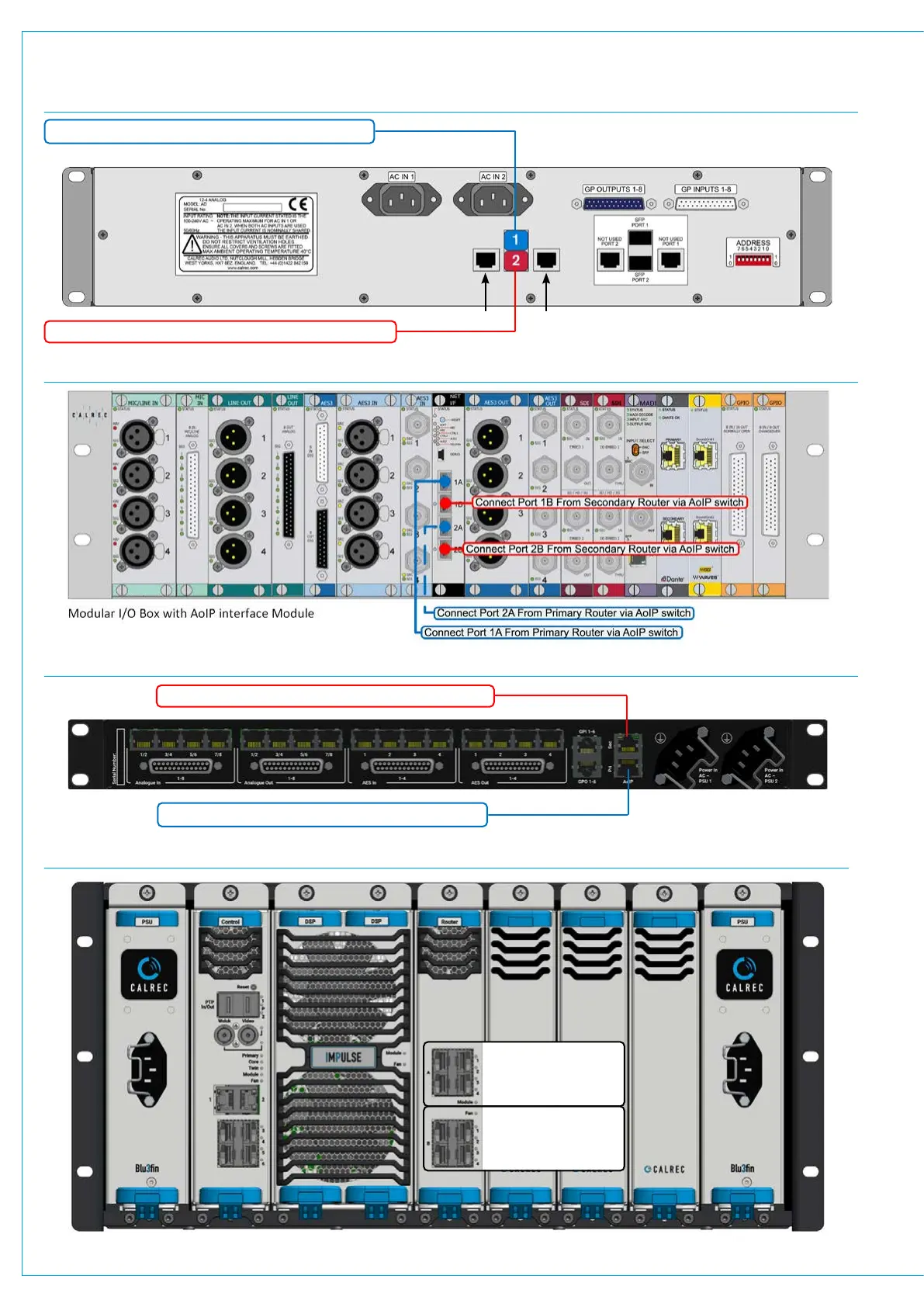

Connection Information
FIXED FORMAT AOIP I/O, REAR INTERFACE EXAMPLE
Connect Port 1 from Primary Router via AoIP switch
Connect Port 1 from Secondary Router via AoIP switch
*No Connection
*No Connection
MODULAR AOIP DEVICE I/O, CONTROLLER CARD FRONT INTERFACE
IMPULSE CORE- ROUTER A/B I/O PORTS (PRIMARY CORE CONNECTIONS BLUE/SECONDARY CORE CONNECTIONS RED
TYPE R AOIP DEVICE I/O, REAR INTERFACE EXAMPLE
Connect Port from Secondary Router via AoIP switch
Connect Port 1 from Primary Router via AoIP switch
Primary
Router 1
Ports
1A-4A
Primary
Router 1
Ports
1B-4B
Secondary
Router 1
Ports
1A-4A
Secondary
Router 1
Ports
1B-4B
OR
OR
