14 ARGO Digital Broadcast IP Production Console
Control Surfaces

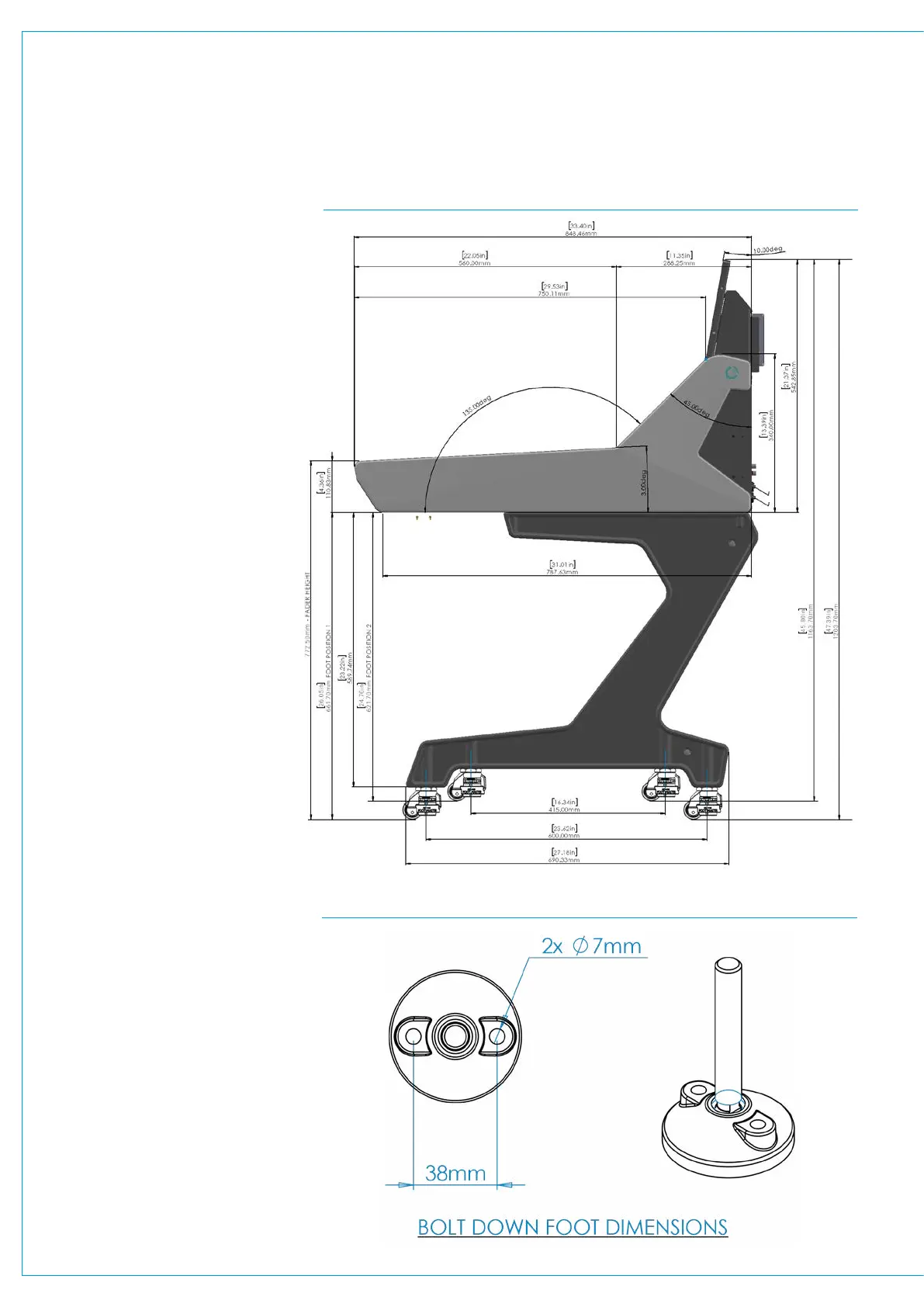

FIG 6 - BOLT DOWN OPTION FOR OB
FIG 5 - FLOOR STAND FITTED CASTORS, END ELEVATION ARGO SFloor stand options - Castors
The floor stands have been designed to
cater for various height options.
The 'Mobile' floor stand type, as shown
in Fig 5 for Argo S & Fig 7 for Argo Q
on the next page has castors fitted
which allow the consoles to be moved
to different locations as required. The
castors may be placed in two different
positions to allow for either a 772mm
nominal fader surface height in "Foot
Position 1" or a 732mm nominal fader
surface height in "Foot Position 2".
Note: the castor stands are taller than
their studio equivalents, sitting the
control surface 32mm [1.26'] higher.
Floor stand options - Bolt-Down
To provide the option of securing the
control surface to the floor by its stand,
as required when fitted in mobile or
outside broadcast units, the OB style
stand shown replaces the adjustable
feet with bolt down feet as shown in
Fig 6 below right. The 'OB' version
allows for the stand to be bolted to
the floor, typically for use in mobile or
outside broadcast units.
Note: the 4 bolt down feet are
designed to be secured to the floor
with 2 x 7mm set screws or bolts per
foot on a 38mm pitch.
