SHORT FADER PANEL - IU6577
IU6577 - ARGO S & ARGO Q SHORT FADER PANEL
PANEL CONNECTOR LAYOUT Connections
This panel has two separate connectors for
power and control placed on the back of
the unit. The Short Fader panel connects
to the UN6539 section processor which
provides both power via a 4 pin 12v DC
connector and control data via a USB
3 Type B connector which uses the
Superspeed pairs to provide 2 x LVDS
outputs on each USB 3.0 port for Mini-
TFT data to the Control Surface Modules.
The USB 2.0 legacy pair in the USB
3.0 connector transports surface
control events between panels and host
processor.
The IU6577 Short Fader panels can
be fitted in the Argo S/Argo Q central
control area, for the Argo S, one row
of this panel type can be fitted and
for the larger Argo Q, two rows of this
panel type can be fitted to make up
the required console layout.

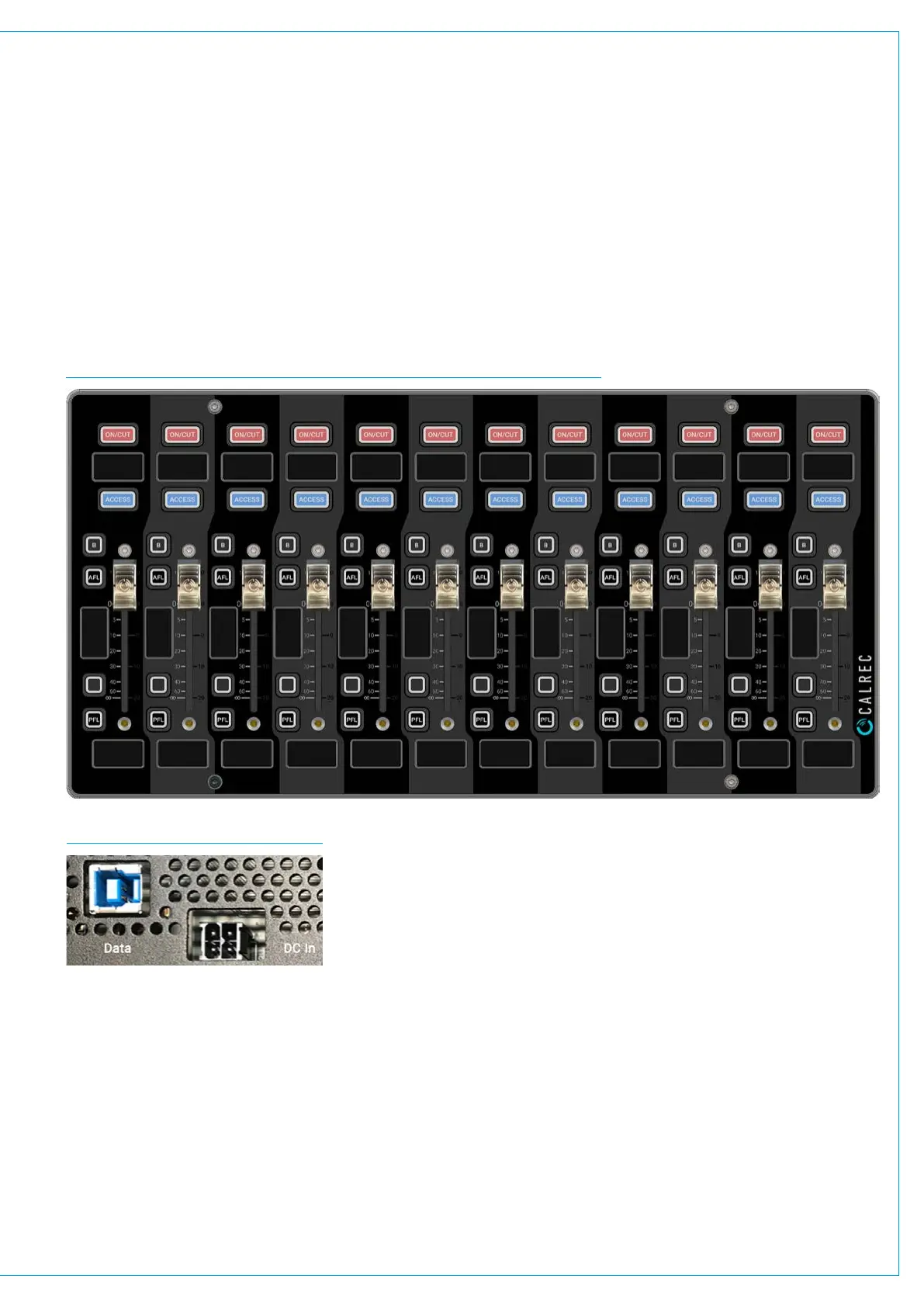

The IU6577 is 378.5mm wide x 190mm
high and is fitted with 12 x 65mm throw
touch sensitive faders. Each short fader
strip also has the following controls/
displays from bottom to top:-
Mini TFT layer display, PFL button, 1 user
defined button, Mini TFT meter display,
AFL button, B-Layer button (if required),
Access button, Mini TFT fader display,
ON/CUT button which can be software
configured to light when the fader path
is active (ON) or when the fader path is
muted (CUT).
