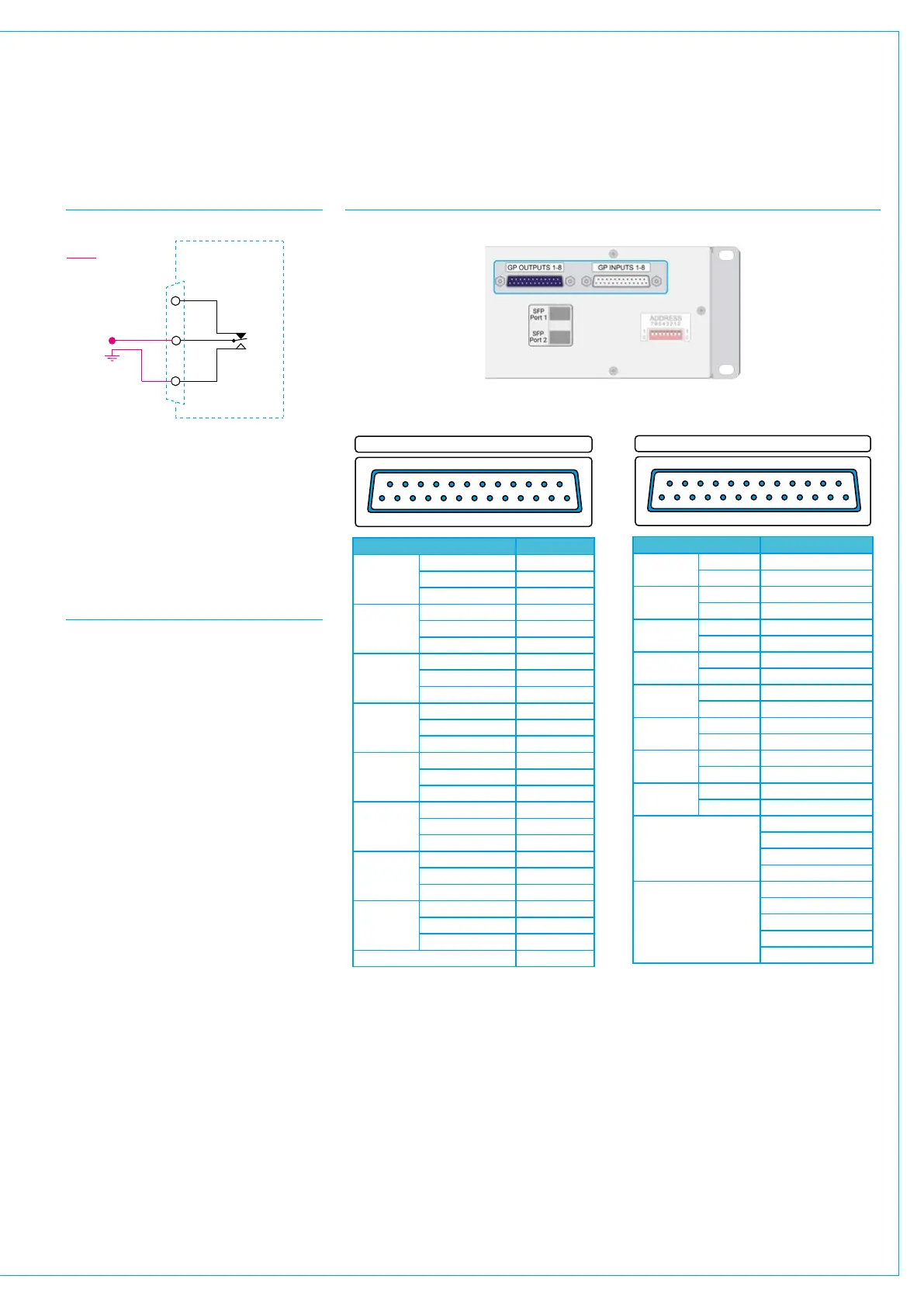

Calrec ARGO - Dry Closure Only Outputs

41
changeover relay
(shown inactive)
Calrec GPIO card
External wiring
Com
NO
NM
• Changeover relay shown wired to
provide a ground when activated.
The ground can come from a 0V pin
in the GPIO card connector itself
as long as the receiving equipment
has the same ground reference. For
WY5858 and WY5859 common
setup see above.
FIXED FORMAT GPIO CONNECTIONS - 8 IN, 8 OUT
Function Pin
Opto 1
+ 1
- 14
Opto 2
+ 15
- 3
Opto 3
+ 4
- 17
Opto 4
+ 18
- 6
Opto 5
+ 7
- 20
Opto 6
+ 21
- 9
Opto 7
+ 10
- 23
Opto 8
+ 24
- 12
+5V
2
5
8
11
Ground
16
19
22
25
13
25 Pin Male D-Type - Wiring side of connecting cable
252423222120191817161514
13121110987654321
Function Pin
Relay 1
Common 1
Normally Open 14
Normally Made 2
Relay 2
Common 15
Normally Open 3
Normally Made 16
Relay 3
Common 4
Normally Open 17
Normally Made 5
Relay 4
Common 18
Normally Open 6
Normally Made 19
Relay 5
Common 7
Normally Open 20
Normally Made 8
Relay 6
Common 21
Normally Open 9
Normally Made 22
Relay 7
Common 10
Normally Open 23
Normally Made 11
Relay 8
Common 24
Normally Open 12
Normally Made 25
Ground 13
25 24 23 22 21 20 19 18 17 16 15 14
13 12 11 10 9 8 7 6 5 4 3 2
25 Pin Female D-Type - Wiring side of connecting cable
1
• Calrec connector is female,
requiring male terminated cable
• Calrec connector is male,
requiring female terminated
cable
CHANGEOVER OUTPUT EXAMPLE #2
Dry closure only outputs
The WY5859 version of modular I/O card
provides the same 8 inputs along with 16
dry closure only relay connections that
short when activated (NO+ & NO-).
Pin-outs for all GPIO card types are
shown the on following pages:
