42 ARGO Digital Broadcast IP Production Console
Connection Information

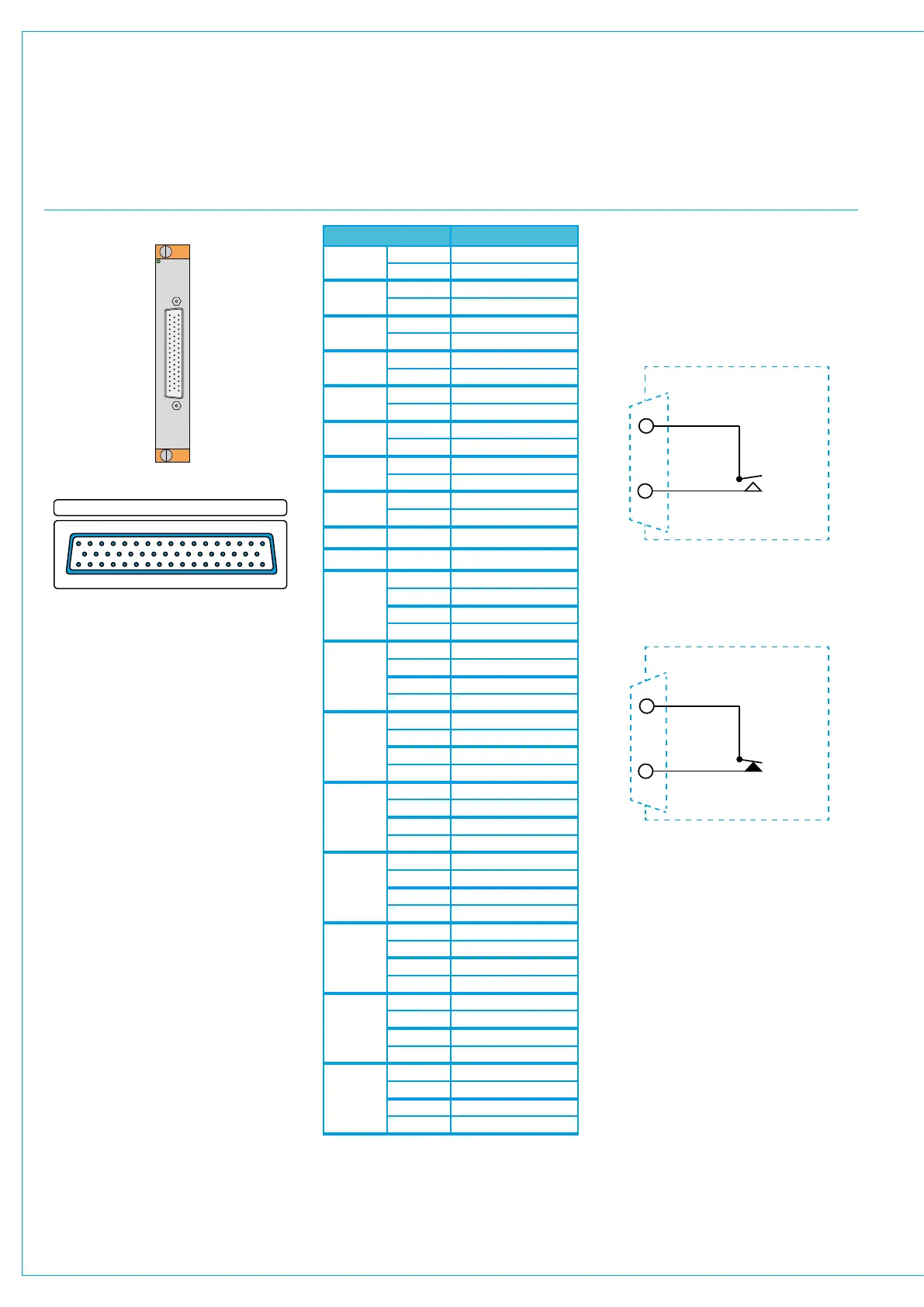

WY5858 - MODULAR GPIO 8 IN + 8 OUT
Function Pin
GPI 1
+ 1
- 34
GPI 2
+ 18
- 2
GPI 3
+ 35
- 19
GPI 4
+ 3
- 36
GPI 5
+ 20
- 4
GPI 6
+ 37
- 21
GPI 7
+ 5
- 38
GPI 8
+ 22
- 6
Supply +5 V 17
Supply 0 V 50
50 Pin Male D-Type - Wiring side of connecting cable
5034
18 33
171
STATUS
8 IN / 8 OUT
CHANGEOVER
GPIO
Function Pin
GPI 1
+ 1
- 34
GPI 2
+ 18
- 2
GPI 3
+ 35
- 19
GPI 4
+ 3
- 36
GPI 5
+ 20
- 4
GPI 6
+ 37
- 21
GPI 7
+ 5
- 38
GPI 8
+ 22
- 6
Supply +5V 17
Supply 0V 50
GPO 1
NO+ 39
NO- 23
NC+ 7
NC- 40
GPO 2
NO+ 24
NO- 8
NC+ 41
NC- 25
GPO 3
NO+ 9
NO- 42
NC+ 26
NC- 10
GPO 4
NO+ 43
NO- 27
NC+ 11
NC- 44
GPO 5
NO+ 28
NO- 12
NC+ 45
NC- 29
GPO 6
NO+ 13
NO- 46
NC+ 30
NC- 14
GPO 7
NO+ 47
NO- 31
NC+ 15
NC- 48
GPO 8
NO+ 32
NO- 16
NC+ 49
NC- 33
Normally Open
relay
Calrec GPIO card
NO+
NO-
Normally Closed
relay
Calrec GPIO card
NC+
NC-
• Closes when activated
• Opens when activated
