44 ARGO Digital Broadcast IP Production Console
Connection Information

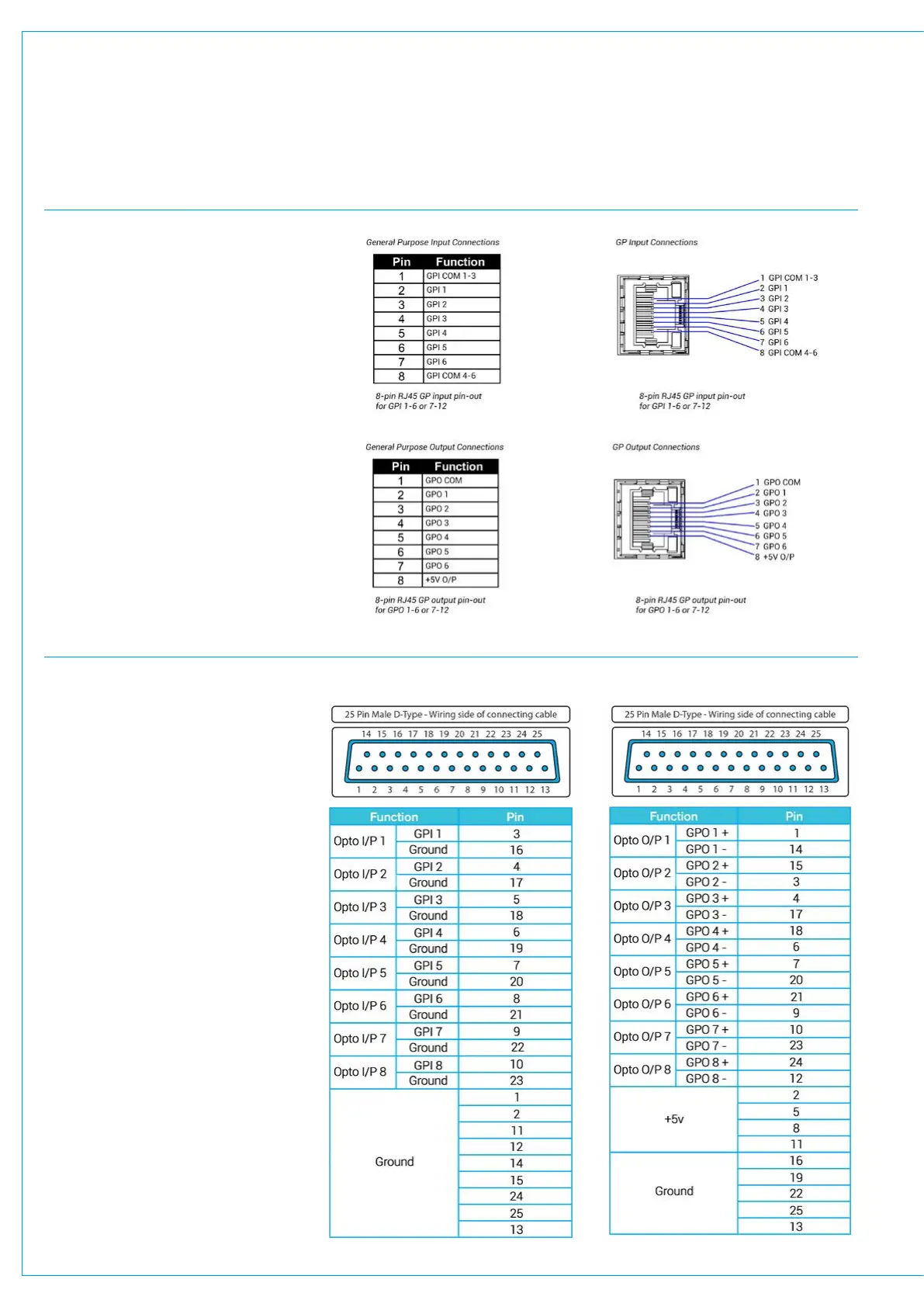

GPI RJ45 type Connector
This connector is used for 6 x GP
Inputs. Note the two Commons split as
2 connections for GPI 1-3 on Pin 1 and
GPI 4-6 on Pin 8.
This connector appears on the Type R
UR6500 Core Box x 2, AD6501 Combo
I/O Box, AD6502 Analogue I/O Box and
the JD6503 AES I/O Box.
GPO RJ45 type Connector
This connector is used for 6 x GP
Outputs. Note the Common for all the
GPO on Pin 1 and a 5V O/P is made
available on Pin 8.
This connector appears on the Type R
UR6500 Core Box x 2, AD6501 Combo
I/O Box, AD6502 Analogue I/O Box and
the JD6503 AES I/O Box.
AD6501, AD6502 AND JD6503 TYPE R GPIO CONNECTIONS 6 IN + 6 OUT
JB6549 ARGO COMBO BOX - GPIO CONNECTIONS 8 IN + 8 OUT
25 pin Female D-Type panel
connector for GPI 1-8
25 pin Female D-Type panel
connector for GPO 1-8
GPI 25 way D-type Connector
This connector is used for 8 x GP Inputs.
Note: All the pins except for the
signal pins on 3,4,5,6,7,8,9 & 10 are
grounded on the female connector
GPO 25 way D-type Connector
This connector is used for 8 x GP
Outputs.
Note: Pins 2,5,8 & 11 are connected to
+5v on the female connector and pins
16,19,22,25 & 13 are grounded on the
female connector
