10 11 1 2 3 5 7 C1
10 11 C NC

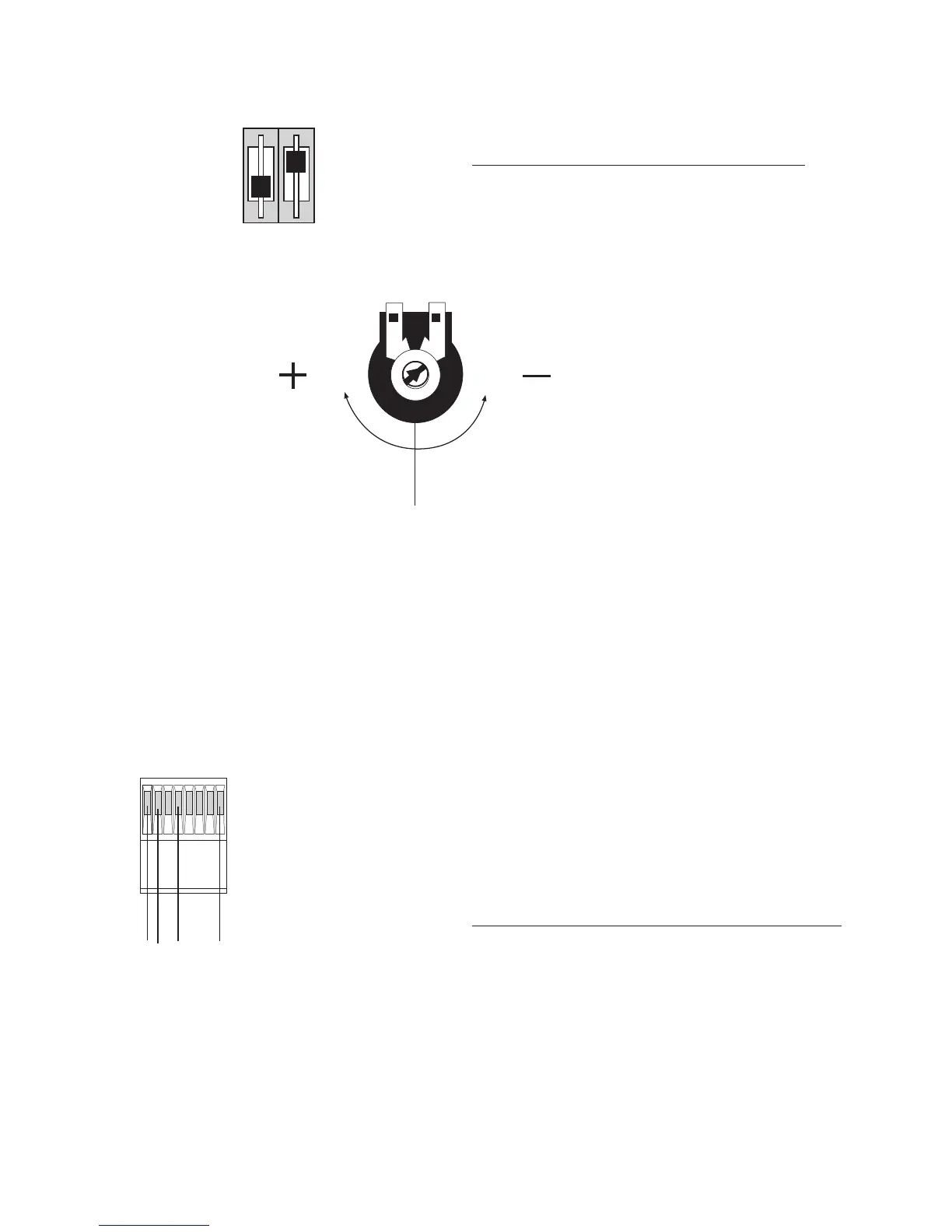

3.4 - Automatic Close & Activating Safety Photocells
FULLY ANTI-CLOCKWISE WILL APPROX. AUTOMATICALLY CLOSE THE GATES
AFTER 10 SECONDS AND FULLY CLOCKWISE WILL APPROX. CLOSE THE
GATES AFTER 80 SECONDS. A SENSIBLE SETTING IS ABOUT HALFWAY
(I.E 6 O’CLOCK POSITION) WHICH WILL AUTOMATICALLY CLOSE THE
GATES AFTER APPROX. 30 SECONDS.
6 O’CLOCK
TRIMMER
TCA
1. TO SELECT AUTOMATIC CLOSING,
SELECT DIPSWITCH 2 ON.
SET THE AUTOMATIC CLOSING TIME BY ADJUSTING POTENTIOMETER TCA
Fig 25
Fig 26
Fig 27
ON
OFF
1
1
2. FOR RE-OPENING DURING CLOSING.
REMOVE HARD WIRE LINK BETWEEN
2 & C1 AND INSERT SAFETY BEAM
WIRES AS SHOWN.
20
