STAGE 3
COMMISSIONING THE CONTROL PANEL

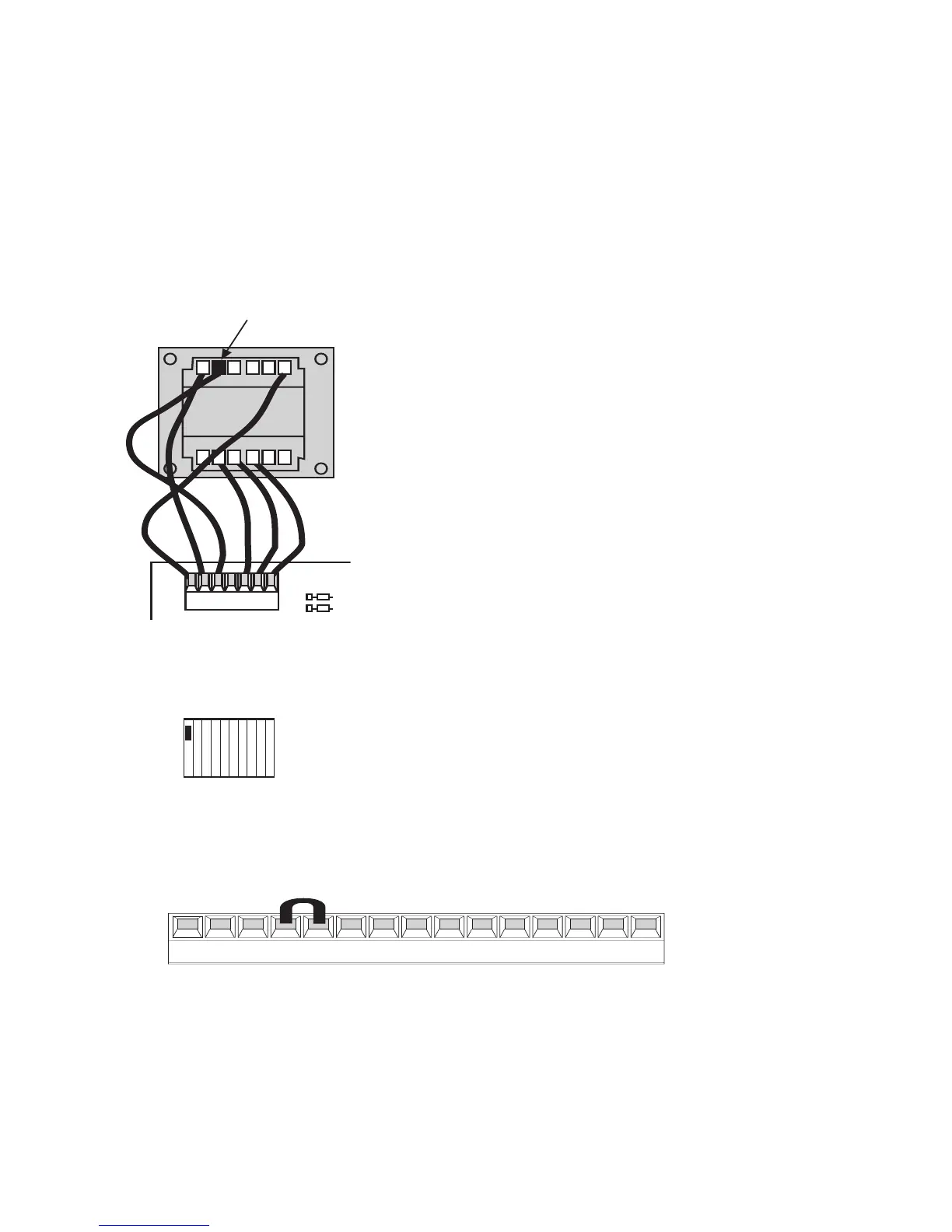

3.1 - Initial Wiring & Control Panel Setup
1. CONNECT POWER TERMINALS L1 - L2
AND A SUITABLE EARTH (L2 BEING LIVE!)
2. SELECT THE MOTOR POWER SETTING ON
THE TRANSFORMER TO LEVEL 1 FOR
COMMISSIONING
Fig 17
3. SELECT DIPSWITCHES 1 & 2 OFF FOR
COMMISSIONING
4. ENSURE HARD WIRE LINK IS FITTED
BETWEEN TERMINALS 1 & 2 AND
2 & C1
ON
OFF
1 2 3 4 5 6 7 8 9 10
Fig 18
Fig 19
10 11 S 1 2 3 3P 4 5 7 2 C1 CX B1 B2
17
