1.2 - Basic Cable Layout

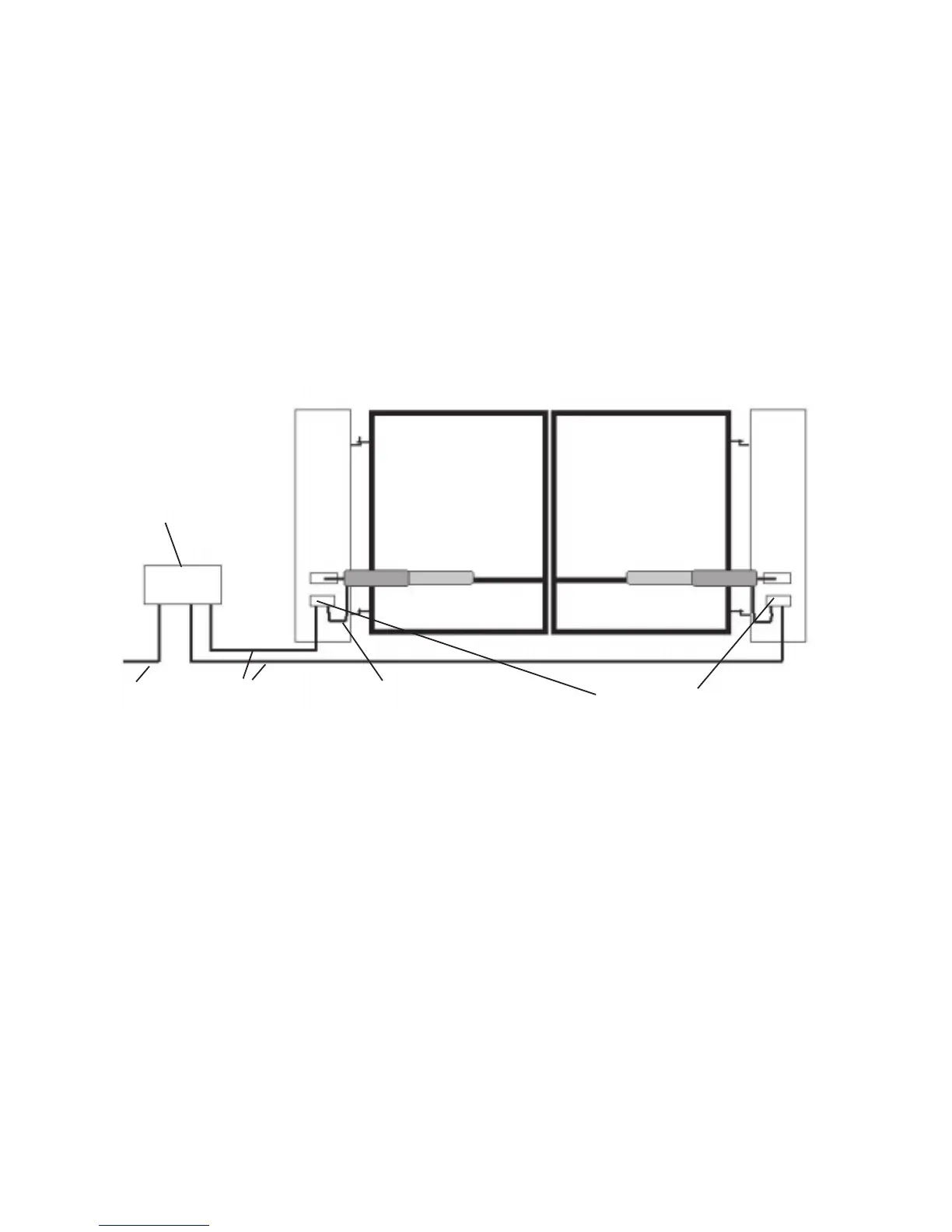

THIS DIAGRAM DETAILS THE BASIC CABLE LAYOUT FOR
A PAIR OF MOTORS.
THE POWER SUPPLY TO THE CONTROL PANEL SHOULD BE LIVE AND
PROTECTED IN ACCORDANCE WITH THE 16TH EDITION ELECTRICAL
REGULATIONS. THE SUPPLY SHOULD BE RATED AT A MINIMUM OF 6 AMPS.
WHEN INSTALLING WIRES OUTDOORS THE CABLE APPROACH TO ALL
DEVICES MUST BE FROM BELOW TO CREATE A “DRIP-LOOP” AND THEREBY
AVOID UNNECCESSARY WATER INGRESS.
4
Fig 2
WHEN INSTALLING LOW VOLTAGE CABLE AROUND THE GATEWAY IT IS
ADVISED TO PUT ALL LOW VOLTAGE CABLE IN EITHER DUCTING OR
ALKATHENE PIPING. ALL CABLE JOINTING SHOULD BE CARRIED OUT
ABOVE GROUND.
CONTROL PANEL
HOUSING
240V A.C
3 CORE
1.5mm SWA
4 CORE
1.5mm FLEX
JOINT BOX
To Next Page
