5

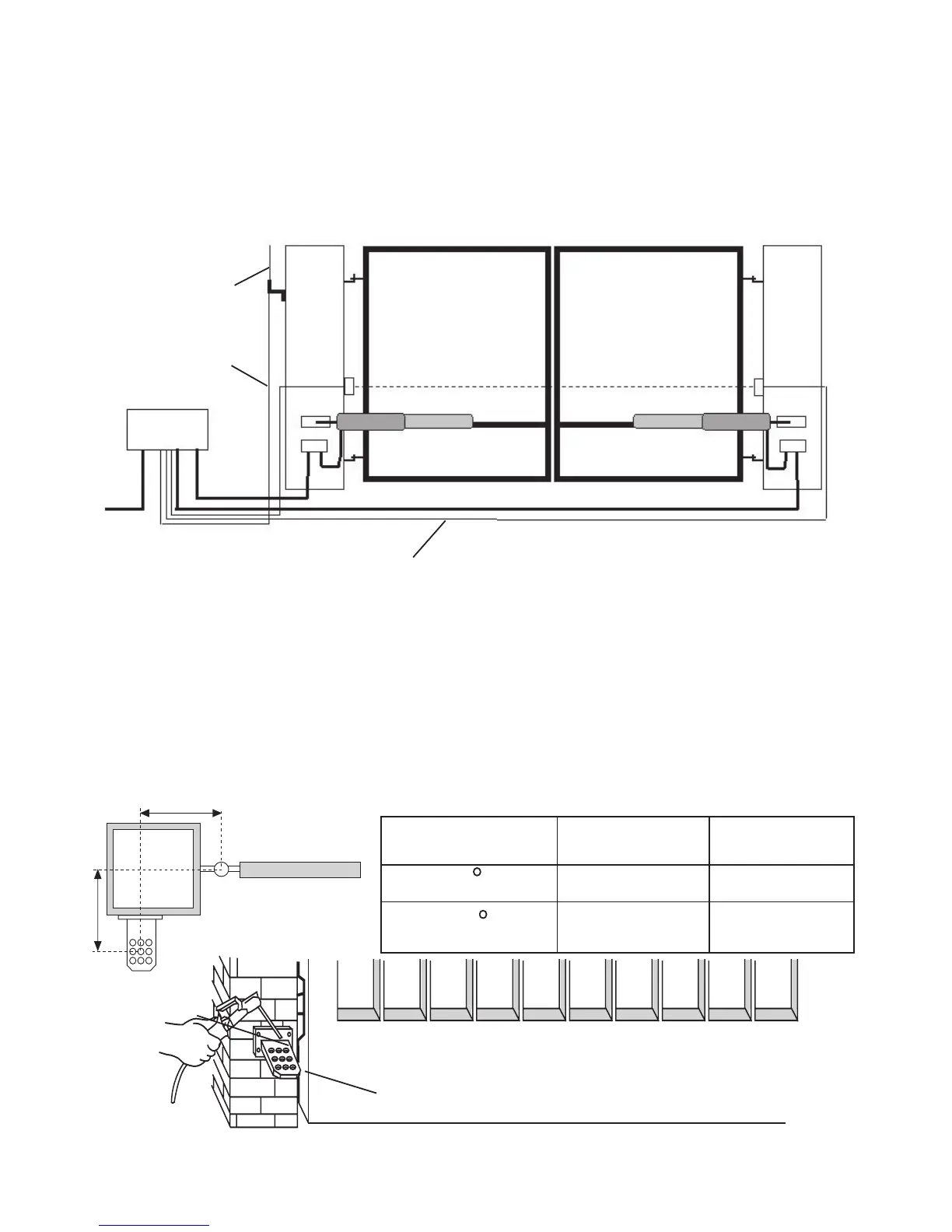

1.3 - Low Voltage Cable Layout
ALL CAME ACCESSORIES CAN BE WIRED 0.2m STRANDED CABLE (BUGLAR
ALARM TYPE). THE TUNED ANTENNA SHOULD BE WIRED WITH COAXIAL
CABLE (RG59).
WELD THE 9 HOLE BRACKET TO THE FIXING PLATE THEN SECURLEY
ATTACH THE FIXING BRACKET TO THE PIER OR POST, OBSERVE
MEASUREMENT A AND B BETWEEN THE HINGE PIN AND THE CENTRAL
HOLE IN THE BRACKET.
1.4 - Attaching Brackets
Fig 3
TUNED
ANTENNA
COAXIAL
CABLE
DOC E SAFETY
BEAMS
8 CORE 0.2mm STRANDED
CABLE TO ALL SAFETY BEAMS
Fig 4
A
REAR BRACKET
FIXING PLATE
B
Opening
A
B
mm mm
90
130
200
200
200
140
