CAME ATI KIT User Manual

7

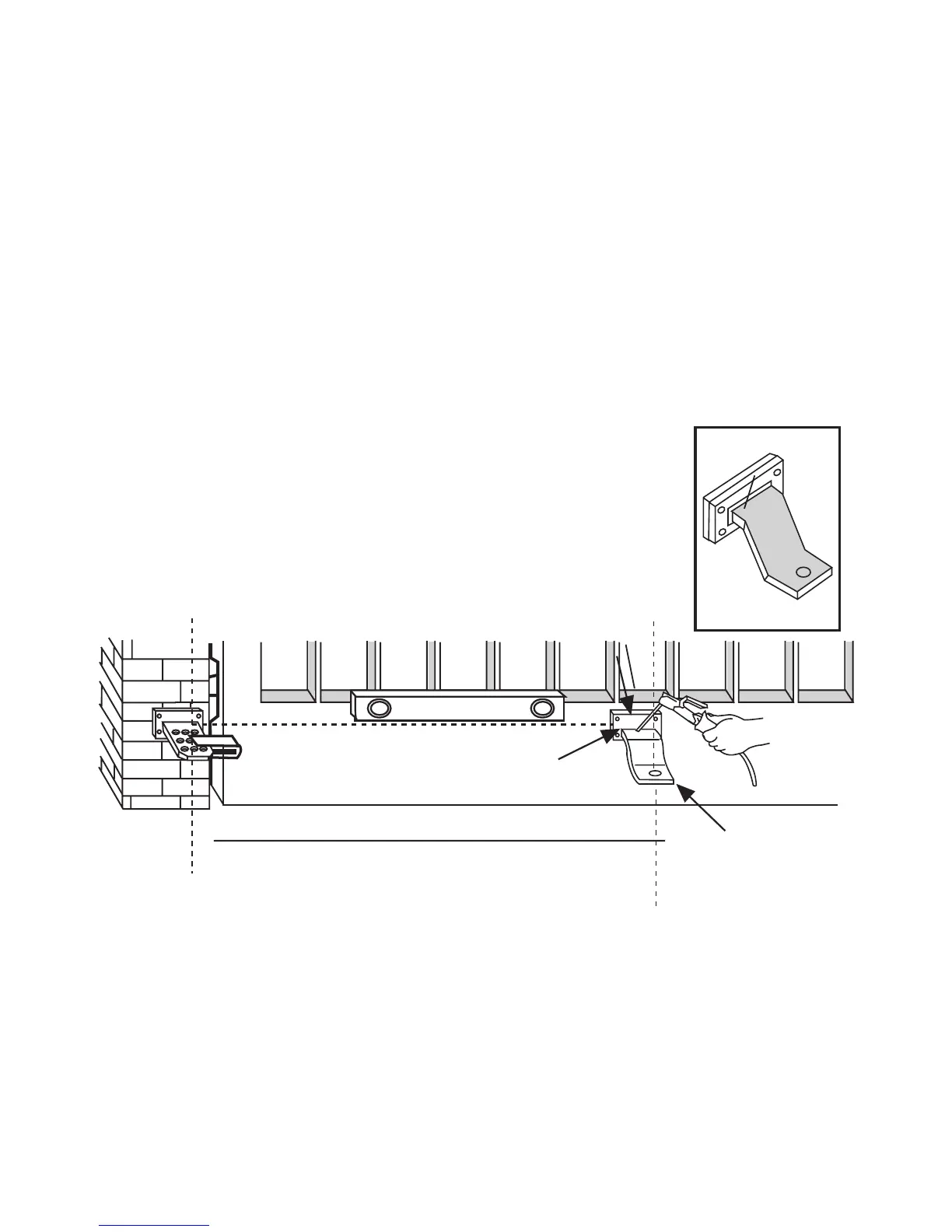

WITH THE GATE IN THE FULLY CLOSED POSITION WELD THE FRONT
BRACKET TO THE FIXING PLATE THEN ATTACH IT TO THE GATE. THE
ANCHOR PLATE MUST BE HORIZONTALLY ALIGNED WITH THE REAR
BRACKET MOUNTED ON THE PEIR OR POST ENSURING DIMENSION IS
OBSERVED.
N.B WHEN INSTALLING THE UNIT ON SPECIAL FRAMES, IT MAY BE
NECCESSARY TO FIT ADDITIONAL SPACERS WITH A MINIMUM
THICKNESS OF 10mm IN ORDER TO PREVENT CONTACT BETWEEN
THE OPERATOR AND THE GATE WING.
THICKNESS
MIN 10mm
FIXING
PLATE
LEVEL THE BRACKET
FRONT
BRACKET
E=880 mm
Fig 6
1.6 - Attaching the Front Bracket
