© CAME cancelli automatici s.p.a. - The data and information reported in this installation manual are susceptible to change at any time and without obligation on CAME cancelli automatici s.p.a. to notify users.
ENGLISH
Microswitch
bar
Microswitch unit
Microswitch actuating sled
Microswitch

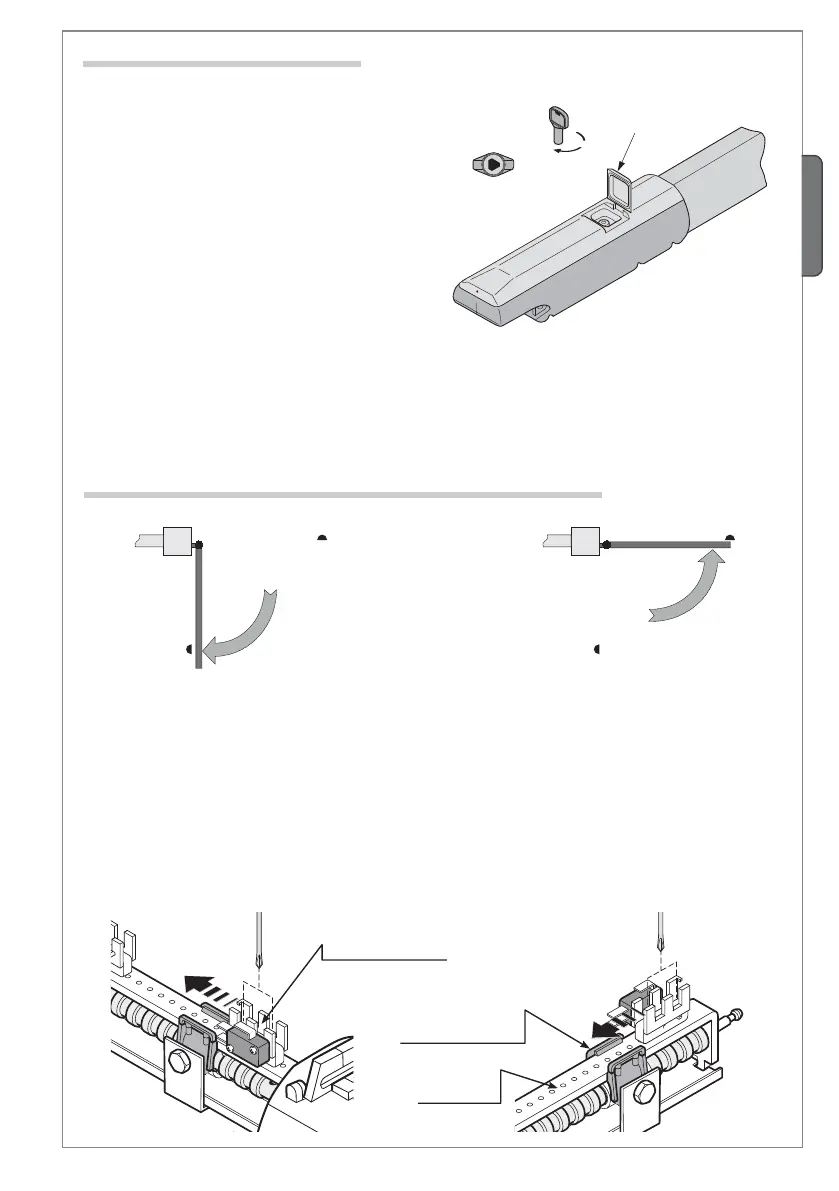

5.6 Release with customised key
Key
Door
Release only with motor stopped:
1) raise the door;
2) insert and turn key which immediately releases door;
3) manually push or pull gate leaf.
To lock gate leaf again into place just insert key again and
turn.
FOR OPENING
- Release the gearmotor and move the door to the maximum
desired open position.
Loosen the fixing screws of the opening microswitch unit.
Slide the microswitch unit along the microswitch-support rod
until it is inserted by contact on the microswitch unit actuation
runner.
Firmly fasten the microswitch unit to the gearmotor.
FOR CLOSING
With the gearmotor still released, swing the gate leaf until it is
fully shut.
Loosen the fixing screws of the closing microswitch unit.
Slide the microswitch unit along the microswitch-support rod
until it is inserted by contact on the microswitch unit actuation
runner.
Firmly fasten the microswitch unit to the gearmotor.
5.7 Adjusting micro-switches

CAME ATI series Specifications

General

Operating Temperature	-20°C to +55°C
Warranty	2 years
Power Supply	230V AC
Max Gate Weight	800 kg
Max Gate Length	5 m
Opening Time	15 seconds
Thrust	3000N
Duty Cycle	30%
Control Options	Radio control
Safety Features	Obstacle detection
Manual Release	Yes
