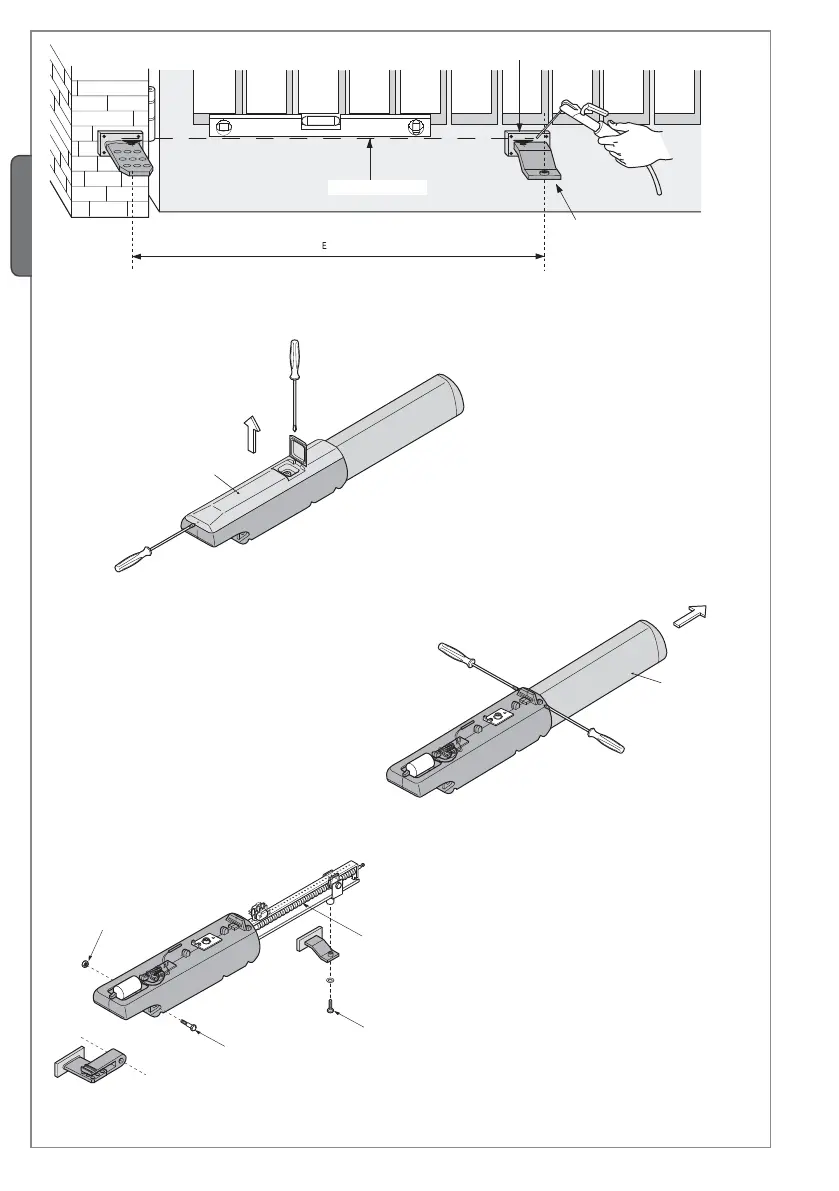

Unscrew the two screws and remove the carter.
Unscrew the two screws and remove the stem.
N.B.: upon installation we suggest lubricating (using a neutral grease) the endless screw and the bushing.
Begin fi xing the gearmotor to the two brackets.
M8 self-locking nut
Endless screw
Carter
Stem
With the gate closed apply the anchoring plate to the gate leaf, making sure that the front bracket is lined up horizontally with the
back bracket and ensuring that measurement E is met.
Level the bracket
Anchoring plate
Front bracket
