p. 14 - Manual FA00945-EN - 01/2018 - © CAME S.p.A. - Translated original instructions
RED
BLACK

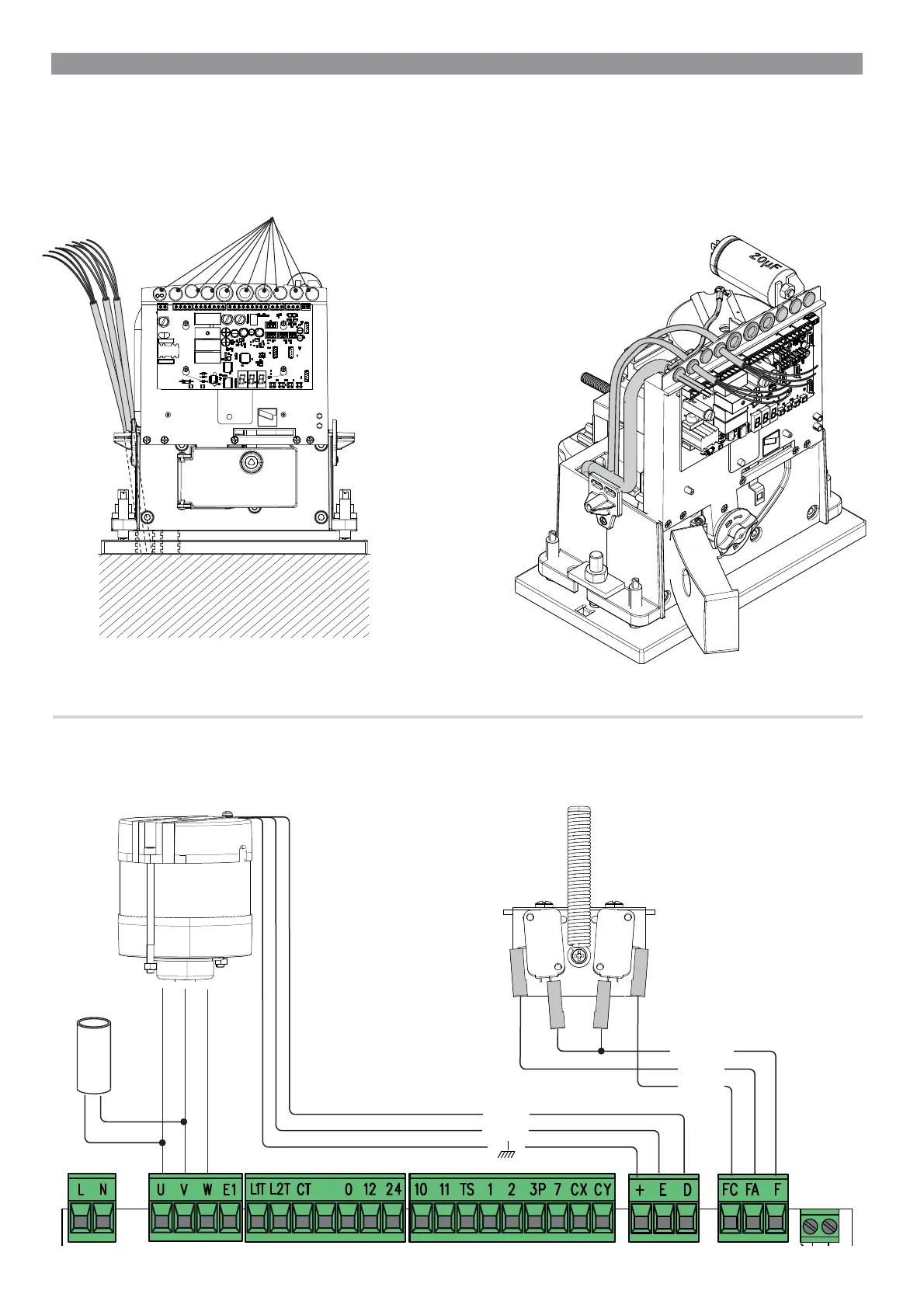

Control-board brace cable glands
ELECTRICAL CONNECTIONS
⚠
Connect all wires and cables in compliance with the law.
Before connecting all the wires, set up the cables by using cable glands on the control board brace, as shown in the figure.
⚠
The electrical cables must not touch any heated parts such as the motor, transformer, and so on.
WHITE
RED
ORANGE
Mechanical limit switch
Opening limit-switch
micro-switch
Condenser
120/230V (AC) gear motor with
Encoder
Closing limit-switch
micro-switch
FACTORY WIRING
