TRAVEL CALIBRATION
⚠
Before calibrating the gate travel, position the gate half-way, check that the maneuvering area is clear of any obstruction and check that there
are mechanical opening and closing stops.
⚠
The mechanical gate-stops are obligatory.
Important! During calibration, all safety devices will be disabled.

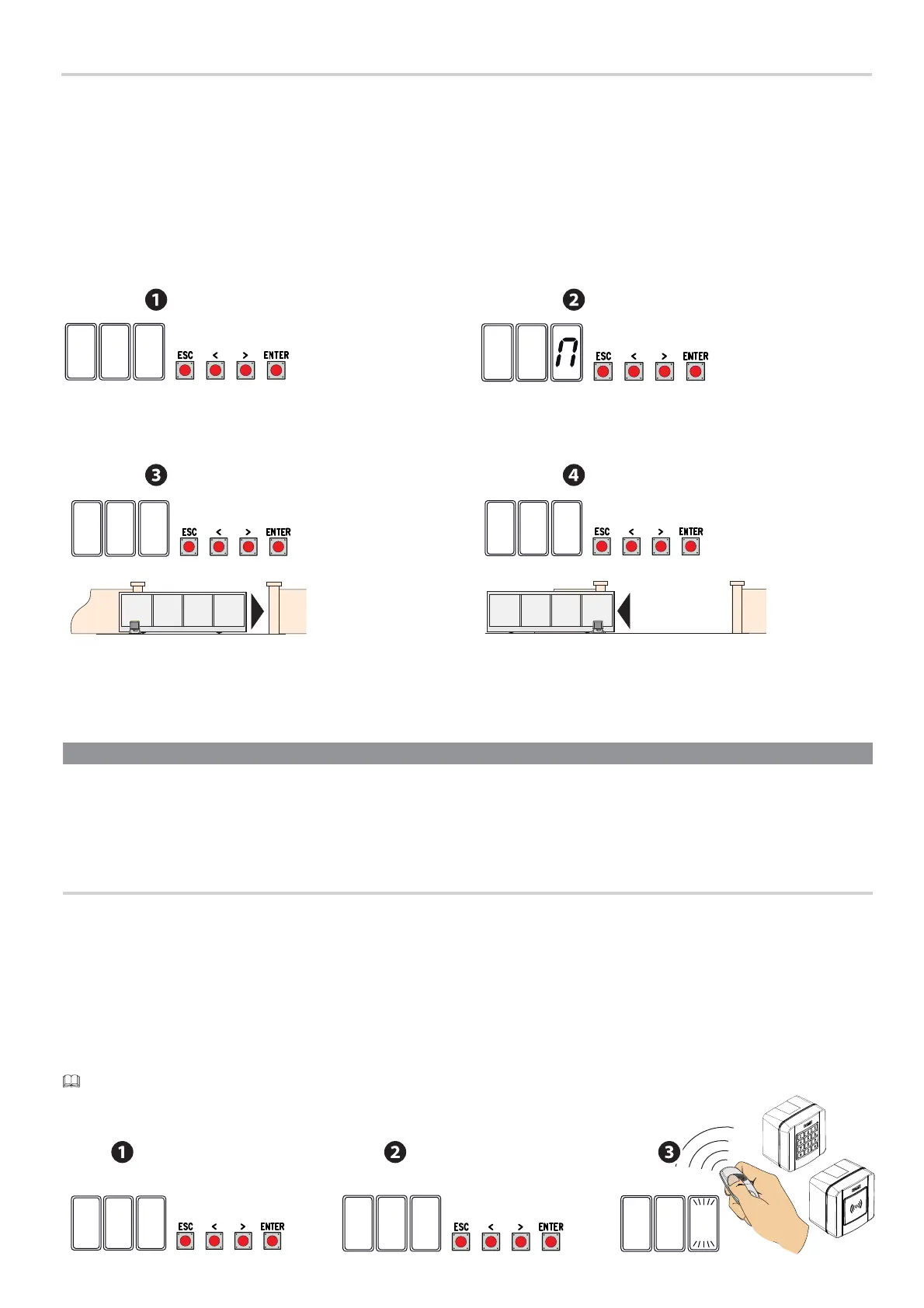

Select [A 3] window. Press ENTER to confirm. ❶
Select [ON]. Press ENTER to confirm the automatic travel calibration procedure. ❷
The gate will perform a closing maneuver until it reaches a final stop...❸
...then the gate will perform an opening maneuver until it reaches a final stop. ❹
MANAGING USERS
When adding and deleting users, the flashing numbers appearing are those numbers that are available and usable to assign to a new user (max.
250 users).
Before registering the users, make sure the AF radio card is plugged into the connector (see the paragraph called CONTROL DEVICES).
ENTERING USERS WITH AN ASSOCIATED COMMAND
Select U 1. Press ENTER to confirm. ❶
Select a command to associate to the user: The commands are:
- 1 = step-step (open-close);
- 2 = - sequential (open-stop-close-stop);
- 3 = only open;
- 4 = partial opening/pedestrian.
Press ENTER to confirm... ❷
... a number between 1 and 250 will start flashing for a few seconds. Send the code from the transmitter or other control device, such as, a
keypad selector or a transponder.❸
Note down the user entered into the LIST OF REGISTERED USERS.
