CAME BX708AGS - Component Identification and Installation Overview; Description of Parts; Standard Installation

p. 6 - Manual FA00945-EN - 01/2018 - © CAME S.p.A. - Translated original instructions

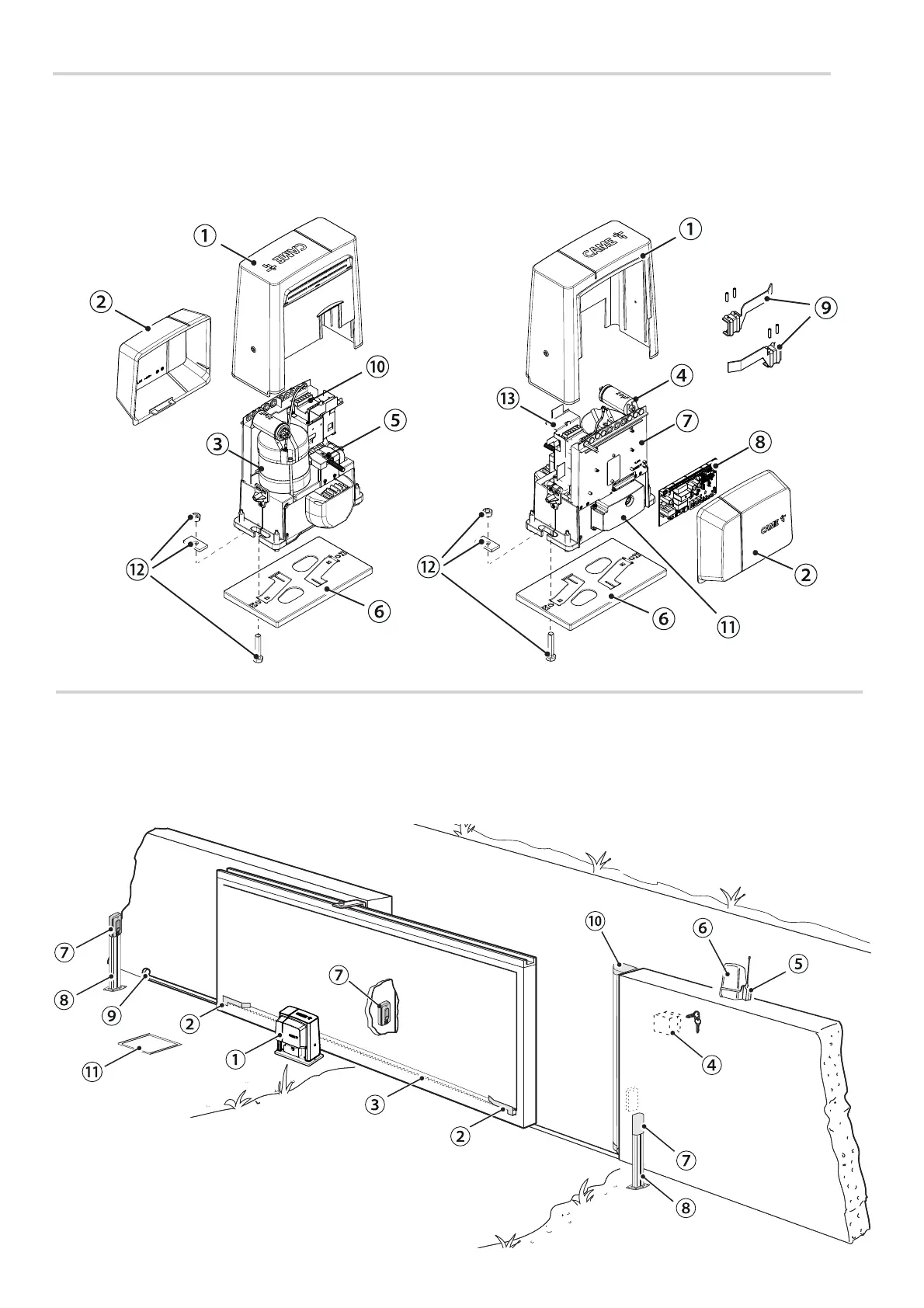

STANDARD INSTALLATION
1. Operator
2. Limit-switch fins
3. Rack
4. Key-switch selector
5. Antenna
6. Flashing light
7. Photocells
8. Posts
9. Mechanical gate stop
10. Sensitive safety-edge
11. Junction pit
DESCRIPTION OF PARTS
1. Cover
2. Front cover
3. Gear motor
4. Condenser
5. Mechanical limit switch
6. Anchoring plate
7. Control board rack
8. ZBX7N control board
9. Limit-switch fins
10. Transformer
11. Release hatch
12. Fastening hardware
13. Mounting brace for housing accessories (optional)
