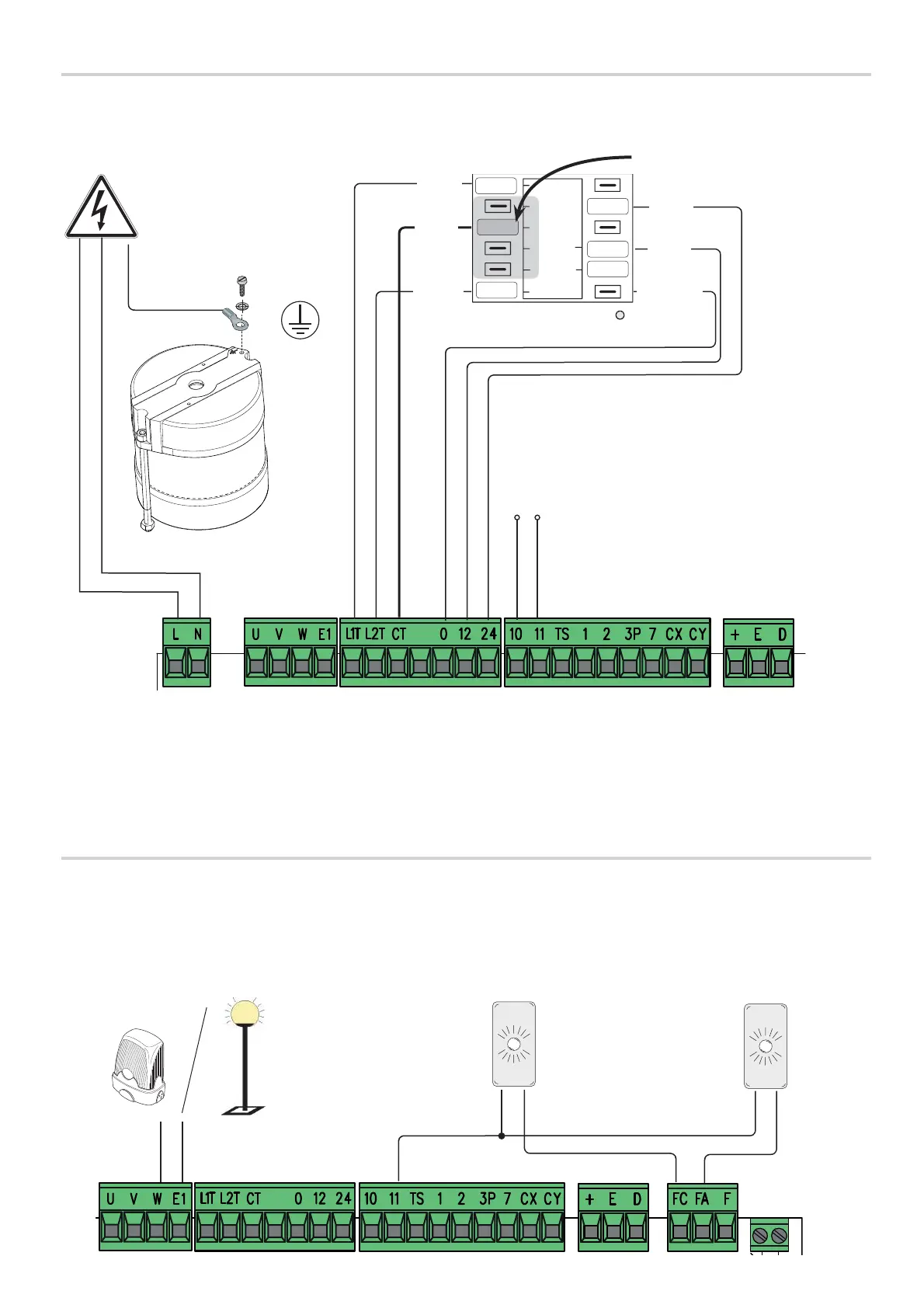

CAME BX708AGS - Power Supply and Signaling Devices; Power Supply; Signaling Devices

CAME
L2T
12
24
1
2
3
4
L1T
0
p. 15 - Manual FA00945-EN - 01/2018 - © CAME S.p.A. - Translated original instructions
Purple
Black
White
Red
Orange
Blue
Gate open warning output (contact
rated for: 24 V AC - 3 W max).
Accessories power
supply output 24 V
AC, max 20 W.

To change the motor torque, plug
the faston terminal as shown into one
of the four positions; from 1 (min.) to
4 (max.).
120 / 230 V AC 50/60 Hz
POWER SUPPLY
Flashing light connection output (contact rated for:
230 V AC - 25 W max) and/or additional light (contact
rated for: 230 V - 60 W max).
See functionF18.
SIGNALING DEVICES
Gate closed warning output (contact
rated for: 24 V AC - 3 W max).
