CAME BX708AGS - Duty Cycles; Cycles;Hour Graph; Consecutive Cycles Graph

0
1
2
3
4
5
6
7
8
9
10
11
2 2,5 3 3,5 4 4,5 5 5,5 6
55°C 20°C
0
5
10
15
20
25
30
2 2,5 3 3,5 4 4,5 5 5,5 6 6,5 7 7,5 8 8,5 9 9,5 10 10,5
20°C 55°C
p. 5 - Manual FA00945-EN - 01/2018 - © CAME S.p.A. - Translated original instructions
DUTY CYCLES
Datum
BX704AGS / BX708AGS
BX7080RGS
Cycles/hour (no.) 17
Consecutive cycles (no.) 6
The cycles calculation refers to a gate that has a standard reference length (see the intended use), that are professionally installed, free of any mechanical
issues and/or accidental friction points, and measured at 20° C, as stated in EN Standard 60335-2-103.
When using other-than-standard measurements, see the graphs below.
Number of cycles Number of cycles
Length of gate
Length of gate

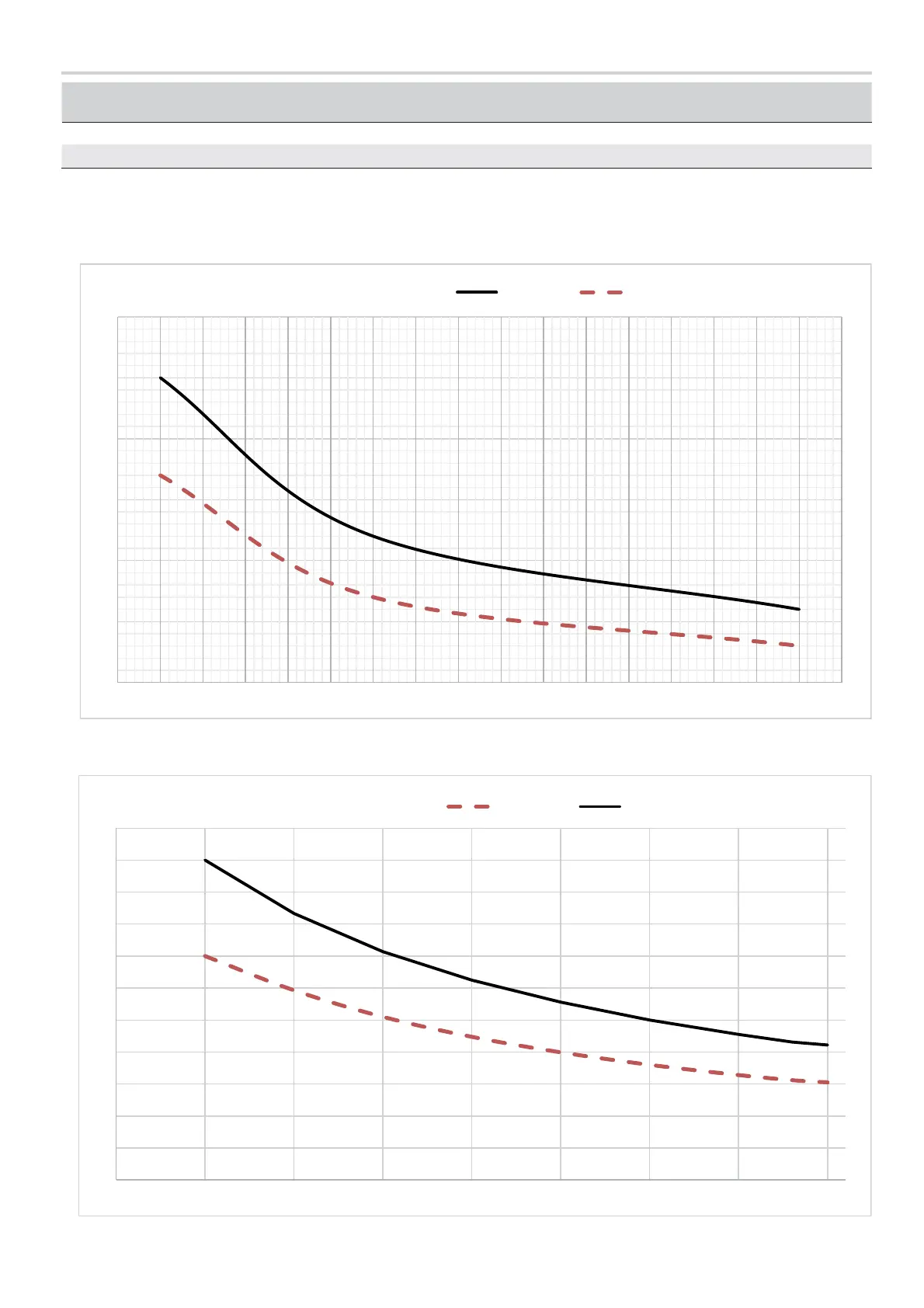

• Consecutive cycles graph
• Cycles/hour graph
