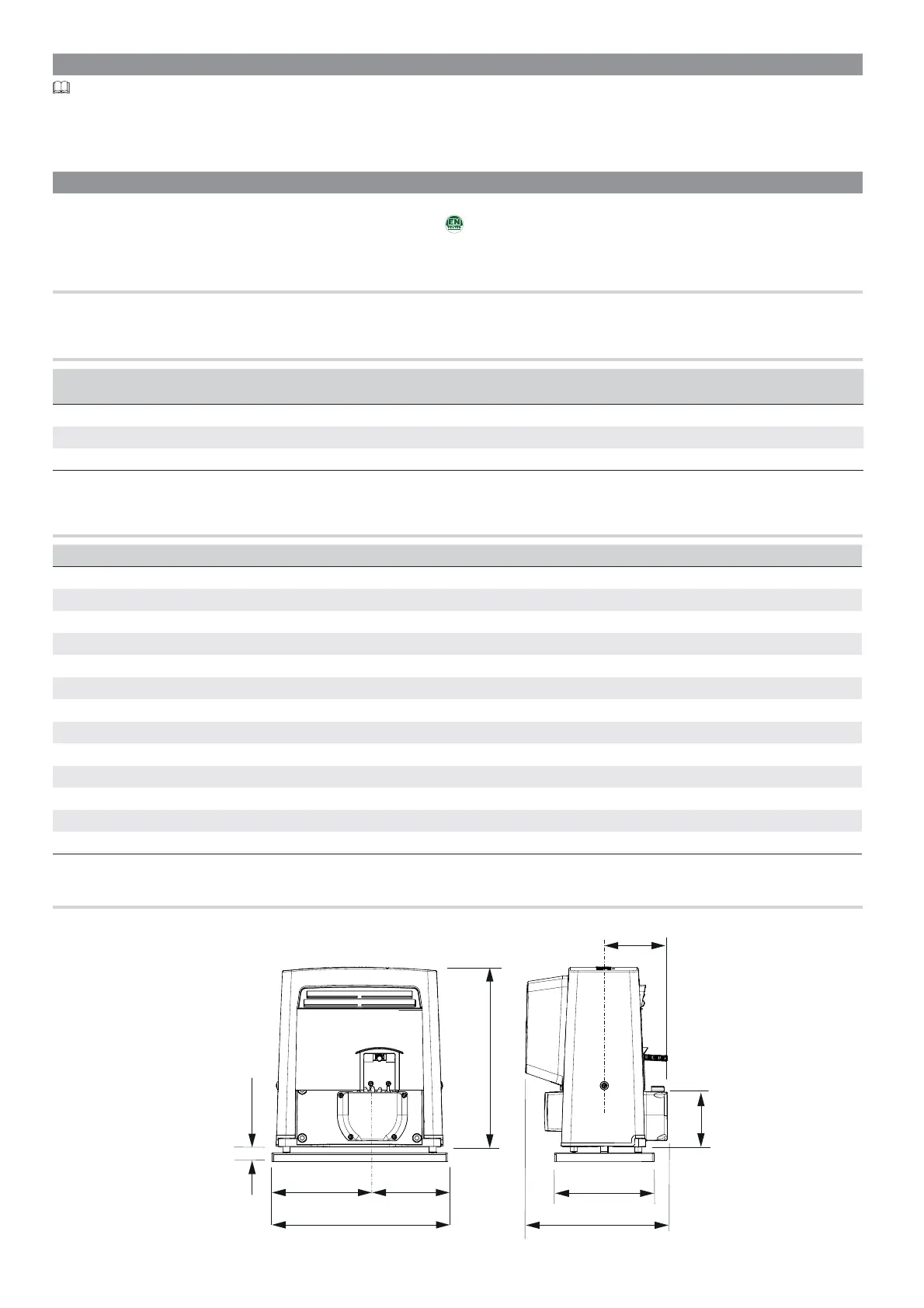

DIMENSIONS
DESCRIPTION
BX704AGS Operator (tested in compliance with EUROPEAN STANDARDS on shock forces) featuring a control board, movement control and obstruction detecting
device plus mechanical limit-switches for sliding gates weighing up to 400 kg.
BX708AGS Operator featuring a control board, movement control and obstruction detecting device plus mechanical limit-switches for sliding gates weighing up to
800 kg.
INTENDED USE
The BX704AGS operator is designed to power sliding gates in single homes; whereas the BX708AGS is also suitable for apartment blocks.
Do not install of use this device in any way, except as specified in this manual.
INTENDED USE
Model BX704AGS
BX708AGS
BX708RGS
Standard reference* length of the sliding part (m) 4
Maximum weight of the sliding part (kg) 400 800
Pinion module 4
* For other-than-standard measurements, see the following graphs.
TECHNICAL DATA
Datum BX704AGS BX708AGS BX708RGS
Protection rating (IP) 44
Power supply (V - 50/60 Hz) 230 AC 120 AC
Input voltage to motor (V - 50/60 Hz) 110 AC
Stand-by consumption (W) 2.6 2.4 2.4
Consumption with Green Power (W) 0.5
Power (W) 420 530 420
Thrust (N) 300 800 800
Opening speed (m/min) 10
Operating temperature (°C) -20 to +55
Condenser (μF) 12 20
Apparatus class I
Motor's heat protection (°C) 150
Weight (Kg) 15
KEY
This symbol shows which parts to read carefully.
⚠
This symbol shows which parts describe safety issues
☞
This symbol shows which parts to tell users about.
The measurements, unless otherwise stated, are in millimeters.
