Power supply
Make sure the mains power supply is disconnected during all installation procedures.
Before working on the control panel, cut off the mains power supply.

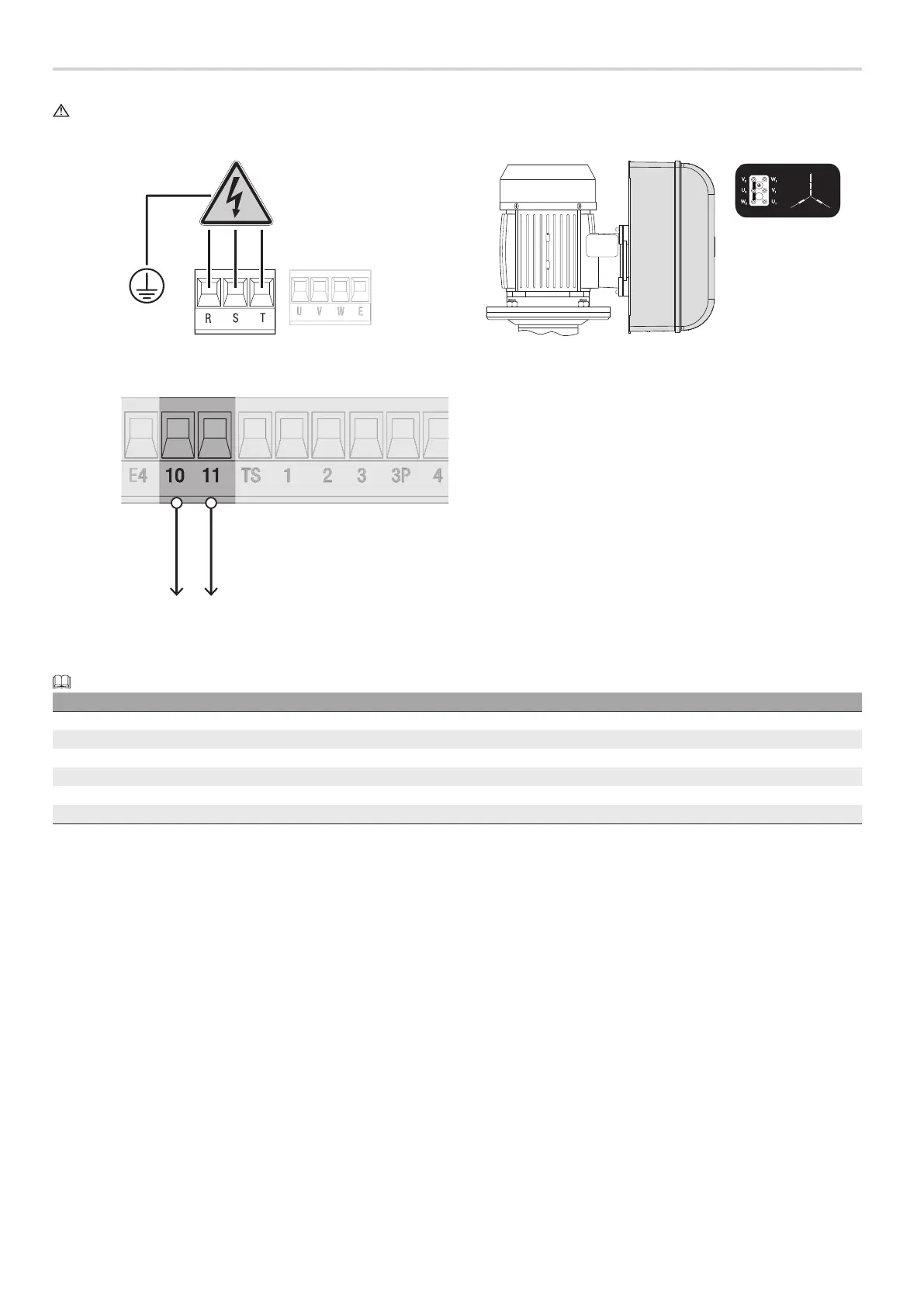

Connecting to the mains (400 V AC - three-phase - 50/60 Hz)
R
TS
N
Power supply output for accessories
The output normally delivers 24 V AC.
Maximum capacity of contacts
The total power of the outputs listed below must not exceed the maximum output power [Accessories]
Device Output Power supply (V) Maximum power (W)
Accessories 10 - 11 24 AC 45
Flashing beacon E - E1 230 AC 25
Flashing beacon E4 -10 24 AC 45
Additional light E - EX 230 AC 60
Operator status warning light (open) 11 - 5 24 AC 3
Operator status warning light (closed) 11 - 6 24 AC 3
